[Muzeum] Pioneer BDR-207EBK 2012r.

[czary2mary]

Pioneer BDR-207EBK = chipset Renesas R8J32740FP44 + OPU i mechanika Pioneer

[czary2mary]

Sprzęt jeszcze na jednym z pierwszych fw......

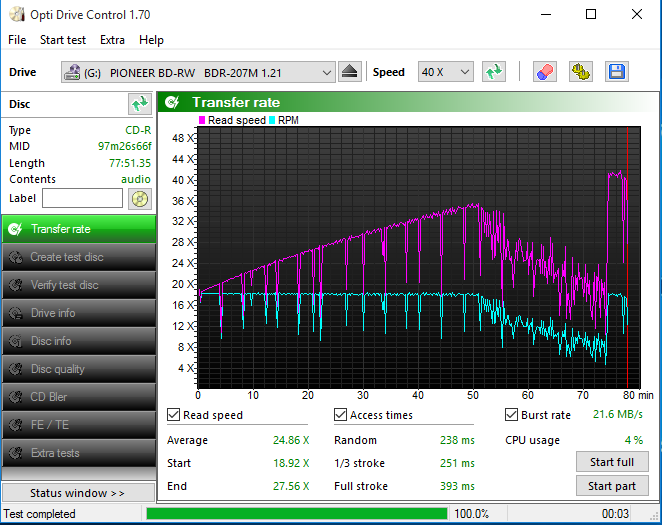

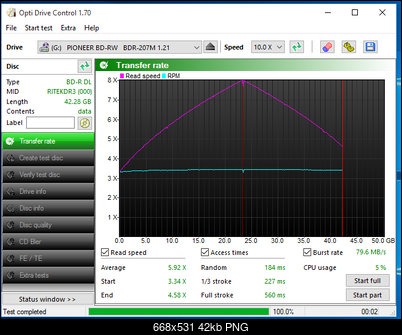

Odczyt CD-ROM\ CD-R\DVD-R \BD-R\BD-R DL

[czary2mary]

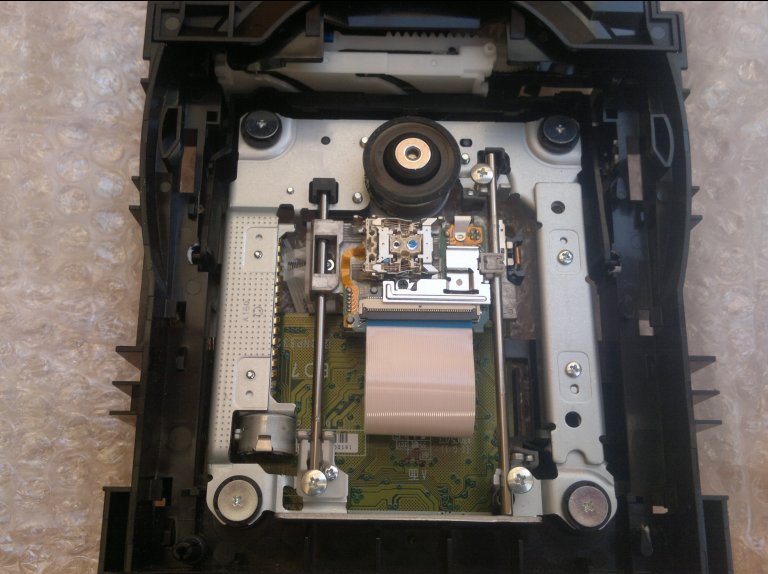

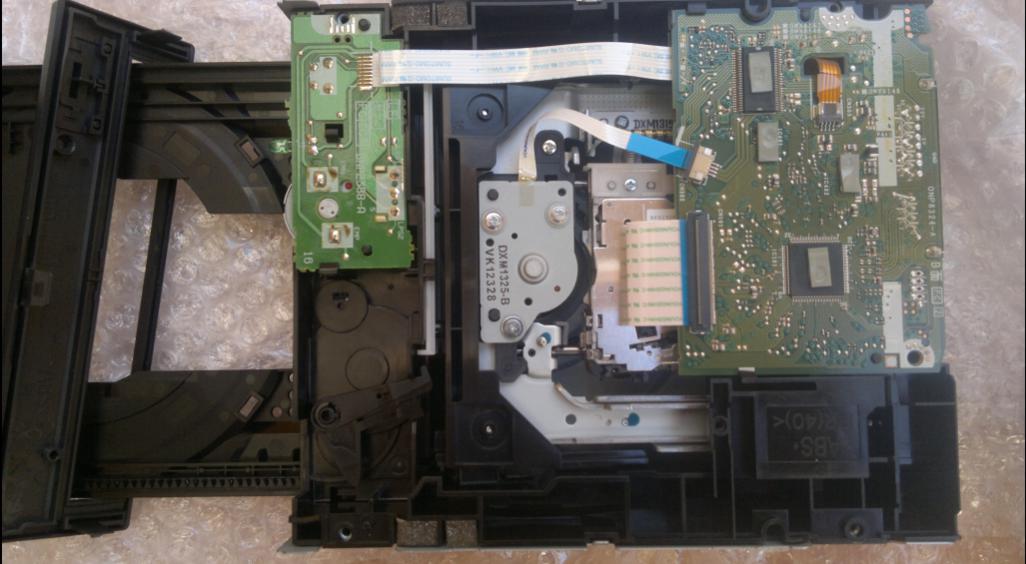

Pioneer BDR-207EBK rozebrany do rosołu.... jak to w Pionkach brak danych o modelu OPU\numerze seryjnym tylko dane do kalibracji CD\DVD\BluRay.....

[czary2mary]

That's BD-RE DL 50GB MID:TDKBLDWfa
Pioneer BDR-207EBK fw.1.60
Nero 2016 x2

Płyta już bardzo zniszczona ...ale Pioneek jeszcze dał rady poprawnie ją nagrać

[czary2mary]

Traxdata CD-R Pro-series Ritek 97m15s17f Made in China
Pioneer BDR-207EBK w.1.60
NERO 2016 x32

Po zmianie softu na najnowszy wyraźnie poprawił się odczyt CD ...

[czary2mary]

TDK BD-R DL 50GB MID:TDKBLD-RFB-000
Pioneer BDR-207EBK fw.1.60
Nero 2016 x2

Nośnik ostatni z cakebox więc trochę porysowany ..stąd też wynik słabszy...

log z zapisu:

9066-8197-613Z-W6PA-A930-KH1H-****-****

Windows 8 6.2
AMD64
Wow64Process
Nero Version: 17.0.5.0
Internal Version: 17,0,5,0

Recorder         : <PIONEER BD-RW   BDR-207M>     FW version: 1.60 - HA 1 TA 1 - 17.0.5.0
 Device bus      :  <>                            HA 1
 Host system bus :  <USB 2>
 Drive buffer    :  4000kB
 Bus Type        :  via Inquiry data
CD/DVD-ROM       : <HL-DT-ST DVDRAM GT30N    >    FW version: 1.01 - HA 1 TA 0 - 17.0.5.0
 Device bus      :  <>                            HA 1
 Host system bus :  <IDE>

=== Scsi-Device-Map ===
DiskPeripheral       : KINGSTON SV300S37A120G          iaStor Port 0 ID 0  DMA: On
DiskPeripheral       : WDC WD7500BPKX-75HPJT0          iaStor Port 0 ID 1  DMA: Off
CdRomPeripheral      : HL-DT-ST DVDRAM GT30N           iaStor Port 0 ID 2  DMA: Off

=== CDRom-Device-Map ===
HL-DT-ST DVDRAM GT30N      D:   CdRom0
PIONEER BD-RW   BDR-207M   F:   CdRom1
=======================

AutoRun : 0
Excluded drive IDs:
WriteBufferSize: 83886080 (0) Byte
BUFE           : 0
Physical memory     : 4090MB (4189108kB)
Free physical memory: 2537MB (2598028kB)
Memory in use       : 37 %
Uncached PFiles: 0x0
Global Bus Type: default (0)
Check supported media : Disabled (0)

1.7.2016
Kompilacja UDF
08:56:05	#1 Text 0 File SCSIPTICommands.cpp, Line 617
	LockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL

08:56:05	#2 Text 0 File Isodoc.cpp, Line 7687
	UDF document burn settings
	------------------------------------------
	Determine maximum speed : FALSE
	Simulate                : FALSE
	Write                   : TRUE
	Finalize CD             : TRUE
	Multisession            : FALSE
	Burning mode            : DAO
	Mode                    : 1
	UDF Mode                : pure
	UDF Options             : automatic
	UDF Revision            : 2.50
	UDF Partition Type      : physical

08:56:06	#3 PHASE 214 File dlgbrnst.cpp, Line 2095
	Generation of disc structures started

08:56:06	#4 Text 0 File compose.cpp, Line 970
	GenUDF2: 1 transfer items prepared.

08:56:06	#5 PHASE 215 File dlgbrnst.cpp, Line 2095
	Generation of disc structures completed

08:56:06	#6 Text 0 File Burncd.cpp, Line 4086
	Turn on Disc-At-Once, using CD-R/RW; DVD R/RW; DVD DL; DVD-RAM; BD-R/RE; BD DL; BDXL media

08:56:08	#7 Text 0 File DlgWaitCD.cpp, Line 335
	[F: BD-RW   BDR-207M] Total disc capacity:     24438784    47732MB
	User data to be written: 18213696    35573MB
	Free space on disc:		 24438784    47732MB

08:56:08	#8 Text 0 File DlgWaitCD.cpp, Line 347
	[F: BD-RW   BDR-207M] Write in overburning mode: NO (enabled: CD DVD)

08:56:08	#9 Text 0 File DlgWaitCD.cpp, Line 3127
	Recorder: PIONEER BD-RW   BDR-207M, Media type: BD-R (seq)

08:56:08	#10 Text 0 File DlgWaitCD.cpp, Line 537
	[F: BD-RW   BDR-207M] >>> Protocol of DlgWaitCD activities: <<<
	=========================================

08:56:08	#11 Text 0 File ThreadedTransferInterface.cpp, Line 879
	Setup items (after recorder preparation)
	 0: TRM_DATA_MODE1 ()
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 18213696 (18213696) = #18213696/4047:29.21
	    relocatable, disc pos for caching/writing not required/ required
	    -> TRM_DATA_MODE1, 2048, config 0, wanted index0 0 blocks, length 18213696 blocks [F: PIONEER BD-RW   BDR-207M]
	--------------------------------------------------------------

08:56:08	#12 Text 0 File ThreadedTransferInterface.cpp, Line 1095
	Prepare [F: PIONEER BD-RW   BDR-207M] for write in CUE-sheet-DAO
	DAO infos:
	==========
	 MCN: ""
	 TOCType: 0x00; Session Closed, disc fixated
	 Tracks 1 to 1:                                  Idx 0         Idx 1      Next Trk
	   1: TRM_DATA_MODE1, 2048/0x00, FilePos             0             0   37301649408, ISRC ""
	DAO layout:
	===========
	 ___Start_|____Track_|_Idx_|_CtrlAdr_|_____Size_|______NWA_|_RecDep__________
	        0 |  lead-in |   0 |    0x41 |        0 |        0 | 0x00
	        0 |        1 |   0 |    0x41 |        0 |        0 | 0x00
	        0 |        1 |   1 |    0x41 | 18213696 |        0 | 0x00
	 18213696 | lead-out |   1 |    0x41 |        0 |        0 | 0x00
	MediaType: BD-R DL

08:56:08	#13 Text 0 File SCSIPTICommands.cpp, Line 404
	SPTILockVolume - completed successfully for FSCTL_LOCK_VOLUME

08:56:08	#14 Text 0 File Burncd.cpp, Line 4984
	Caching options: cache CDRom or Network-Yes, small files-No (<64KB)

08:56:08	#15 PHASE 24 File dlgbrnst.cpp, Line 2095
	Caching of files started

08:56:09	#16 Text 0 File Burncd.cpp, Line 5106
	Cache writing successful.

08:56:09	#17 PHASE 25 File dlgbrnst.cpp, Line 2095
	Caching of files completed

08:56:09	#18 PHASE 36 File dlgbrnst.cpp, Line 2095
	Burn process started at 2x (8*990 KB/s)

08:56:09	#19 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 0 (relocatable, disc pos, no patch infos, orig at #0): write at #0

08:56:09	#20 Text 0 File Cdrdrv.cpp, Line 10845
	---- Disc Structure (BD): Disc Information on BD (00h) ----
	Media Type: 1, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 4098
	 --- Header ---
	  Disc Information Identifier: <DI>
	  Disc Information Format: 01 h
	  Number of DI Units/Aux Frames in each DI block: 8
	  Number of (recording) layer to which this DI Unit applies: 0
	  DI unit Sequence Number in DI Block: 0
	  Continuation flag: Next DI Unit is the start of a new set of parameters (0)
	  Number of DI bytes in use in this DI unit: 98
	 --- Body ---
	  Disc Type Identifier: <BDR>
	  Disc Size/Class/Version: 1
	  DI Unit Format dependent contents:
	   BD Structure: 34 (22 h):
	    2 recording layer (DL), BD-R
	   Hybrid Disc identifier/Channel bit length: 1 (1 h):
	    no DVD layer present, no CD layer present
	    channel bit length of 74,5 nm (25.0 GB max. per layer)
	   Push-Pull polarity flag bits: 00 h
	   Recorded mark polarity flag bits: 00 h
	   BCA descriptor: BCA-code present (1)
	   Maximum transfer rate needed by the application: 0 Mbit/s
	   Data zone allocation:
	    First Physical ADIP Address of the Data Zone of the related layer (FAA): 00020000 h (131072)
	    Last Physical ADIP Address of the Data Zone of the related layer (LAA):  00194E7E h (1658494)
	   Recording velocities:
	    Nominal Recording Velocity: 4.92 m/s (1EC h)
	    Maximum Recording Velocity: 4.92 m/s (64 h -> 100/100)=1
	    Minimum Recording Velocity: 4.92 m/s (64 h -> 100/100)=1
	   ...
	   22 01 00 00 01 00 00 00 - 00 00 00 00 00 02 00 00
	   00 19 4E 7E 01 EC 64 64 - 46 46 46 46 3C 3C 3C 3C
	   00 00 00 00 AA 60 6A 05 - 05 36 1C 80 90 20 20 20
	   20 20 20 20 20 30 30 30 - 30 70 00 70 00 70 00 70
	   00 68 00 68 00 68 00 68 - 00 68 00 68 00 68 00 68
	   00 90 90 C0 C0 C0 00 00
	 --- Trailer ---
	  Disc Manufacturer ID: 54 44 4B 42 4C 44 h <TDKBLD>
	  Media Type ID: 52 46 42 <RFB>
	  Time Stamp [m:y]: 0 : 0000 (00 00 h)
	  Product Revision Number: 0

08:56:09	#21 SPTI -1066 File SCSIPassThrough.cpp, Line 225
	CdRom1: SCSIStatus(x02) WinError(0) NeroError(-1066)
	CDB Data:   0xAC 00 00 00 00 00 00 00 00 64 00 00
	Sense Key:  0x05 (KEY_ILLEGAL_REQUEST)
	Sense Code: 0x24
	Sense Qual: 0x00
	Sense Area: 0x70 00 05 00 00 00 00 0E 00 00 00 00 24
	Buffer x084398c0: Len x648

08:56:09	#22 Text 0 File BD.cpp, Line 416
	Allocated spare area size on disc ca0000h
	BD: Start write address at LBA 0, Recording mode: unknown Recording Mode (0),
	    spare area allocation: default (no action) (0), Stream recording: NO (0); return code 0

08:56:09	#23 Text 0 File ThreadedTransfer.cpp, Line 275
	Pipe memory size 83836800

08:56:09	#24 Text 0 File CUDFTransferItem2.cpp, Line 713

	GenUDF2 FS Layout:
	=-=-=-=-=-=-=-=-=-=-
	    Sectors to be written: 18213696
	            Session Start: Sector 0
	         Volume Structure: Sector [0, 287] (288 Sectors)
	         Before Meta Data: Sector [288, 319] (32 Sectors)
	                Meta Data: Sector [320, 447] (128 Sectors)
	                     Data: Sector [448, 18213350] (18212903 Sectors)
	               After Data: Sector [18213351, 18213375] (25 Sectors)
	            Trailer Track: Sector [18213376, 18213695] (320 Sectors)

	GenUDF2 Parameters:
	=-=-=-=-=-=-=-=-=-=-
	                 PrepTime: 07-01-2016 08:56:06
	             UDF Revision: 2.50
	       UDF Partition Type: Physical
	         UDF Special Mode: BD_VIDEO
	         Bytes per Sector: 2048
	            Session Start: 0
	 Physical Partition Start: -1
	           Total Capacity: 24438784
	       Multi Session Mode: None
	                Disc Type: BD-R DL
	                 OS Class: 5
	                Volume ID: Nowy
	     Allow Unicode Labels: 0
	      Duplicate Meta Data: 0
	             MS Info File: 00000000
	        VMS Rollback File: 00000000
	        Create ISO bridge: 0
	         ECC Block Length: 32
	    Sparing Packet Length: 32
	     Allocation Unit Size: 32
	      Alignment Unit Size: 32
	            Make Writable: 0
	              Access Type: Read-only

10:06:49	#25 Text 0 File WriterStatus.cpp, Line 245
	<F: PIONEER BD-RW   BDR-207M> start writing Lead-Out at LBA 18213696 (115EB40h), length 0 blocks

10:07:04	#26 Text 0 File DVDPlusDualLayer.cpp, Line 1464
	SetDriveCaps: Set LAST LBA of layer 1 to 0

10:07:04	#27 PHASE 37 File dlgbrnst.cpp, Line 2095
	Burn process completed successfully at 2x (8*990 KB/s)

10:07:04	#28 Text 0 File SCSIPTICommands.cpp, Line 454
	SPTIDismountVolume - completed successfully for FSCTL_DISMOUNT_VOLUME

10:07:04	#29 Text 0 File Cdrdrv.cpp, Line 12297
	DriveLocker: UnLockVolume completed

10:07:04	#30 Text 0 File SCSIPTICommands.cpp, Line 617
	UnLockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL

[czary2mary]

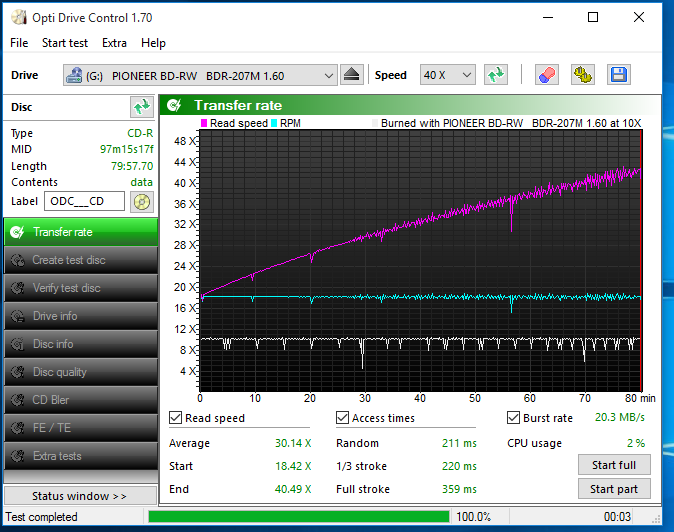

PlexDisc CD-R Printable Liquid Defense Plus Ritek 97m15s17f
Pioneer BDR-207EBK fw.1.60
Opti Drive Control x10

[czary2mary]

PlexDisc BD-R 25GB x6 Printable Liquid Defense Plus Inkjet MID : OTCBDR002
Pioneer BDR-207EBK fw.1.60
ImgBurn 2.5.8.0.x4

[damian1994]

Jest może jakieś narzędzie diagnostyczne do tych Pioneerów w stylu tych od plextora?

[czary2mary]

Napisany przez damian1994

Jest może jakieś narzędzie diagnostyczne do tych Pioneerów w stylu tych od plextora?

Nie ma i nie będzie ..

Tylko jest narzędziowy BD Drive Utility for BDR- 2207\207EBK (207M)
https://forum.cdrinfo.pl/attachments...ve-utility.zip

[damian1994]

A co jest lepsze, 207EBK czy B920SA?
