PlexDisc DVD-R Silver Top Prism MID : OPTODISCR016
Plextor PX-891SAF Plus fw.1.K5
Opti Drive Control x4

Załącznik 85150

Załącznik 85151

Załącznik 85152

Załącznik 85153

Załącznik 85154

Załącznik 85155

Załącznik 85156

Załącznik 85157

Załącznik 85158

Tylko, że hardware dalej na bardzo niskim poziomie, wsio sklepane na kolanie :( i jakie to premium? :(

Najprawdopodobniej to tylko modyfikacja OPU LiteSipce LO- DWH02B od modeli LiteOn iHAS 124 F \ Plextor PX-891SAF dla wolniejszego zapisu CD x8 i DVD x4 ..

Ale napęd Plextor PX-891SAF Plus ( i pewnie LiteOn DH16AFSH Premium ) ma jednak inne OPU i oprogramowanie jak LiteOn iHAS 124 F \ Plextor PX-891SAF ....

Inny, ale szału nie ma...

Cytat:

Napisany przez seku (Post 1372160)

czyli co crosflash nie zrobimy z iHAS 124 F ?

Nie ma szans :( ...laser inny jak w LiteOn iHAS 124 F \ Plextor PX-891SAF

czyli co crosflash nie zrobimy z iHAS 124 F ?

TDK DVD-R MID:CMC MAG AM3 CMC Made in Taiwan
Plextor PX-891SAF Plus fw.1.K5
ImgBurn 2.5.8.0 x4

log:

Kod:

I 15:37:00 ImgBurn Version 2.5.8.0 started!

I 15:37:00 Microsoft Windows 8 Professional x64 Edition (6.2, Build 9200)

I 15:37:00 Total Physical Memory: 4*189*108 KiB  -  Available: 2*266*992 KiB

I 15:37:00 Initialising ElbyCDIO...

I 15:37:00 ELBYCDIO.DLL - Elaborate Bytes CDRTools - ElbyCDIO DLL - Version 6.1.9.1

I 15:37:00 Searching for SCSI / ATAPI devices...

I 15:37:00 -> Drive 1 - Info: HL-DT-ST DVDRAM GT30N 1.01 (D:) (ATAPI)

I 15:37:01 -> Drive 2 - Info: PLEXTOR PX-891SAF PLUS 1.K5 (F:) (USB)

I 15:37:01 Found 2 DVD***177;RW/RAMs!

I 15:38:06 Operation Started!

I 15:38:06 Building Image Tree...

I 15:38:08 Corrected file system selection for DivX Video disc.

I 15:38:09 Checking Directory Depth...

I 15:38:09 Calculating Totals...

I 15:38:09 Preparing Image...

I 15:38:09 Checking Path Length...

I 15:38:09 Contents: 5 Files, 0 Folders

I 15:38:09 Content Type: DivX Video

I 15:38:10 Data Type: MODE1/2048

I 15:38:10 File System(s): ISO9660, Joliet

I 15:38:10 Volume Label: f10

I 15:38:10 Size: 4*407*823*132 bytes

I 15:38:10 Sectors: 2*152*259

I 15:38:10 Image Size: 4*407*885*824 bytes

I 15:38:10 Image Sectors: 2*152*288

I 15:38:11 Operation Successfully Completed! - Duration: 00:00:05

I 15:38:11 Operation Started!

I 15:38:11 Source File: -==/\/[BUILD IMAGE]\/\==-

I 15:38:11 Source File Sectors: 2*152*288 (MODE1/2048)

I 15:38:11 Source File Size: 4*407*885*824 bytes

I 15:38:11 Source File Volume Identifier: f10

I 15:38:11 Source File Volume Set Identifier: NIEZDEFINIOWANY

I 15:38:11 Source File Application Identifier: ImgBurn v2.5.8.0 - The Ultimate Image Burner!

I 15:38:11 Source File Implementation Identifier: ImgBurn v2.5.8.0

I 15:38:11 Source File File System(s): ISO9660; Joliet

I 15:38:11 Destination Device: [0:0:0] PLEXTOR PX-891SAF PLUS 1.K5 (F:) (USB)

I 15:38:11 Destination Media Type: DVD-R (Disc ID: CMC MAG. AM3)

I 15:38:11 Destination Media Supported Write Speeds: 4x; 6x; 8x; 12x; 16x

I 15:38:11 Destination Media Sectors: 2*297*888

I 15:38:11 Write Mode: DVD

I 15:38:11 Write Type: DAO

I 15:38:11 Write Speed: 4x

I 15:38:11 Link Size: Auto

I 15:38:11 Lock Volume: Yes

I 15:38:11 Test Mode: No

I 15:38:11 OPC: Yes

I 15:38:11 BURN-Proof: Enabled

I 15:38:12 Write Speed Successfully Set! - Effective: 5*540 KB/s (4x)

I 15:38:25 Filling Buffer... (502 MiB)

I 15:38:31 Writing LeadIn...

I 15:38:54 Writing Session 1 of 1... (1 Track, LBA: 0 - 2152287)

I 15:38:54 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 2152287)

I 15:52:13 Synchronising Cache...

I 15:52:32 Exporting Graph Data...

I 15:52:32 Graph Data File: C:\Users\czary2mary\AppData\Roaming\ImgBurn\Graph Data Files\PLEXTOR_PX-891SAF_PLUS_1.K5_23-LISTOPAD-2016_15-38_CMC_MAG._AM3_4x.ibg

I 15:52:32 Export Successfully Completed!

I 15:52:32 Operation Successfully Completed! - Duration: 00:14:20

I 15:52:32 Average Write Rate: 5*387 KiB/s (4.0x) - Maximum Write Rate: 5*504 KiB/s (4.1x)

Załącznik 83938

Załącznik 83939

Załącznik 83940

Załącznik 83941

Załącznik 83942

Załącznik 83943

Załącznik 83944

Załącznik 83945

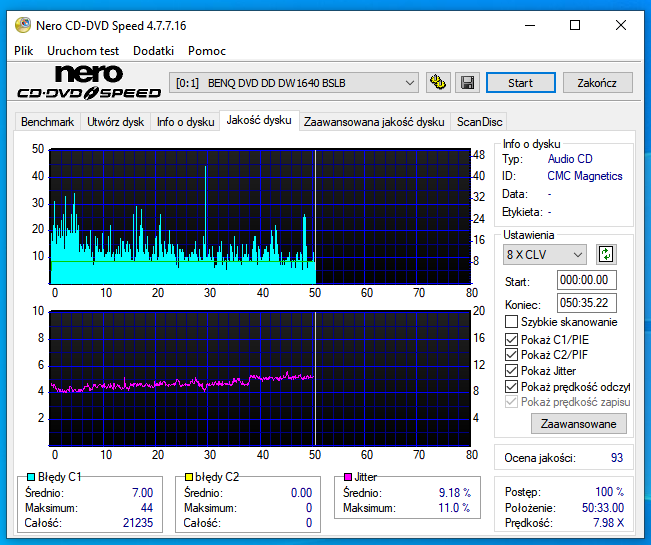

Verbatim CD-R CMC 97m26s66f Made in China
Plextor PX-891SAF Plus fw.1.K5
ImgBurn 2.5.8.0 x8

log:

Kod:

I 15:14:54 ImgBurn Version 2.5.8.0 started!

I 15:14:54 Microsoft Windows 8 Professional x64 Edition (6.2, Build 9200)

I 15:14:54 Total Physical Memory: 4*189*108 KiB  -  Available: 2*353*272 KiB

I 15:14:54 Initialising ElbyCDIO...

I 15:14:54 ELBYCDIO.DLL - Elaborate Bytes CDRTools - ElbyCDIO DLL - Version 6.1.9.1

I 15:14:55 Searching for SCSI / ATAPI devices...

I 15:14:55 -> Drive 1 - Info: HL-DT-ST DVDRAM GT30N 1.01 (D:) (ATAPI)

I 15:14:55 -> Drive 2 - Info: PLEXTOR PX-891SAF PLUS 1.K5 (F:) (USB)

I 15:14:55 Found 2 DVD***177;RW/RAMs!

I 15:15:25 Operation Started!

I 15:15:25 Source File: E:\Pobieranie\MM\sexy.shades.of.chil.dts\Sexy Shades Of Chill (2015) DTS 5.1\CD2\Sexy Shades Of Chill CD2 (2015).cue

I 15:15:25 Source File Sectors: 206*199 (AUDIO/2352)

I 15:15:25 Source File Size: 484*980*048 bytes

I 15:15:25 Source File Volume Identifier: VA - Sexy Shades Of Chill

I 15:15:25 Source File File System(s): None

I 15:15:25 Destination Device: [0:0:0] PLEXTOR PX-891SAF PLUS 1.K5 (F:) (USB)

I 15:15:25 Destination Media Type: CD-R (Disc ID: 97m26s66f, CMC Magnetics Corp.)

I 15:15:25 Destination Media Supported Write Speeds: 8x; 16x; 24x; 32x; 40x; 48x

I 15:15:25 Destination Media Sectors: 359*844

I 15:15:25 Write Mode: CD

I 15:15:25 Write Type: SAO

I 15:15:25 Write Speed: 8x

I 15:15:25 Lock Volume: Yes

I 15:15:25 Test Mode: No

I 15:15:25 OPC: Yes

I 15:15:25 BURN-Proof: Enabled

I 15:15:25 Write Speed Successfully Set! - Effective: 1*412 KB/s (8x)

I 15:15:33 Filling Buffer... (502 MiB)

I 15:15:42 Writing LeadIn... (CD-TEXT)

I 15:16:01 Writing Session 1 of 1... (9 Tracks, LBA: 0 - 206198)

I 15:16:01 Writing Track 1 of 9... (AUDIO/2352, WAVE, LBA: 0 - 21679)

I 15:16:37 Writing Track 2 of 9... (AUDIO/2352, WAVE, LBA: 21680 - 53390)

I 15:17:30 Writing Track 3 of 9... (AUDIO/2352, WAVE, LBA: 53391 - 75516)

I 15:18:07 Writing Track 4 of 9... (AUDIO/2352, WAVE, LBA: 75517 - 95323)

I 15:18:40 Writing Track 5 of 9... (AUDIO/2352, WAVE, LBA: 95324 - 119478)

I 15:19:20 Writing Track 6 of 9... (AUDIO/2352, WAVE, LBA: 119479 - 139732)

I 15:19:54 Writing Track 7 of 9... (AUDIO/2352, WAVE, LBA: 139733 - 160812)

I 15:20:29 Writing Track 8 of 9... (AUDIO/2352, WAVE, LBA: 160813 - 182870)

I 15:21:05 Writing Track 9 of 9... (AUDIO/2352, WAVE, LBA: 182871 - 206198)

I 15:21:44 Synchronising Cache...

I 15:22:01 Exporting Graph Data...

I 15:22:01 Graph Data File: C:\Users\czary2mary\AppData\Roaming\ImgBurn\Graph Data Files\PLEXTOR_PX-891SAF_PLUS_1.K5_23-LISTOPAD-2016_15-15_97m26s66f_8x.ibg

I 15:22:01 Export Successfully Completed!

I 15:22:01 Operation Successfully Completed! - Duration: 00:06:35

I 15:22:01 Average Write Rate: 1*384 KiB/s (7.0x) - Maximum Write Rate: 1*401 KiB/s (7.1x)

Załącznik 83921

Załącznik 83922

Załącznik 83923

Załącznik 83924

Załącznik 83925

Załącznik 83926

Załącznik 83927

Załącznik 83928

Załącznik 83929

Plextor PX-891SAF Plus

Plextor PX-891SAF Plus -najnowsza wersja konstrukcji PLDS-DH24 AFSH umożliwiająca zapis CD-R z przekładnią x8 a DVD x4 w wersji VinPower sygnowany marką Plextor .
Hardware =chipset MediaTek -MT1862N + OPU LiteSipce LO- DWH02BV

Załącznik 83916

Załącznik 83917

Załącznik 83918

Załącznik 83919

Załącznik 83920
