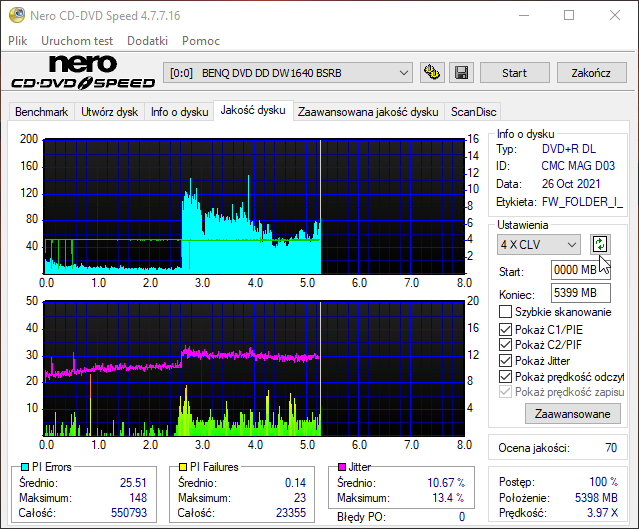

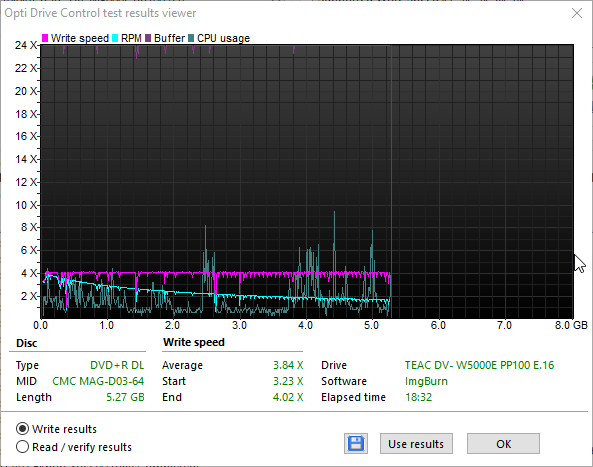

HP DVD+R DL x8 MID: CMCMAGD03.
Teac DV-W5000E PP 100 fw.E.16
ImgBurn 2.5.8.0 x4

Załącznik 194684

Załącznik 194685

Załącznik 194686

Załącznik 194687

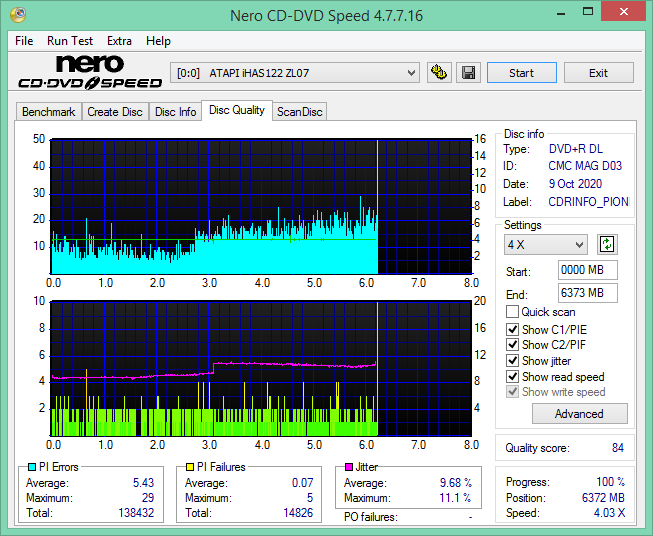

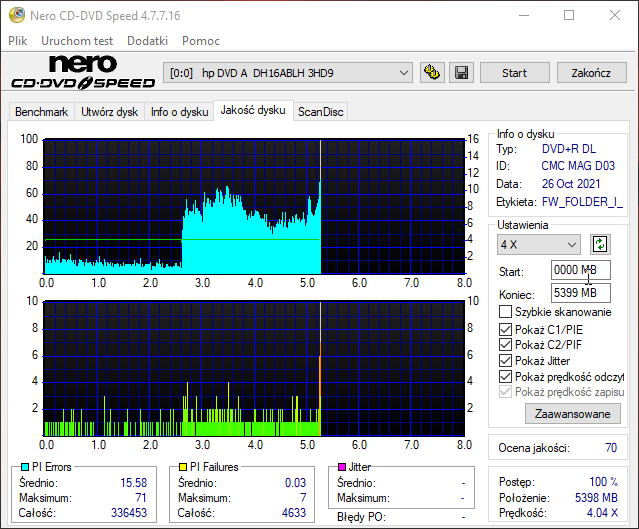

HP DVD+R DL x8 MID: CMCMAGD03.
Teac DV-W5000E PP 100 fw.E.16
ImgBurn 2.5.8.0 x4

Załącznik 183875

Załącznik 183876

Załącznik 183877

Załącznik 183878

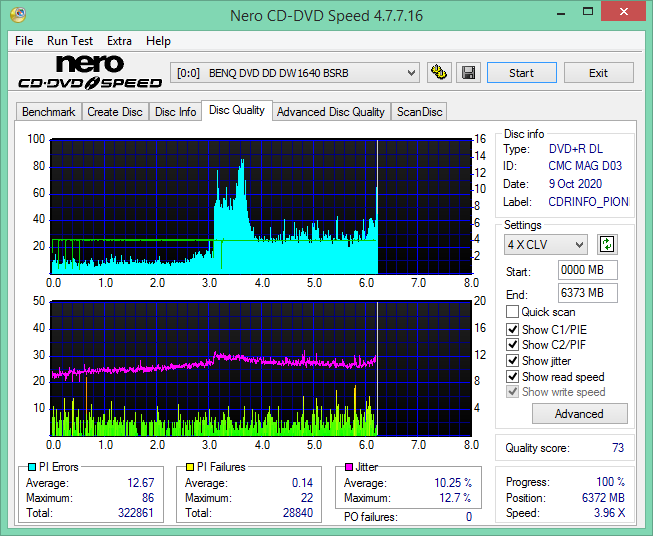

Maxell DVD+R DL Printable MID :CMCMAGD03
Teac DV-W5000E fw.1.0Q
ImgBurn 2.5.8.0 x2.4

Załącznik 172144

Załącznik 172145

Załącznik 172146

Maxell DVD+R DL Printable MID :CMCMAGD03
Teac DV-W5000E PP100 fw.E.16
ImgBurn 2.5.8.0 x2.4

Załącznik 170347

Załącznik 170348

Załącznik 170349

Załącznik 170350

Cytat:

Napisany przez elflorek (Post 1442514)

Mam DV-W5000E firmware 1.0B. Jest to nisza wersja 1.0Q? Ewentualnie jak zaktualizować?

DVRTool i wersje firmware 1.0Q przygotowaną dla instalacji przez ten program

Mam DV-W5000E firmware 1.0B. Jest to nisza wersja 1.0Q? Ewentualnie jak zaktualizować?

CMC Pro-Primera CD-R TuffCoat 97m24s01f
Teac DV-W5000E PP100 fw.E.16
ImgBurn 2.5.8.0 x10

Załącznik 158538

Załącznik 158539

Załącznik 158540

Załącznik 158541

Załącznik 158542

Załącznik 158543

Cytat:

Napisany przez bilditup1 (Post 1436624)

Aha, thanks for the explanation.

Oh? But haven't you been testing them in this thread? I know most of the tests are for the PP100 models but not all of them, right?

Reading appears to be OK. Every single IDE-USB bridge I have come across (including the one in the enclosure, and the one that came with the drive) is the same Cypress AT2 model. They have not had issues with reading. But, I haven't really tried burning (just the one that I've already posted) or quality scans with it yet. Usually I use Oxford 912 IDE-FireWire bridges, but enclosures don't usually come with these. More testing necessary to figure out if these Cypress ones have issues--unless one of you already knows...? I brought a computer with a native IDE controller out of storage recently, as well as an extra Oxford firewire bridge, so I'll be trying those as well. Will report back.

I mainly tested Epson PP 100 models which do not work properly and perfectly on every computer hardware.

Check on another program like Opti Drive Control test recording - the program has problems with test recording on NEC \ Renesas chipsets, hence this problem with write speed.

Cytat:

Napisany przez czary2mary (Post 1436511)

This G.1A firmware is for Siemens devices.
H.0P firmware is for Epson equipment.

Aha, thanks for the explanation.

Cytat:

Napisany przez czary2mary (Post 1436511)

These models for recorders may not work properly on which computer hardware or programs.

Oh? But haven't you been testing them in this thread? I know most of the tests are for the PP100 models but not all of them, right?

Cytat:

Napisany przez czary2mary (Post 1436511)

You can see that there is a problem with communication and data transfer when saving.
Maybe it doesn't work properly via USB housing?
And what about the reading on this drive connection?

Reading appears to be OK. Every single IDE-USB bridge I have come across (including the one in the enclosure, and the one that came with the drive) is the same Cypress AT2 model. They have not had issues with reading. But, I haven't really tried burning (just the one that I've already posted) or quality scans with it yet. Usually I use Oxford 912 IDE-FireWire bridges, but enclosures don't usually come with these. More testing necessary to figure out if these Cypress ones have issues--unless one of you already knows...? I brought a computer with a native IDE controller out of storage recently, as well as an extra Oxford firewire bridge, so I'll be trying those as well. Will report back.

Cytat:

Napisany przez bilditup1 (Post 1436504)

I very recently picked up one of the medical drives, this one apparently from a Siemens Acuson S2000 ultrasound, for what I think is a pretty fair price (serial redacted).

Even came with an IDE-USB bridge (Cypress chipset as usual) and a strange DB9-to-Molex power connector, which I'm assuming is used internally in the ultrasound machine.

Front is as plain as they come, no markings at all, and even eject button is tiny. (Put in enclosure as it's too rare to just use naked, haha.)

Came with firmware G.1A (attached w/kernel, see bottom of post--dumped using DVRtool 1.02) which I haven't seen attested to anywhere (I'm assuming it's one right before H.0P).

So far only have made one test burn, with mediocre results (though this media has mainly been mediocre-to-ok for me, will be posting more about it later/elsewhere).

CMC MAG. AM3
WinValue DVD-R 16x, branded
Made in Taiwan
Purchased early 2019 at MicroCenter
ODC 8x (eff. ~1.8x)
Other notes: cheapest DVD SL media I've ever bought at $7 US/50pk.

Reads OK...

but, well...

]

...which is something I very rarely/don't think I've ever seen, except when there was a problem with the disc scan itself (and I've never had such a problem with this drive). Will try to run it through other ones (which I usually do, was in a rush this time) but would be surprised if it changed much.

Also did not do so well at secure cd ripping (fast, actually quite fast, but a few problem sectors that ripped fine with other drives) but apparently this is typical of drives with an NEC chipset :/

Any case, will try to do some more testing soon. I'm curious about trying 1.0Q, H.0P, and possibly the Pioneer FWs with this drive (was actually wondering why this is usually done with 216, rather than 117 like in the above screenshot) though the ones specific to the DV-W5000 don't actually seem to be up anywhere, not even here, unless I'm missing something...

This G.1A firmware is for Siemens devices.
H.0P firmware is for Epson equipment.

These models for recorders may not work properly on which computer hardware or programs.
You can see that there is a problem with communication and data transfer when saving.
Maybe it doesn't work properly via USB housing?
And what about the reading on this drive connection?

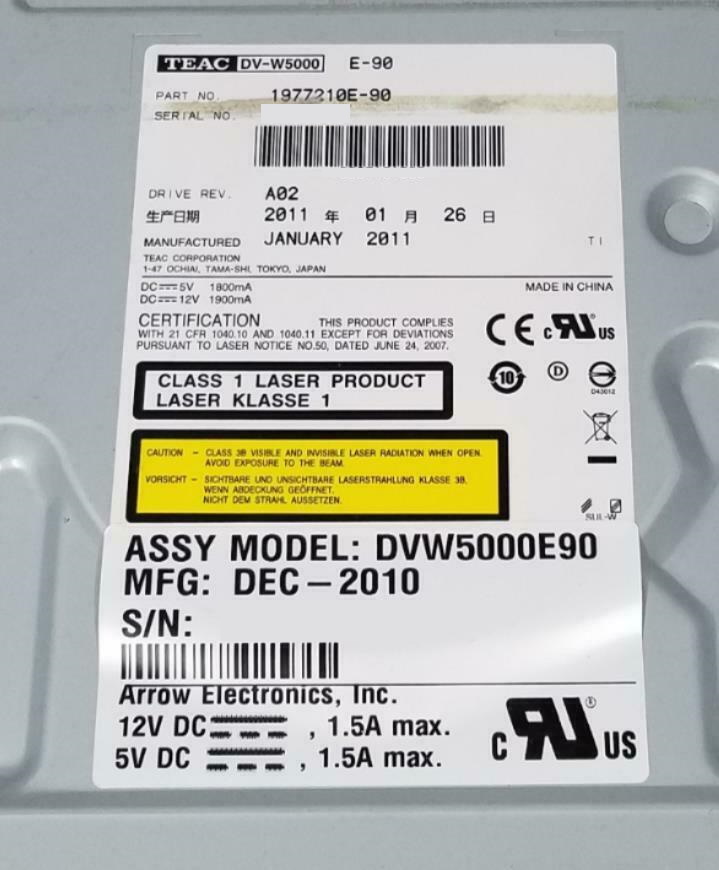

I very recently picked up one of the medical drives, this one apparently from a Siemens Acuson S2000 ultrasound, for what I think is a pretty fair price (serial redacted).

Załącznik 157726

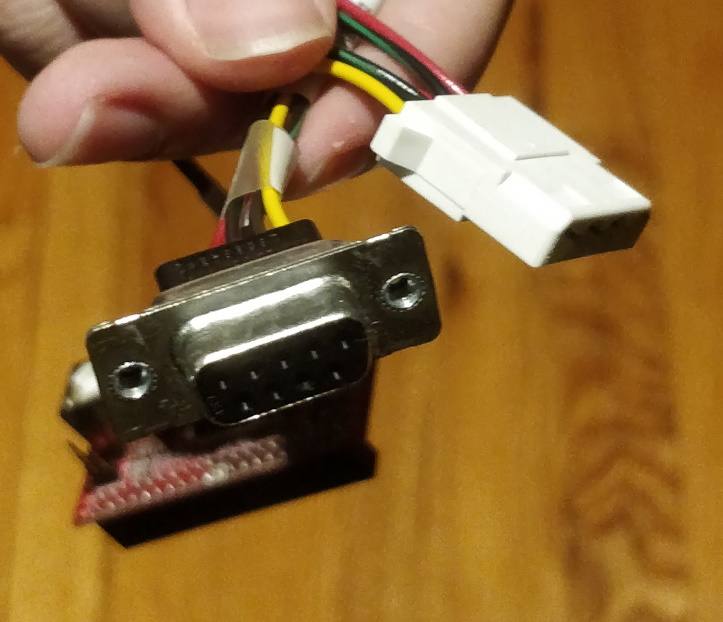

Even came with an IDE-USB bridge (Cypress chipset as usual) and a strange DB9-to-Molex power connector, which I'm assuming is used internally in the ultrasound machine.

Załącznik 157725

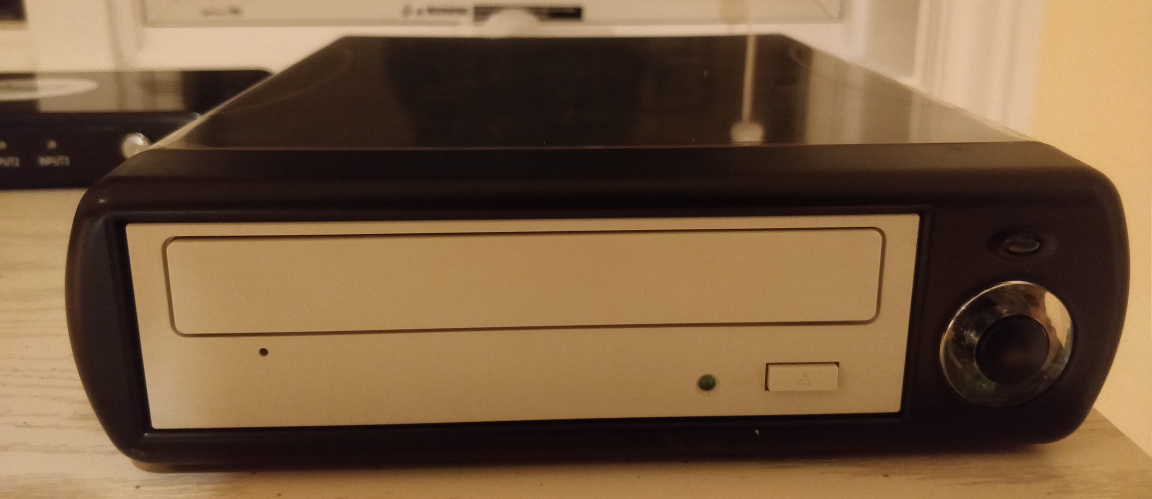

Front is as plain as they come, no markings at all, and even eject button is tiny. (Put in enclosure as it's too rare to just use naked, haha.)

Załącznik 157724

Came with firmware G.1A (attached w/kernel, see bottom of post--dumped using DVRtool 1.02) which I haven't seen attested to anywhere (I'm assuming it's one right before H.0P).

Załącznik 157727 Załącznik 157728
(serial in above screenshot is redacted)

So far only have made one test burn, with mediocre results (though this media has mainly been mediocre-to-ok for me, will be posting more about it later/elsewhere).

CMC MAG. AM3
WinValue DVD-R 16x, branded
Made in Taiwan
Purchased early 2019 at MicroCenter
ODC 8x (eff. ~1.8x)
Other notes: cheapest DVD SL media I've ever bought at $7 US/50pk.

Załącznik 157729

Reads OK...

Załącznik 157730

but, well...

Załącznik 157731

...which is something I very rarely/don't think I've ever seen, except when there was a problem with the disc scan itself (and I've never had such a problem with this drive). Will try to run it through other ones (which I usually do, was in a rush this time) but would be surprised if it changed much.

Also did not do so well at secure cd ripping (fast, actually quite fast, but a few problem sectors that ripped fine with other drives) but apparently this is typical of drives with an NEC chipset :/

Any case, will try to do some more testing soon. I'm curious about trying 1.0Q, H.0P, and possibly the Pioneer FWs with this drive (was actually wondering why this is usually done with 216, rather than 117 like in the above screenshot) though the ones specific to the DV-W5000 don't actually seem to be up anywhere, not even here, unless I'm missing something...

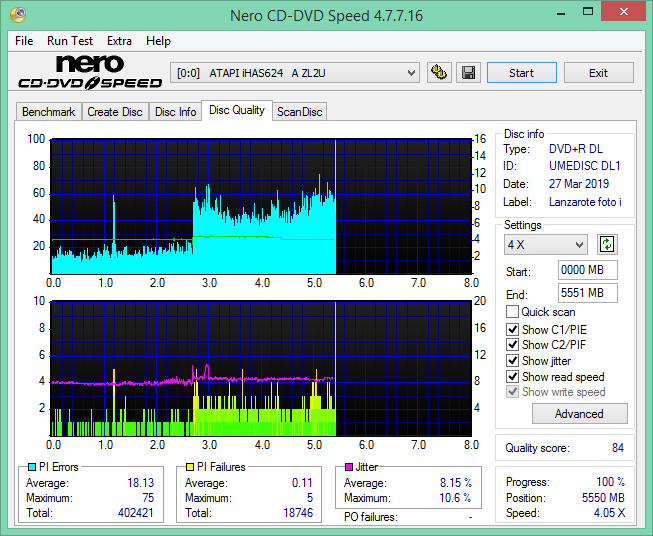

Platinum DVD+R DL MID:UMEDISC DL1 UmeDisc China
Teac DV-W5000E PP100 fw.E.16
ImgBurn 2.5.8.0 x2.4

Załącznik 136231

Załącznik 136232

Załącznik 136233

Załącznik 136234

Platinum DVD+R DL MID:UMEDISC DL1 UmeDisc China
Teac DV-W5000E fw.1.0Q
ImgBurn 2.5.8.0 x2.4

Załącznik 117570

Załącznik 117571

Załącznik 117572

Załącznik 117573

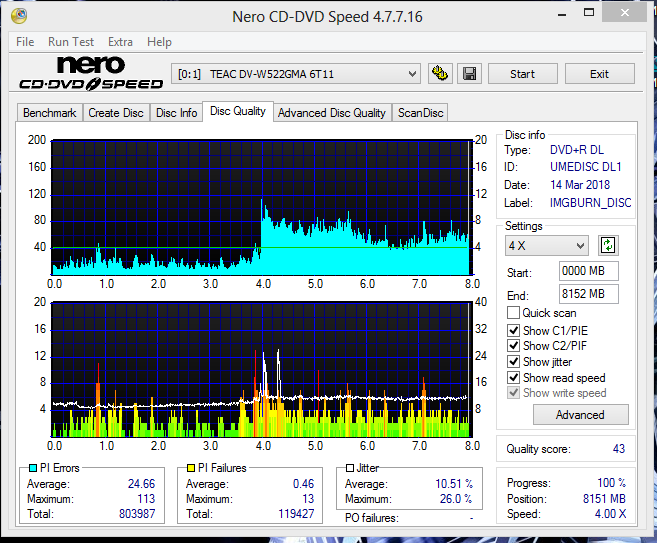

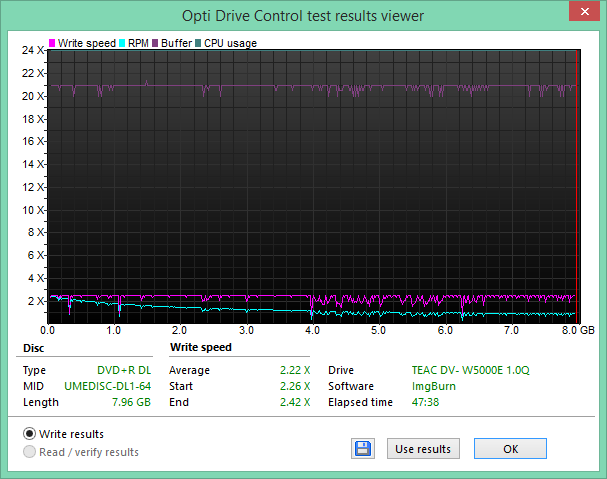

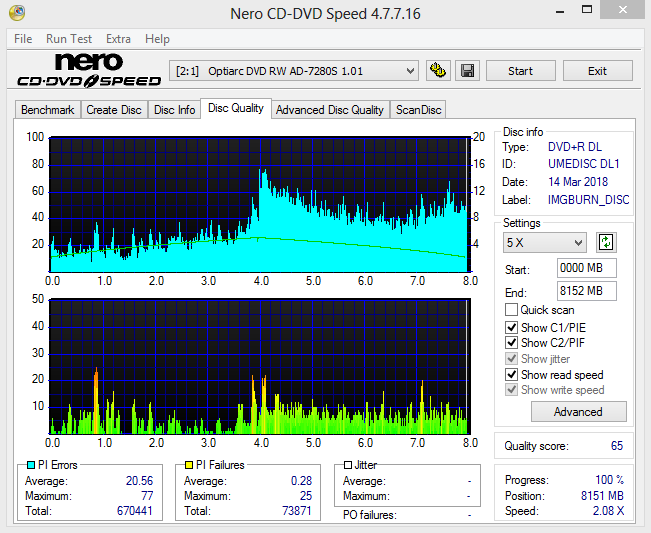

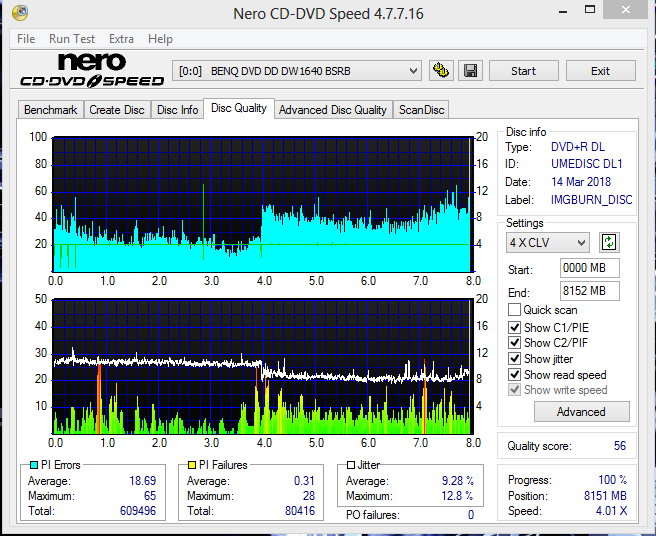

Platinum DVD+R DL MID:UMEDISC DL1 UmeDisc China
Teac DV-W5000E fw.1.0Q
ImgBurn 2.5.8.0 x2.4

Załącznik 116930

Załącznik 116931

Załącznik 116932

Załącznik 116933
