[Muzeum] Panasonic SW-5583 2007r. - Strona 2

**jadburner** · 25.04.2017, 05:13

Verbatim 8x DVD+R DL
Branded
MKM 003 (Made in UAE)
SW-5583 (1049)
@ 6x --> 2.4x

Panasonic SW-5583 2007r.-createdisc_6x.png

Panasonic SW-5583 2007r.-dq_6x_dw1620.png

Panasonic SW-5583 2007r.-dq_6x_dw1640.png

Panasonic SW-5583 2007r.-dq_6x_ad-7240s.png

Panasonic SW-5583 2007r.-dq_6x_ad-7280s.png

Panasonic SW-5583 2007r.-dq_6x_ihas324-.png

Panasonic SW-5583 2007r.-dq_6x_ihas524-b.png

Panasonic SW-5583 2007r.-dq_6x_gh24nsd0.png

**jadburner** · 25.04.2017, 05:16

Verbatim 8x DVD+R DL
Branded
MKM 003 (Made in UAE)
SW-5583 (1049)
@ 8x --> 4x

Panasonic SW-5583 2007r.-createdisc_8x.png

Panasonic SW-5583 2007r.-dq_8x_dw1620.png

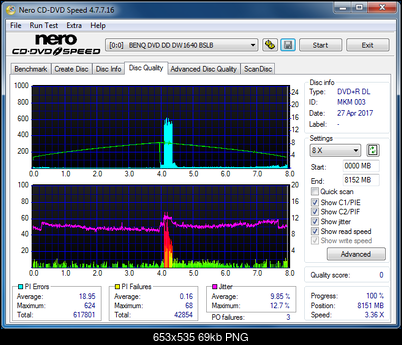

Panasonic SW-5583 2007r.-dq_8x_dw1640.png

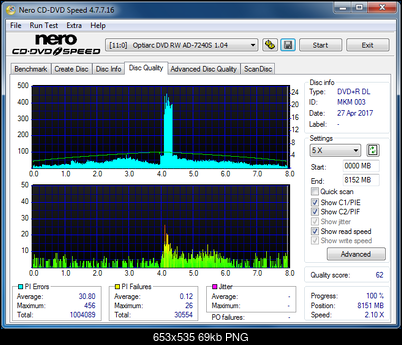

Panasonic SW-5583 2007r.-dq_8x_ad-7240s.png

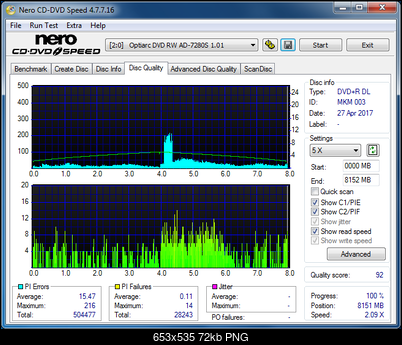

Panasonic SW-5583 2007r.-dq_8x_ad-7280s.png

Panasonic SW-5583 2007r.-dq_8x_ihas324-.png

Panasonic SW-5583 2007r.-dq_8x_ihas524-b.png

Panasonic SW-5583 2007r.-dq_8x_gh24nsd0.png

**czary2mary** · 25.04.2017, 15:25

Cytat:

Napisany przez jadburner

Verbatim 8x DVD+R DL
Branded
MKM 003 (Made in UAE)
SW-5583 (1049)
@ 6x --> 2.4x

Cytat:

Napisany przez jadburner

Verbatim 8x DVD+R DL
Branded
MKM 003 (Made in UAE)
SW-5583 (1049)
@ 8x --> 4x

Maybe MEI \ Panasonic has overdone the specification?

Panasonic SW-5583 2007r.-2017-04-25_14-19-40.png

Panasonic SW-5583 2007r.-2017-04-25_14-17-51.png

Panasonic SW-5583 2007r.-2017-04-25_14-24-17.png

Panasonic SW-5583 2007r.-2017-04-25_14-48-07.png

Panasonic SW-5583 2007r.-2017-04-25_14-31-01.png

Panasonic SW-5583 2007r.-2017-04-25_14-42-11.png

**jadburner** · 25.04.2017, 16:25

Cytat:

Napisany przez czary2mary

Maybe MEI \ Panasonic has overdone the specification?

Thanks, czary2mary. You're right - they clearly overstated it.

**jadburner** · 28.04.2017, 06:02

Sony 6x BD-R
White inkjet hub printable
SONY-NN3 (Made in Taiwan)
SW-5583 (1049)
OPC on
@ 2x

Panasonic SW-5583 2007r.-createdisc_2x_opcon.png

Panasonic SW-5583 2007r.-trt_2x_opcon.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcon_ihbs112-gen1.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcon_ihbs112-gen2.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcon_ihbs312.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcon_wh16ns48dup.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcon_wh16ns58dup.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcon_px-lb950sa.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcon_se-506cb.png

Panasonic SW-5583 2007r.-jitter_2x_opcon_ihbs112-gen1.png

Panasonic SW-5583 2007r.-jitter_2x_opcon_ihbs112-gen2.png

Panasonic SW-5583 2007r.-jitter_2x_opcon_ihbs312.png

Panasonic SW-5583 2007r.-jitter_2x_opcon_px-lb950sa.png

**jadburner** · 28.04.2017, 06:07

Sony 6x BD-R
White inkjet hub printable
SONY-NN3 (Made in Taiwan)
SW-5583 (1049)
OPC on
@ 4x

Panasonic SW-5583 2007r.-createdisc_4x_opcon.png

Panasonic SW-5583 2007r.-trt_4x_opcon.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcon_ihbs112-gen1.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcon_ihbs112-gen2.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcon_ihbs312.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcon_wh16ns48dup.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcon_wh16ns58dup.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcon_px-lb950sa.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcon_se-506cb.png

Panasonic SW-5583 2007r.-jitter_4x_opcon_ihbs112-gen1.png

Panasonic SW-5583 2007r.-jitter_4x_opcon_ihbs112-gen2.png

Panasonic SW-5583 2007r.-jitter_4x_opcon_ihbs312.png

Panasonic SW-5583 2007r.-jitter_4x_opcon_px-lb950sa.png

**jadburner** · 28.04.2017, 06:10

Sony 6x BD-R
White inkjet hub printable
SONY-NN3 (Made in Taiwan)
SW-5583 (1049)
OPC off
@ 2x

Panasonic SW-5583 2007r.-createdisc_2x_opcoff.png

Panasonic SW-5583 2007r.-trt_2x_opcoff.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcoff_ihbs112-gen1.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcoff_ihbs112-gen2.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcoff_ihbs312.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcoff_wh16ns48dup.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcoff_wh16ns58dup.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcoff_px-lb950sa.png

Panasonic SW-5583 2007r.-dq_odc170_2x_opcoff_se-506cb.png

Panasonic SW-5583 2007r.-jitter_2x_opcoff_ihbs112-gen1.png

Panasonic SW-5583 2007r.-jitter_2x_opcoff_ihbs112-gen2.png

Panasonic SW-5583 2007r.-jitter_2x_opcoff_ihbs312.png

Panasonic SW-5583 2007r.-jitter_2x_opcoff_px-lb950sa.png

**jadburner** · 28.04.2017, 06:13

Sony 6x BD-R
White inkjet hub printable
SONY-NN3 (Made in Taiwan)
SW-5583 (1049)
OPC off
@ 4x

Panasonic SW-5583 2007r.-createdisc_4x_opcoff.png

Panasonic SW-5583 2007r.-trt_4x_opcoff.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcoff_ihbs112-gen1.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcoff_ihbs112-gen2.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcoff_ihbs312.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcoff_wh16ns48dup.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcoff_wh16ns58dup.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcoff_px-lb950sa.png

Panasonic SW-5583 2007r.-dq_odc170_4x_opcoff_se-506cb.png

Panasonic SW-5583 2007r.-jitter_4x_opcoff_ihbs112-gen1.png

Panasonic SW-5583 2007r.-jitter_4x_opcoff_ihbs112-gen2.png

Panasonic SW-5583 2007r.-jitter_4x_opcoff_ihbs312.png

Panasonic SW-5583 2007r.-jitter_4x_opcoff_px-lb950sa.png

**jadburner** · 01.05.2017, 05:38

Finally found my extra SW-5583.

Verbatim 8x DVD+R DL
Branded
MKM 003 (Made in UAE)
SW-5583 (1.03)
@ 2.4x

Panasonic SW-5583 2007r.-createdisc_2.4x.png

Panasonic SW-5583 2007r.-dq_2.4x_dw1620.png

Panasonic SW-5583 2007r.-dq_2.4x_dw1640.png

Panasonic SW-5583 2007r.-dq_2.4x_ad-7240s.png

Panasonic SW-5583 2007r.-dq_2.4x_ad-7280s.png

Panasonic SW-5583 2007r.-dq_2.4x_ihas324-.png

Panasonic SW-5583 2007r.-dq_2.4x_ihas524-b.png

Panasonic SW-5583 2007r.-dq_2.4x_gh24nsd0.png

**czary2mary** · 01.05.2017, 06:19

Cytat:

Napisany przez jadburner

Finally found my extra SW-5583.

Found a second factory copy.

Has the latest firmware 1.03 already?
By the way, did you find the HP CD-Writer + 8100?

**jadburner** · 01.05.2017, 16:24

Cytat:

Napisany przez czary2mary

Found a second factory copy.

Has the latest firmware 1.03 already?
By the way, did you find the HP CD-Writer + 8100?

Yes, the drive already had the 1.03 firmware on it. I'm curious how 1.03 burns compared to 1049, so I'll probably post results from both as I have time.

I bought the HP CD-Writer + 8100 a while ago from someone who was getting rid of a bunch of HP drives. As I recall, there were 12 or so drives in the bunch I bought. Most were still in boxes. As I find them I'll post test results from them.

**czary2mary** · 01.05.2017, 18:13

Cytat:

Napisany przez jadburner

Yes, the drive already had the 1.03 firmware on it. I'm curious how 1.03 burns compared to 1049, so I'll probably post results from both as I have time.

I bought the HP CD-Writer + 8100 a while ago from someone who was getting rid of a bunch of HP drives. As I recall, there were 12 or so drives in the bunch I bought. Most were still in boxes. As I find them I'll post test results from them.

On the factory software records faster Verbatim DVD + R DL MKM003 but much worse on the x8 transmission.
It may be that Primera has specifically lowered the speed index for the DVD DL in its firmware.?

**jadburner** · 01.05.2017, 18:30

Cytat:

Napisany przez czary2mary

It may be that Primera has specifically lowered the speed index for the DVD DL in its firmware.?

That's my guess too. The drive doesn't seem to burn DL media well at 8x.

**jadburner** · 01.05.2017, 05:40

Verbatim 8x DVD+R DL
Branded
MKM 003 (Made in UAE)
SW-5583 (1.03)
@ 4x --> 2.4x

Panasonic SW-5583 2007r.-createdisc_4x.png

Panasonic SW-5583 2007r.-dq_4x_dw1620.png

Panasonic SW-5583 2007r.-dq_4x_dw1640.png

Panasonic SW-5583 2007r.-dq_4x_ad-7240s.png

Panasonic SW-5583 2007r.-dq_4x_ad-7280s.png

Panasonic SW-5583 2007r.-dq_4x_ihas324-.png

Panasonic SW-5583 2007r.-dq_4x_ihas524-b.png

Panasonic SW-5583 2007r.-dq_4x_gh24nsd0.png

**jadburner** · 01.05.2017, 05:42

Verbatim 8x DVD+R DL
Branded
MKM 003 (Made in UAE)
SW-5583 (1.03)
@ 6x
