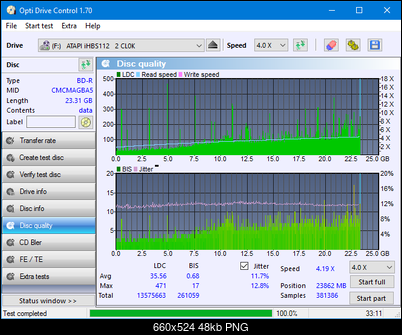

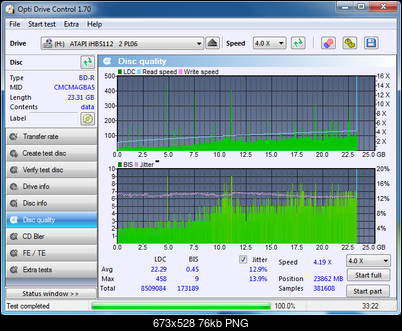

Pioneer BDR-211\S11 Ultra HD Blu-ray

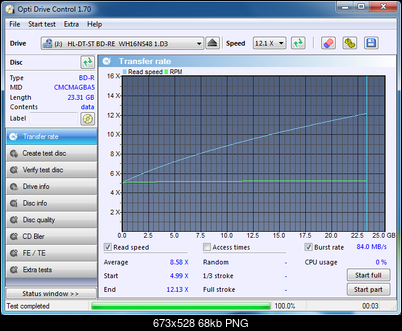

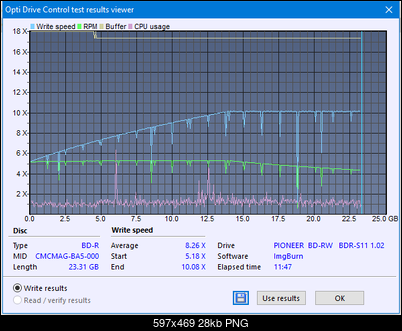

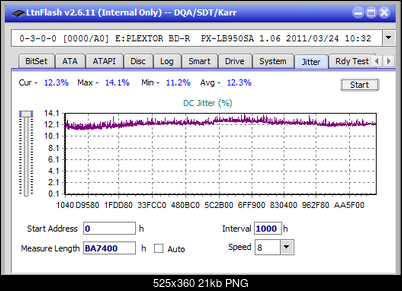

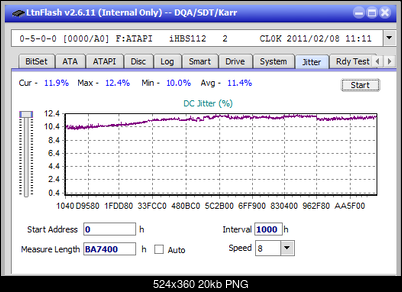

[jadburner]

Value Disc 6x BD-R
Branded
CMCMAG-BA5 (Made in Taiwan)
BDR-S11J (1.02)
OPC off
@ 10x

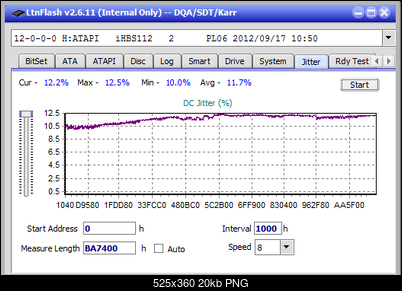

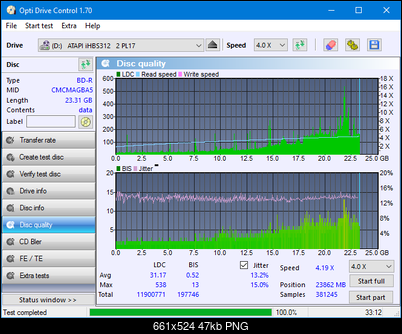

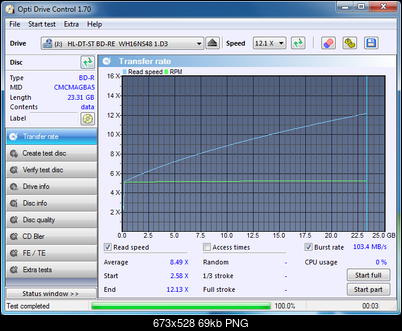

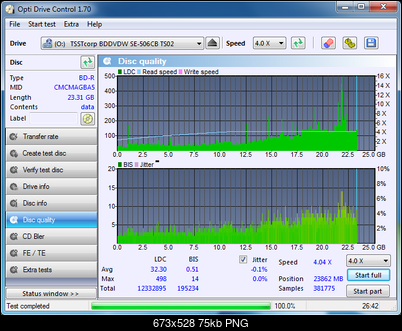

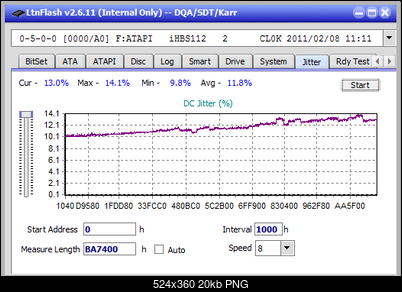

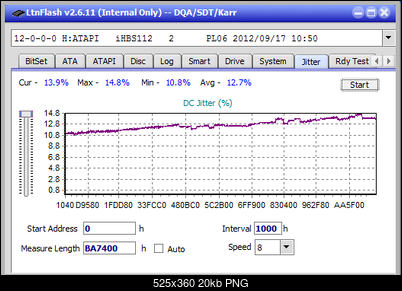

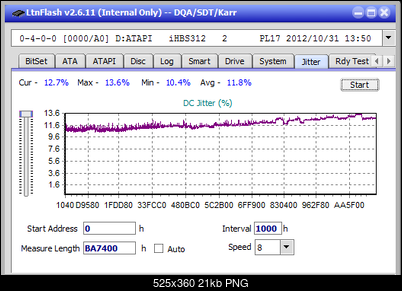

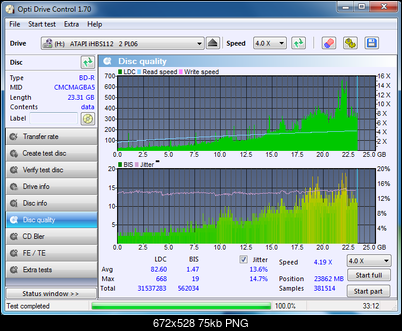

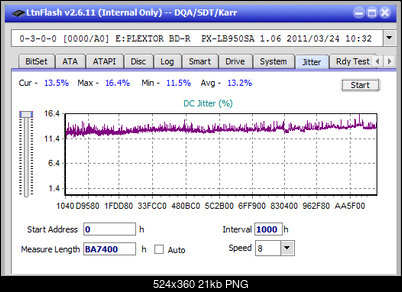

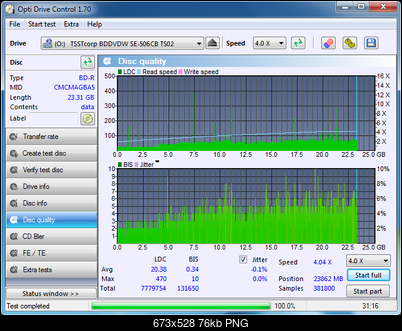

[jadburner]

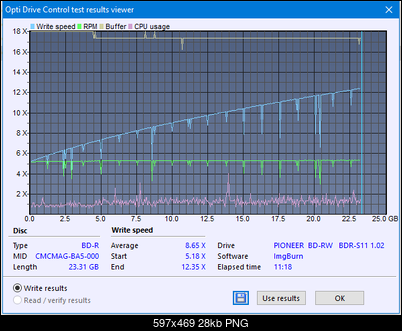

Value Disc 6x BD-R
Branded
CMCMAG-BA5 (Made in Taiwan)
BDR-S11J (1.02)
OPC off
@ 12x

[jadburner]

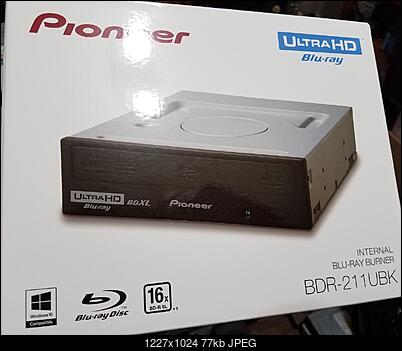

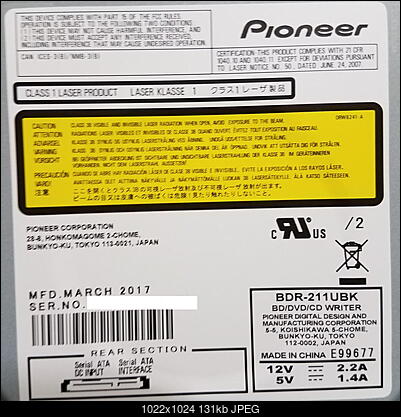

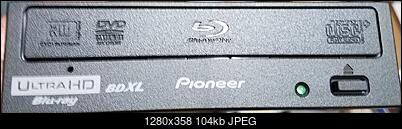

BDR-211U photos and info...

[czary2mary]

@jadburner
Very, very thank you for all the information and amazing tests for these latest Pioneer BDR-S11 \ 211 which for now we only here we can only joke.

Ask for info from DVRTool + Pioneer BD Drive Utility and what version of MediaSuite 10 is PowerDVD for Ultra HD? (14LE ?)

[jadburner]

Napisany przez czary2mary

Ask for info from DVRTool + Pioneer BD Drive Utility

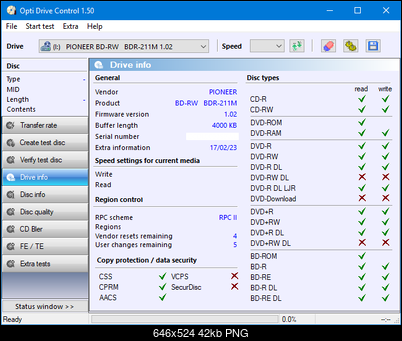

Here's the info from DVRTool:

Drive Information:

Model Name : PIONEER BD-RW BDR-211M
Firmware Rev : 1.02
Extra Info : 17/02/23
Serial Number :
Buffer Size : 4000 kiB

Additional Drive Information:

Label Code : ----
Hardware Rev : SAT 8800
Kernel Type : ID60
Firmware Type : ID60
Kernel Version : 0000

Drive is in normal mode.

Firmware flashing support : NO
Firmware dumping support : NO

Drive Capabilities:

CD-ROM : R BD-ROM : R
CD-R : R/W BD-R : R/W
CD-RW : R/W BD-R XL : R/W
DVD-ROM : R BD-RE : R/W
DVD-R : R/W BD-RE XL : R/W
DVD-R DL : R/W HD DVD-ROM : -
DVD-RW : R/W HD DVD-R : -
DVD+R : R/W HD DVD-R DL : -
DVD+R DL : R/W HD DVD-RW : -
DVD+RW : R/W LabelFlash : NO
DVD-RAM : R/W LightScribe : NO

Drive Region Settings:

RPC Scheme : RPC-2
Current Region : 0
Changes Left : 5 (available to user)
Resets Left : 4 (available only to vendor)
Region State : Region is not set

[jadburner]

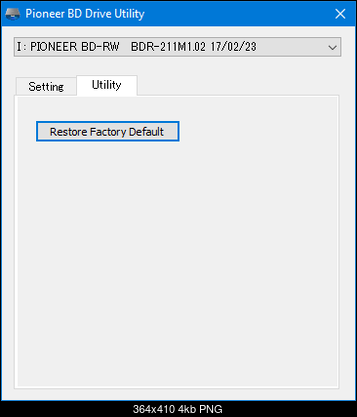

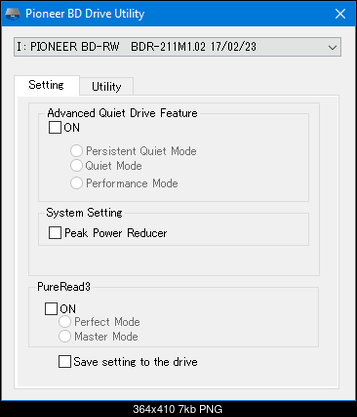

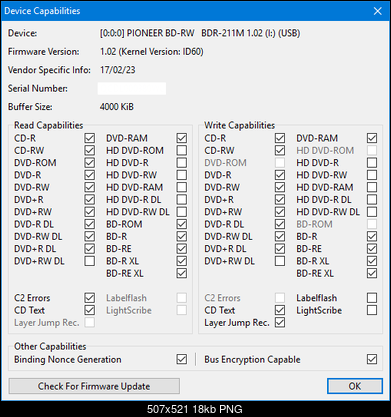

And here's the options that the drive utility provides:

[jadburner]

Napisany przez czary2mary

what version of MediaSuite 10 is PowerDVD for Ultra HD? (14LE ?)

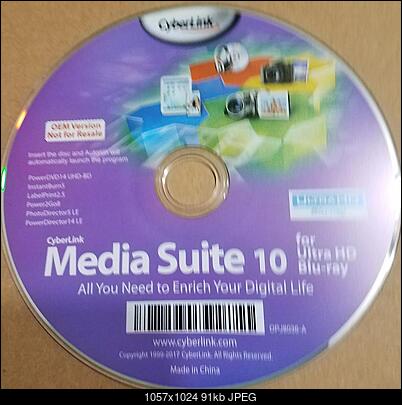

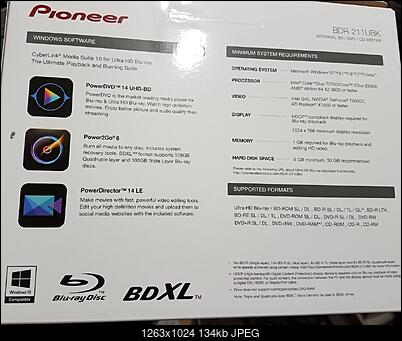

I have not yet installed any of the software. However, the box indicates that MediaSuite 10 = PowerDVD 14 UHD-BD + Power2Go 8 + PowerDirector 14 LE.

[czary2mary]

@jadburner

Thank you very much for all the information.
The Pioneer BDR-211xBK has an older version of PureRead 3+ without Real Time Pure Read

By contrast, the Pioneer BDR-S11J \ J-X Pure has the latest PureRead 4+ of course with Real Time Pure Read

[jadburner]

Napisany przez czary2mary

Thank you very much for all the information.

My pleasure. Thank you for pointing out the different versions of PureRead that the drives use.

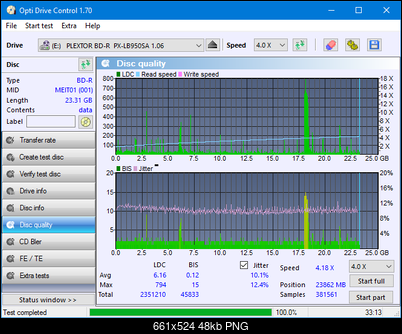

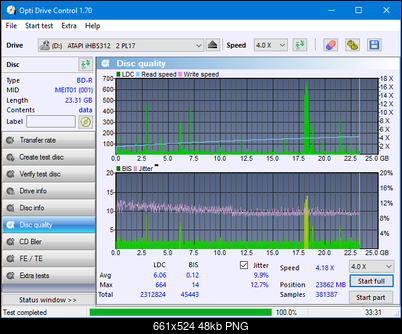

[jadburner]

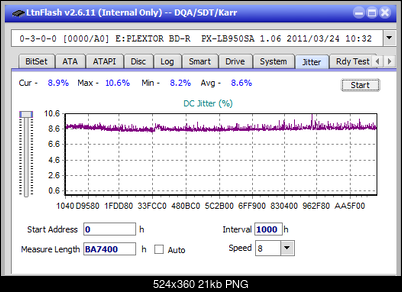

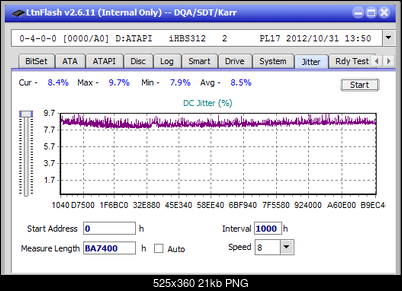

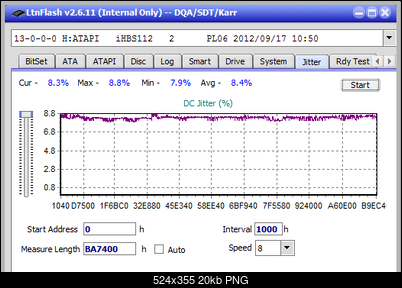

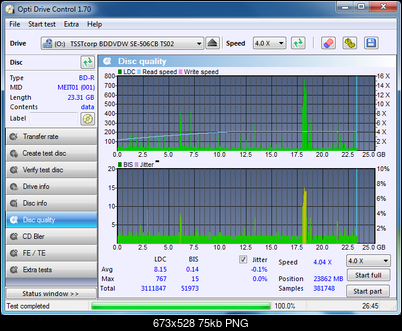

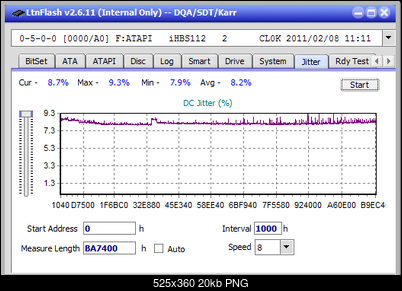

Panasonic 2x BD-R
Branded
MEIT01 (Made in Japan)
BDR-211U (1.02)
OPC on
@ 2x

(There were no visible marks or dust on the disc)

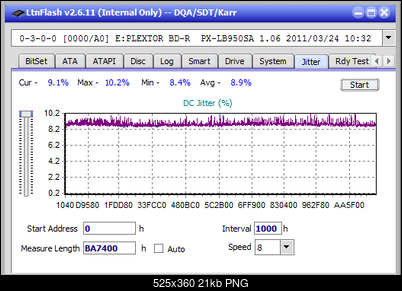

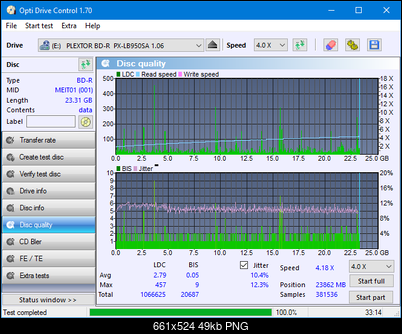

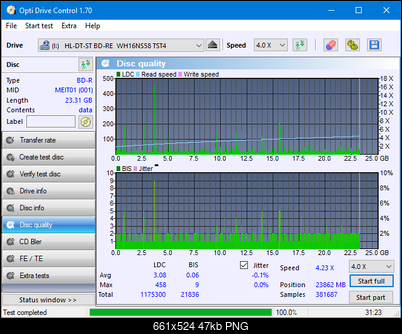

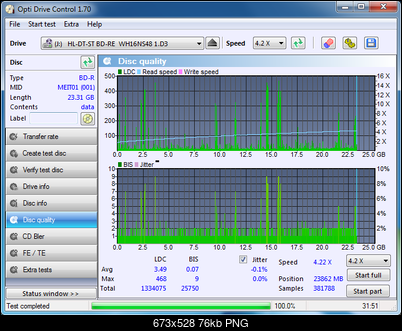

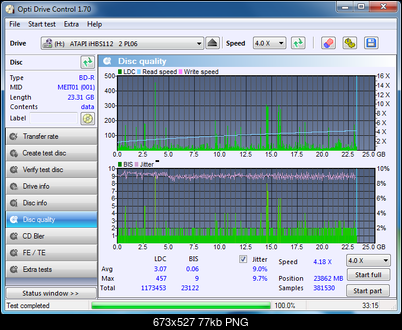

[jadburner]

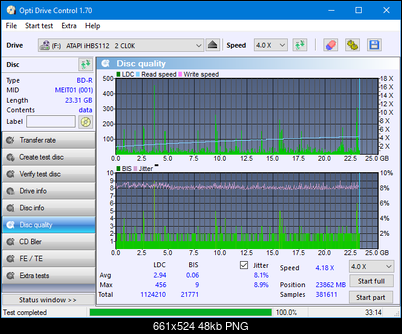

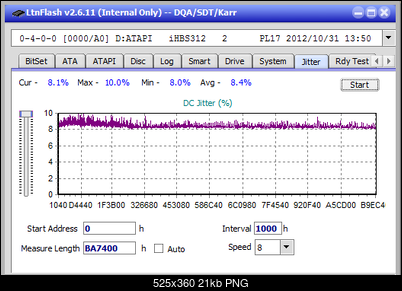

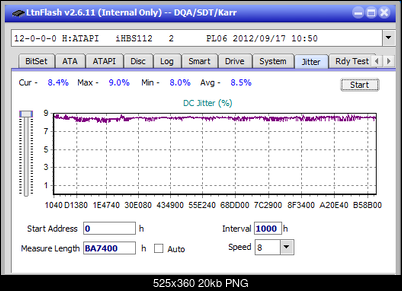

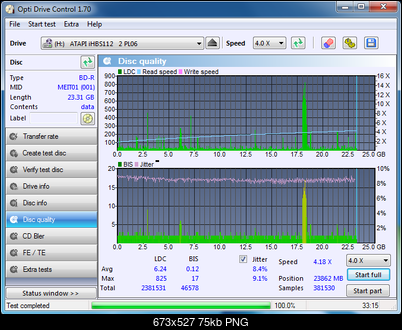

Panasonic 2x BD-R
Branded
MEIT01 (Made in Japan)
BDR-211U (1.02)
OPC off
@ 2x

[czary2mary]

Napisany przez jadburner

Panasonic 2x BD-R
Branded
MEIT01 (Made in Japan)
BDR-211U (1.02)
OPC on
@ 2x

(There were no visible marks or dust on the disc)

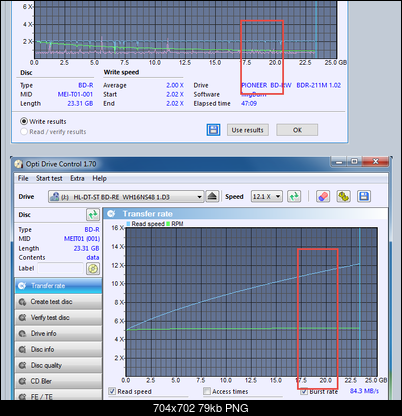

The graphs do not show any trouble with writing and reading.
There may be some defect \ pollution \ deformation on the recording or reflective layer.

[jadburner]

Napisany przez czary2mary

There may be some defect \ pollution \ deformation on the recording or reflective layer.Załącznik 93388

Yes, my first thought was something on the surface of the disc. However, I looked and could not see anything. I agree that it's likely a defect with the disc (not the drive).

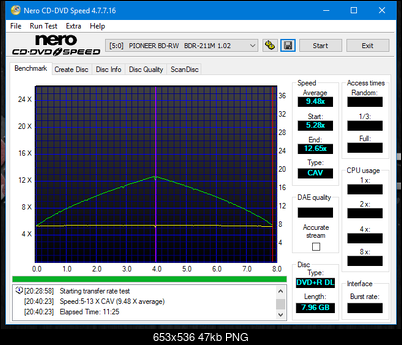

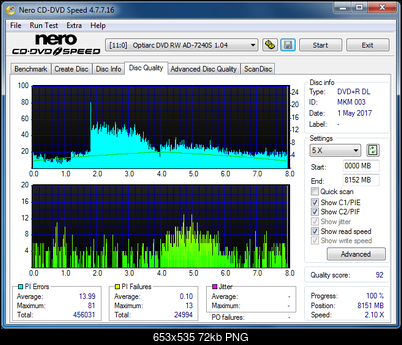

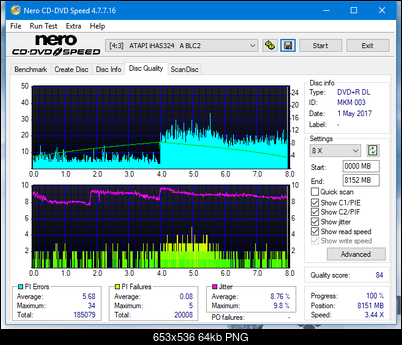

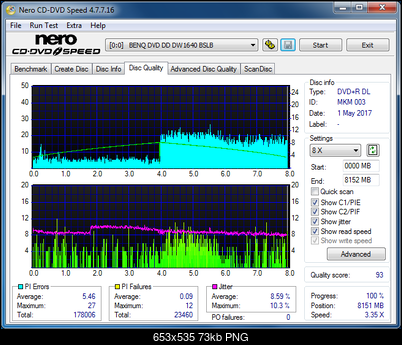

[jadburner]

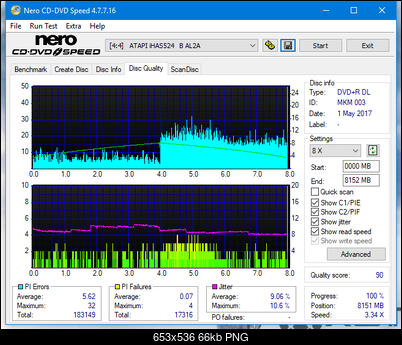

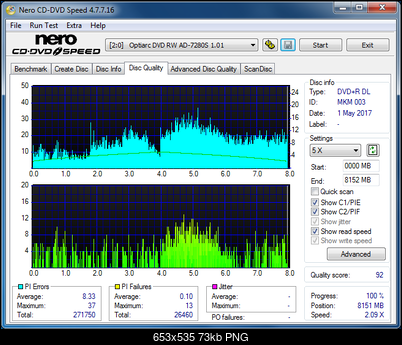

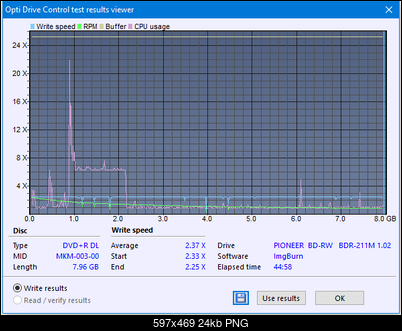

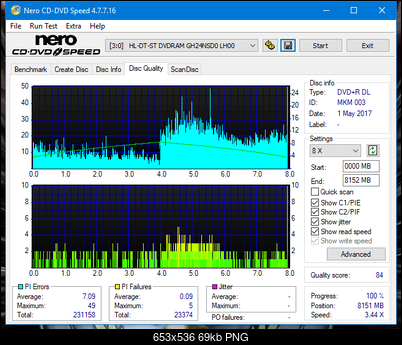

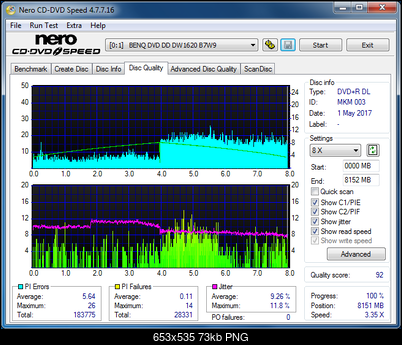

Verbatim 8x DVD+R DL
Branded
MKM 003 (Made in UAE)
BDR-211U (1.02)
@ 2.4x

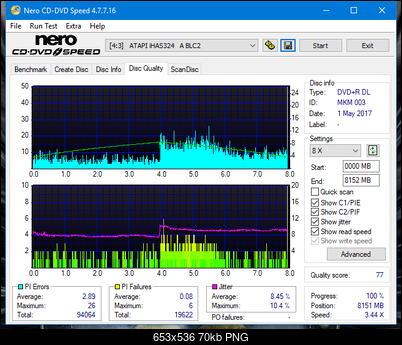

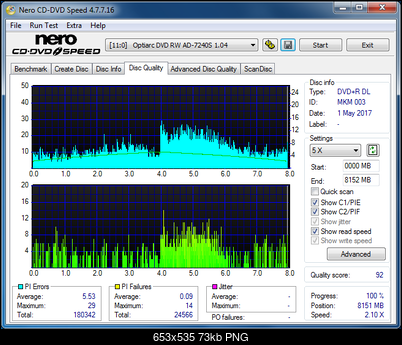

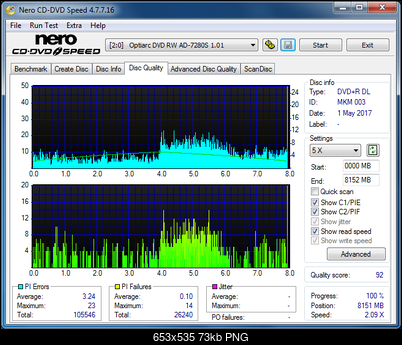

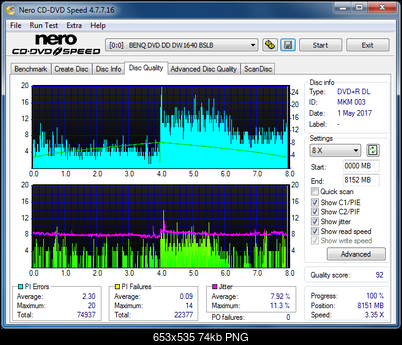

[jadburner]

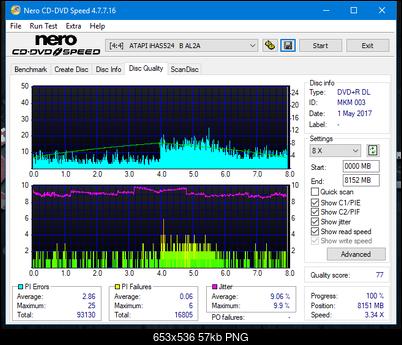

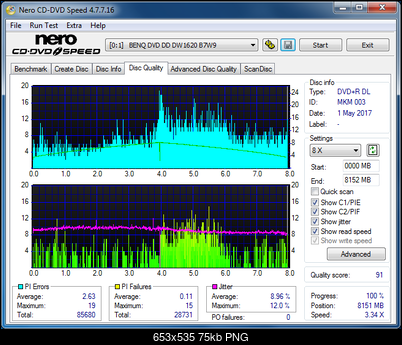

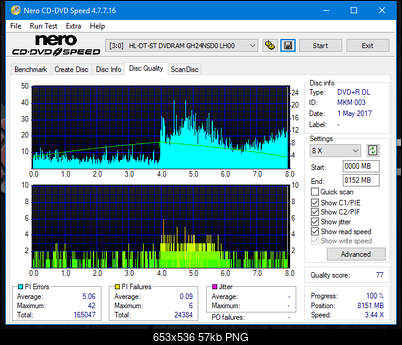

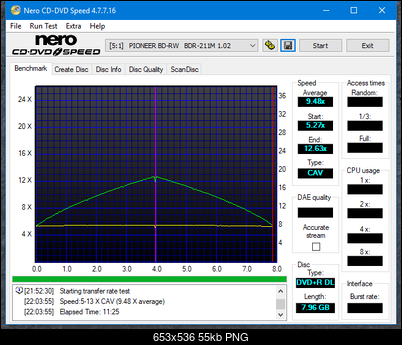

Verbatim 8x DVD+R DL
Branded
MKM 003 (Made in UAE)
BDR-211U (1.02)
@ 4x
