**jadburner** · 23.09.2019, 07:05

Cytat:

Napisany przez zenonz

Hi jadburner,

I missed that I missed to answer you

Yeah, that was my original wish, but I have just retired my copy. It turned out, that the unit got bigger and bigger issues to read CDs and DVDs, however CD/DVD burning did work flawlessly. I suspected some driver issues after playing with AnyDVD and DVDFab, because usually cold boot with disc in was successful.

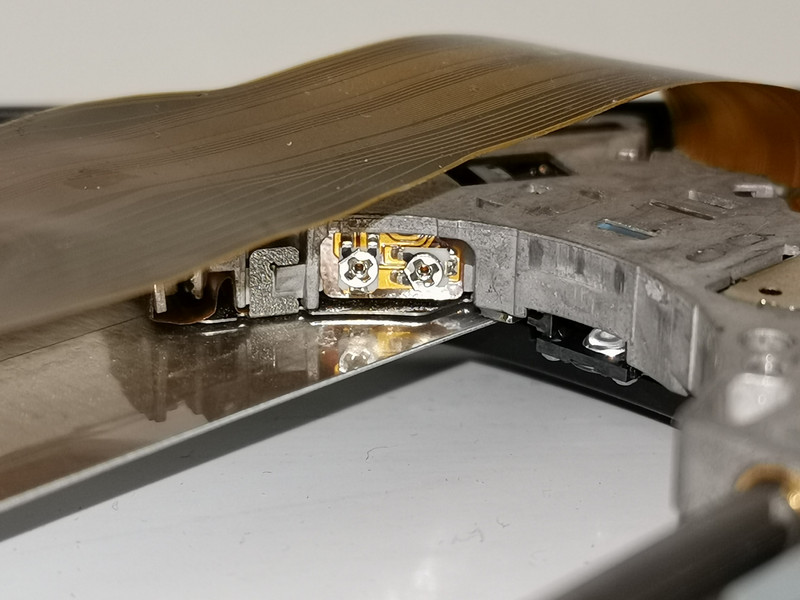

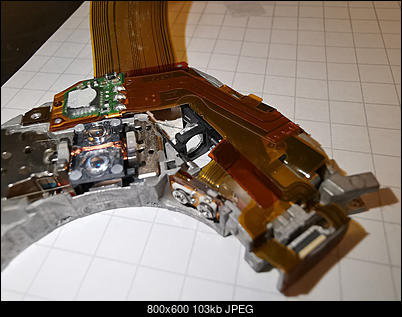

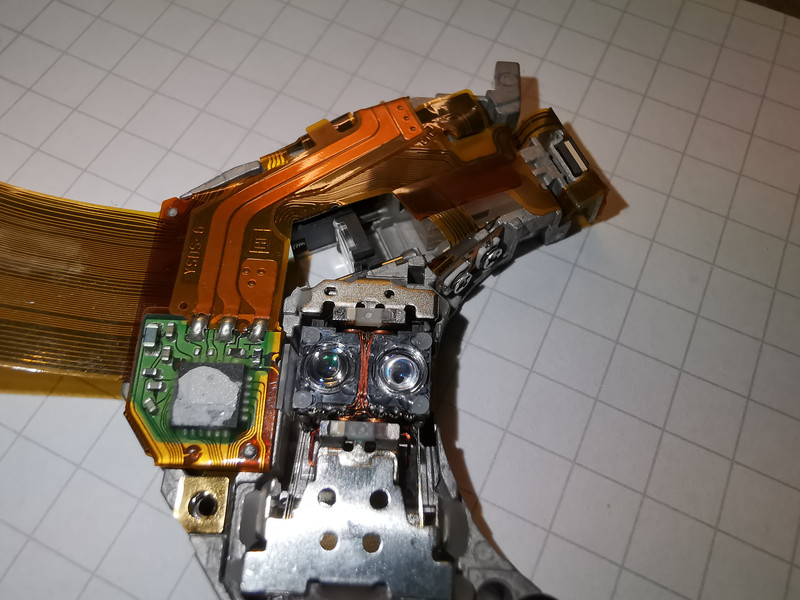

Now I definitely excluded external factors, tried the drive in external case and with another PC - BD laser reads BD-ROM discs, but with BD-R and BD-RE shows media as empty (strangely each time is able the MID of inserted disc independently of type). Cleaning with compressed air and some cotton pads did not bring any BD improvement, CD/DVD readability was restored to normal.

I even tried flashing with older SC01 and re-flashing with original SC01 firmware - no luck there.

I wonder if the diode itself was so crappy or maybe the environment killed it? I noticed some fine dust inside of the unit, there is no sealing at all that could stop it.

I just installed Optiarc BD-5750L instead, (BC-5500S kept crashing for some reason), but if the dust is the killer I'd rather save the burner in a sealed bag...

Hi, zenonz. Sorry to hear about your drive. I've only used mine to burn discs so far, so I don't know if mine will start showing the same signs of deterioration as yours did.

I hope your BD-5750L works more reliably.

**jadburner** · 31.10.2019, 06:14

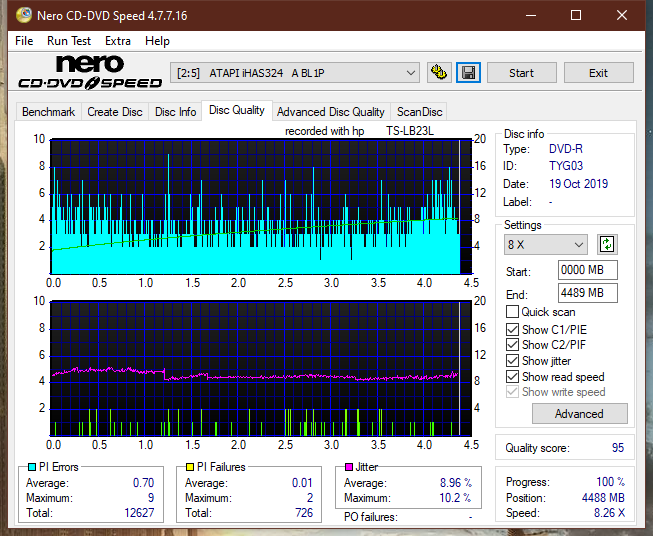

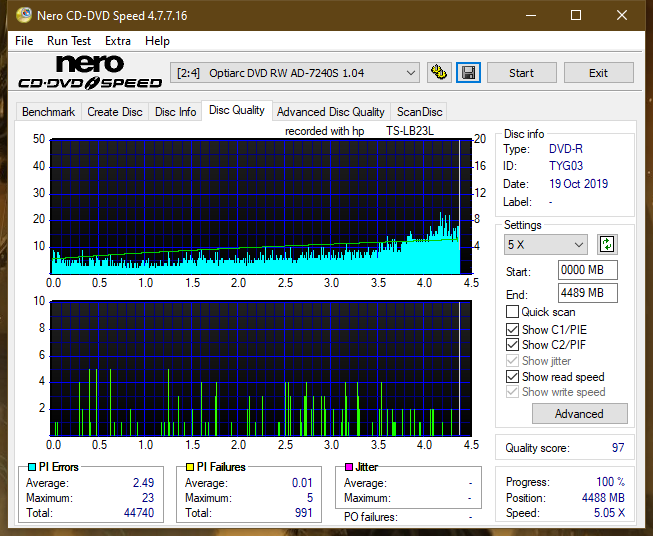

Legend with PRO 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)

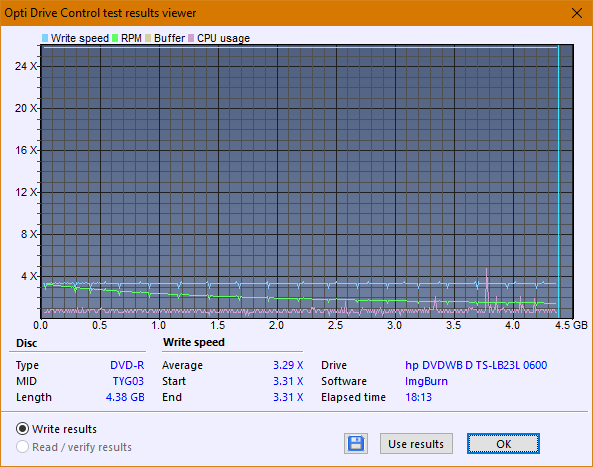

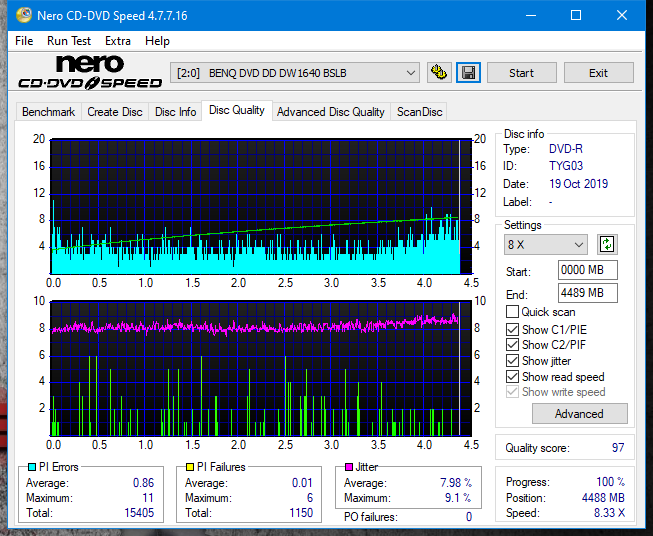

@ 3.3x









TA Test (Inner Zone Layer 0)_3.3x_PX-716A.png

TA Test (Middle Zone Layer 0)_3.3x_PX-716A.png

TA Test (Outer Zone Layer 0)_3.3x_PX-716A.png

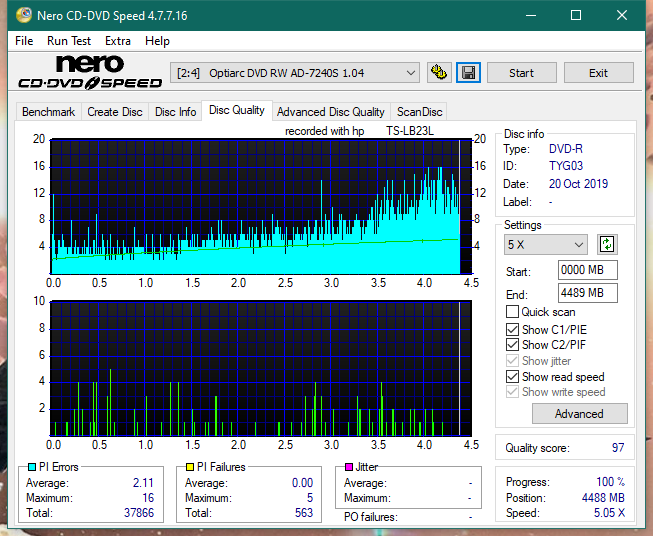

**jadburner** · 31.10.2019, 06:16

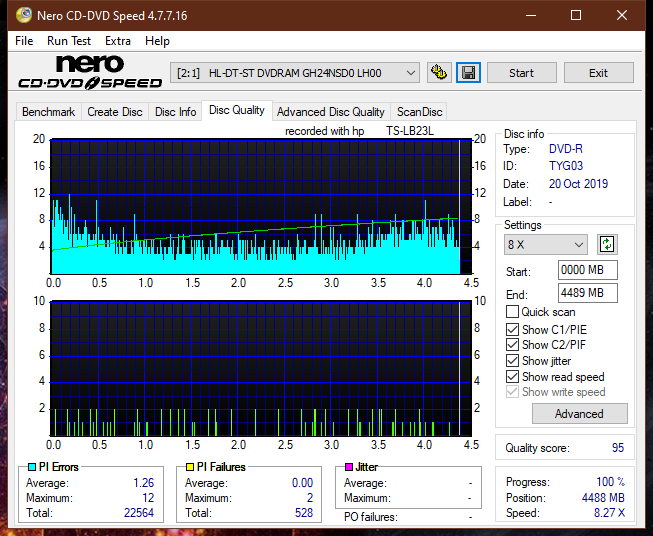

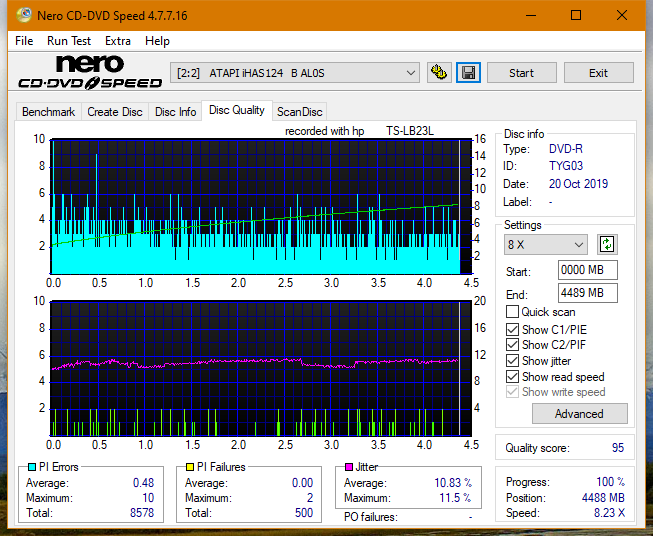

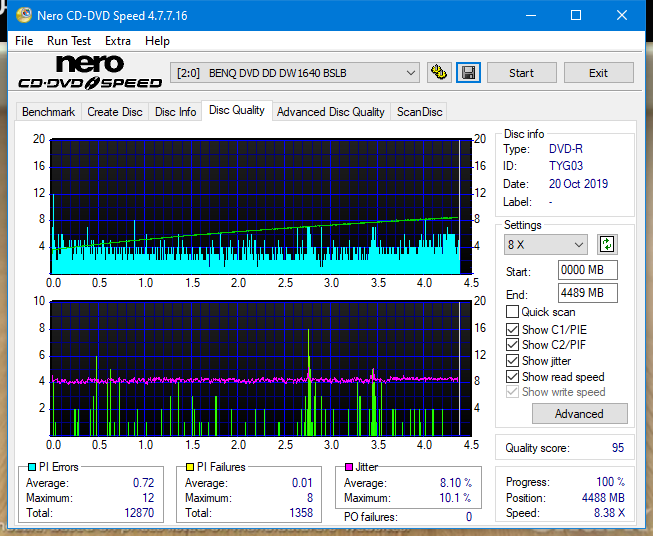

Legend with PRO 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)

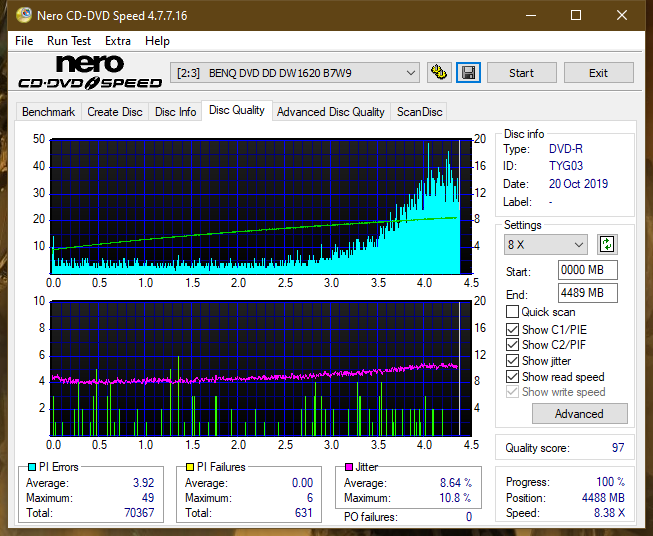

@ 4x









TA Test (Inner Zone Layer 0)_4x_PX-716A.png

TA Test (Middle Zone Layer 0)_4x_PX-716A.png

TA Test (Outer Zone Layer 0)_4x_PX-716A.png

**jadburner** · 31.10.2019, 06:19

Legend with PRO 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)

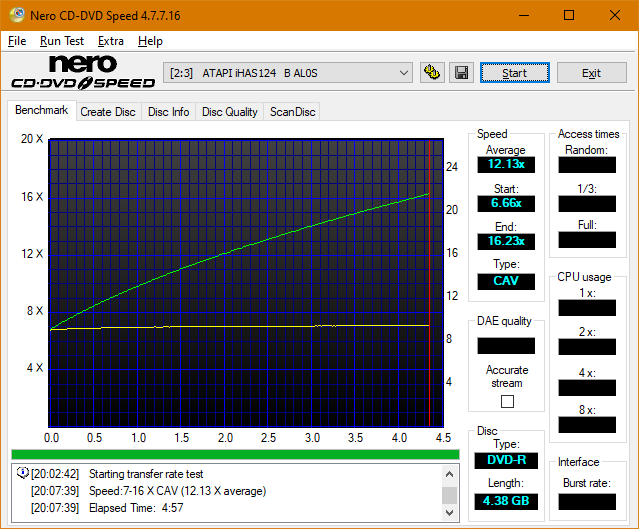

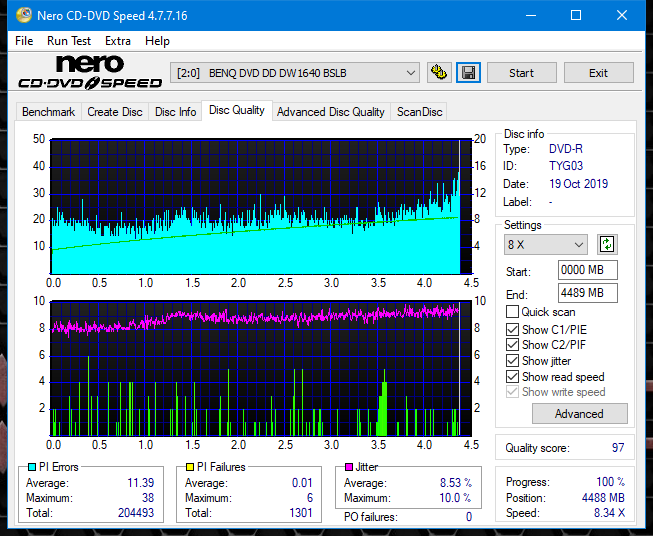

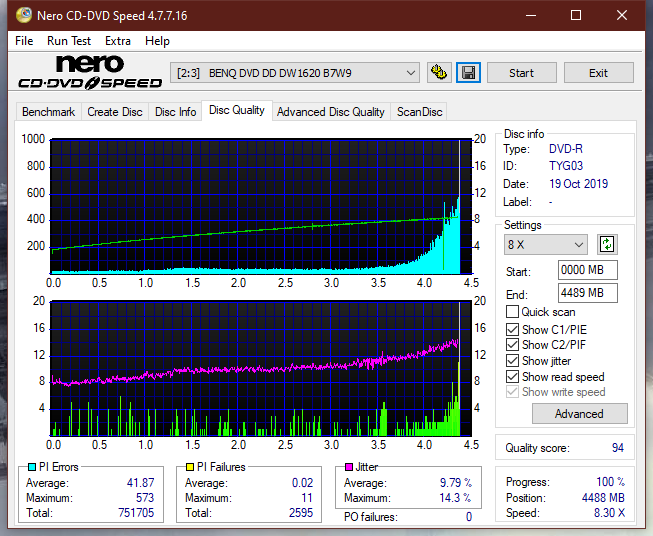

@ 6x









TA Test (Inner Zone Layer 0)_6x_PX-716A.png

TA Test (Middle Zone Layer 0)_6x_PX-716A.png

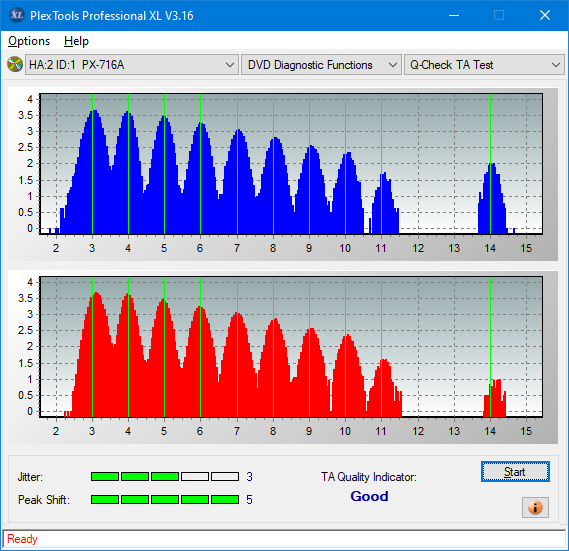

TA Test (Outer Zone Layer 0)_6x_PX-716A.png

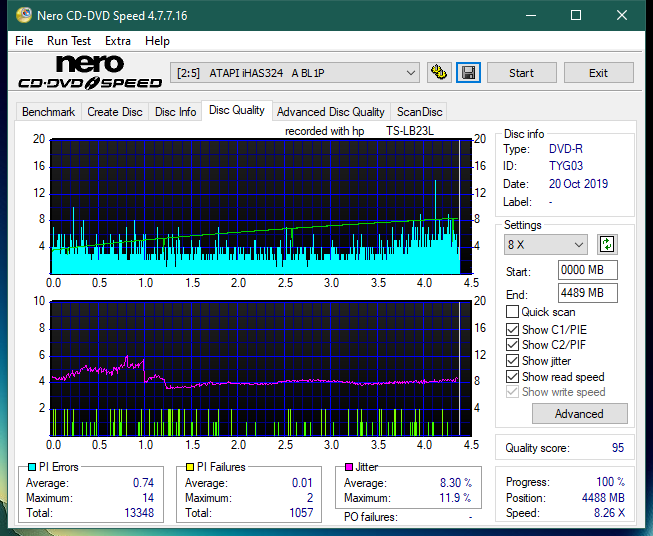

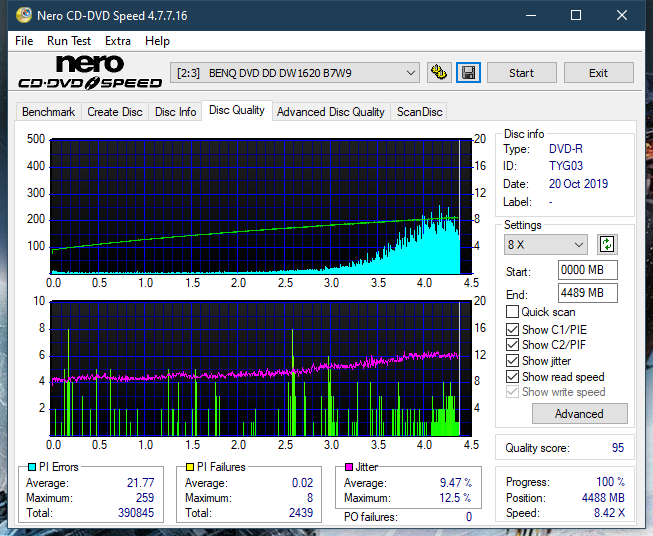

**jadburner** · 31.10.2019, 06:21

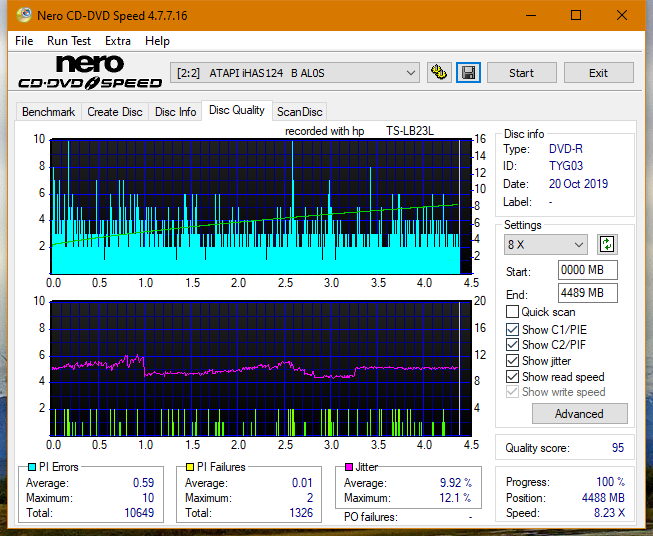

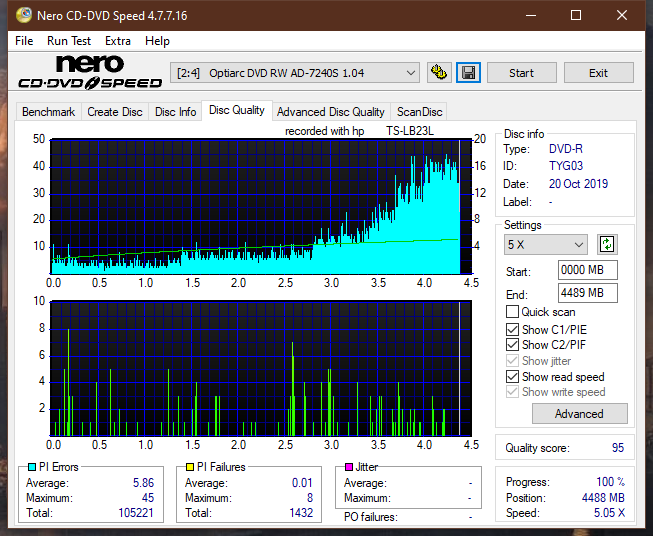

Legend with PRO 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)
@ 8x









TA Test (Inner Zone Layer 0)_8x_PX-716A.png

TA Test (Middle Zone Layer 0)_8x_PX-716A.png

TA Test (Outer Zone Layer 0)_8x_PX-716A.png

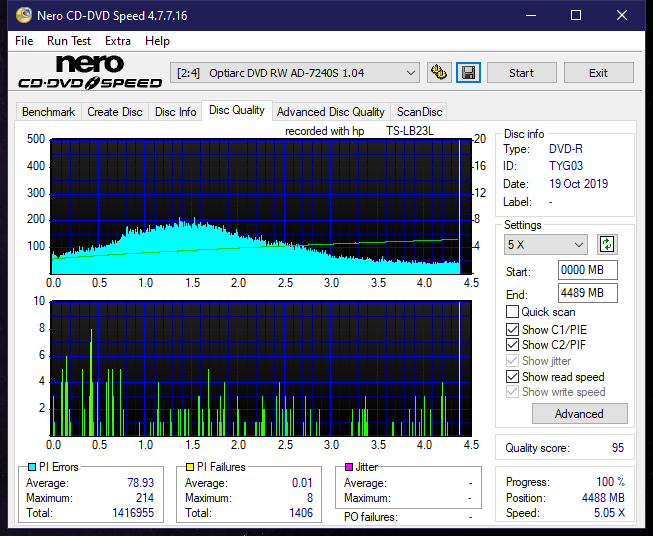

**jadburner** · 03.11.2019, 05:23

HiDisc 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)
@ 3.3x









TA Test (Inner Zone Layer 0)_3.3x_PX-716A.png

TA Test (Middle Zone Layer 0)_3.3x_PX-716A.png

TA Test (Outer Zone Layer 0)_3.3x_PX-716A.png

**jadburner** · 03.11.2019, 05:26

HiDisc 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)
@ 4x









TA Test (Inner Zone Layer 0)_4x_PX-716A.png

TA Test (Middle Zone Layer 0)_4x_PX-716A.png

TA Test (Outer Zone Layer 0)_4x_PX-716A.png

**jadburner** · 03.11.2019, 05:28

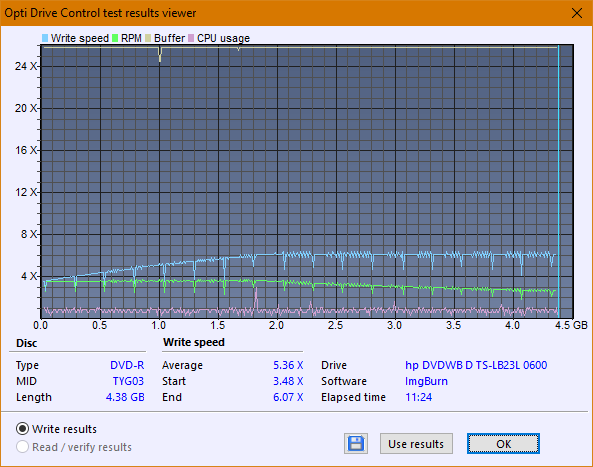

HiDisc 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)
@ 6x









TA Test (Inner Zone Layer 0)_6x_PX-716A.png

TA Test (Middle Zone Layer 0)_6x_PX-716A.png

TA Test (Outer Zone Layer 0)_6x_PX-716A.png

**jadburner** · 03.11.2019, 05:31

HiDisc 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)
@ 8x









TA Test (Inner Zone Layer 0)_8x_PX-716A.png

TA Test (Middle Zone Layer 0)_8x_PX-716A.png

TA Test (Outer Zone Layer 0)_8x_PX-716A.png

**jadburner** · 19.11.2019, 04:10

CMC Pro (Powered by TY) 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)
@ 3.3x









TA Test (Inner Zone Layer 0)_3.3x_PX-716A.png

TA Test (Middle Zone Layer 0)_3.3x_PX-716A.png

TA Test (Outer Zone Layer 0)_3.3x_PX-716A.png

**jadburner** · 19.11.2019, 04:14

CMC Pro (Powered by TY) 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)
@ 4x









TA Test (Inner Zone Layer 0)_4x_PX-716A.png

TA Test (Middle Zone Layer 0)_4x_PX-716A.png

TA Test (Outer Zone Layer 0)_4x_PX-716A.png

**jadburner** · 19.11.2019, 04:17

CMC Pro (Powered by TY) 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)
@ 6x









TA Test (Inner Zone Layer 0)_6x_PX-716A.png

TA Test (Middle Zone Layer 0)_6x_PX-716A.png

TA Test (Outer Zone Layer 0)_6x_PX-716A.png

**jadburner** · 19.11.2019, 04:21

CMC Pro (Powered by TY) 16x DVD-R
White inkjet hub printable
TYG03 (Made in Taiwan)
TS-LB23L (0600)
@ 8x









TA Test (Inner Zone Layer 0)_8x_PX-716A.png

TA Test (Middle Zone Layer 0)_8x_PX-716A.png

TA Test (Outer Zone Layer 0)_8x_PX-716A.png

**jadburner** · 20.11.2019, 04:36

I've only done very limited scanning with the TS-LB23L. Results for LDC and BIS were higher than most other drives, but not all. It's probably best used as a secondary scanner.

czary2mary brought QPxTool to my attention, so he deserves the credit.

zenonz · 26.11.2019, 22:14

Cytat:

Napisany przez jadburner

I've only done very limited scanning with the TS-LB23L. Results for LDC and BIS were higher than most other drives, but not all. It's probably best used as a secondary scanner.

It seems that HP OEM firmware enables scanning contrary to my stock TSST, I wonder if it's possible to cross-flash without bricking, @czary2mary, any advice?

https://club.myce.com/t/experiment-s...el-case/400579

Cytat:

czary2mary brought QPxTool to my attention, so he deserves the credit.

Podobne dyskusje
Dyskusja	Autor	Forum	Odpow.	Ostatni Post
HP dvd RW - \4 \ 8\ 12 \16 \18 \20 \ 22 \ 24	czary2mary	Napędy optyczne DVD	2	16.05.2018 08:32
Serwisowanie HP 640i - Gehenna	Bródka	Napędy optyczne CD	6	31.12.2005 00:00
Pojemnik hp 56 zamiast hp 27.	Loczek	Off topic	1	13.10.2005 13:17


	Nagrywarki \| Pliki \| Dyski twarde \| Recenzje \| Księgarnia \| Biosy \| Artykuły \| Nagrywanie od A do Z \| Słownik \| FAQ

	#ads
CDRinfo.pl Reklamowiec Data rejestracji: 29.12.2008 Lokalizacja: Sieć globalna Wiek: 31 Posty: 1227

31.10.2019, 06:14	#2

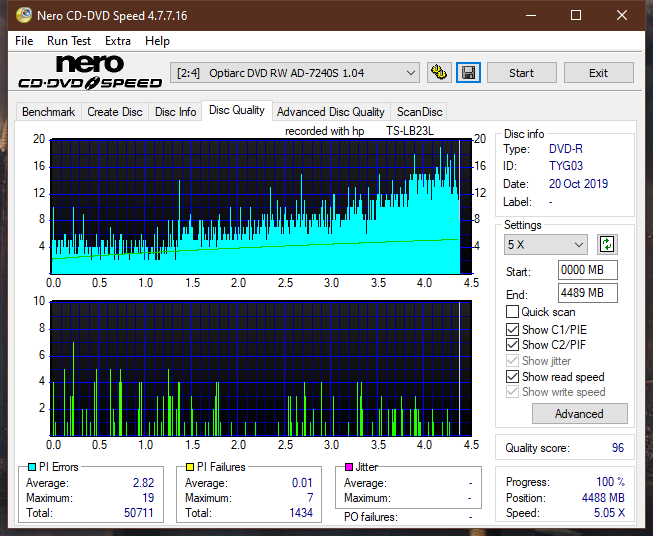

jadburner Moderator Data rejestracji: 07.03.2017 Lokalizacja: Middle Earth Posty: 10,055	Legend with PRO 16x DVD-R White inkjet hub printable TYG03 (Made in Taiwan) TS-LB23L (0600) @ 3.3x CreateDisc_3.3x.png TRT_3.3x.png DQ_3.3x_DW1620.png DQ_3.3x_DW1640.png DQ_3.3x_AD-7240S.png DQ_3.3x_iHAS324-A.png DQ_3.3x_iHAS124-B.png DQ_3.3x_GH24NSD0.png TA Test (Inner Zone Layer 0)_3.3x_PX-716A.png TA Test (Middle Zone Layer 0)_3.3x_PX-716A.png TA Test (Outer Zone Layer 0)_3.3x_PX-716A.png

31.10.2019, 06:16	#3
jadburner Moderator Data rejestracji: 07.03.2017 Lokalizacja: Middle Earth Posty: 10,055	Legend with PRO 16x DVD-R White inkjet hub printable TYG03 (Made in Taiwan) TS-LB23L (0600) @ 4x CreateDisc_4x.png TRT_4x.png DQ_4x_DW1620.png DQ_4x_DW1640.png DQ_4x_AD-7240S.png DQ_4x_iHAS324-A.png DQ_4x_iHAS124-B.png DQ_4x_GH24NSD0.png TA Test (Inner Zone Layer 0)_4x_PX-716A.png TA Test (Middle Zone Layer 0)_4x_PX-716A.png TA Test (Outer Zone Layer 0)_4x_PX-716A.png

31.10.2019, 06:19	#4
jadburner Moderator Data rejestracji: 07.03.2017 Lokalizacja: Middle Earth Posty: 10,055	Legend with PRO 16x DVD-R White inkjet hub printable TYG03 (Made in Taiwan) TS-LB23L (0600) @ 6x CreateDisc_6x.png TRT_6x.png DQ_6x_DW1620.png DQ_6x_DW1640.png DQ_6x_AD-7240S.png DQ_6x_iHAS324-A.png DQ_6x_iHAS124-B.png DQ_6x_GH24NSD0.png TA Test (Inner Zone Layer 0)_6x_PX-716A.png TA Test (Middle Zone Layer 0)_6x_PX-716A.png TA Test (Outer Zone Layer 0)_6x_PX-716A.png

31.10.2019, 06:21	#5

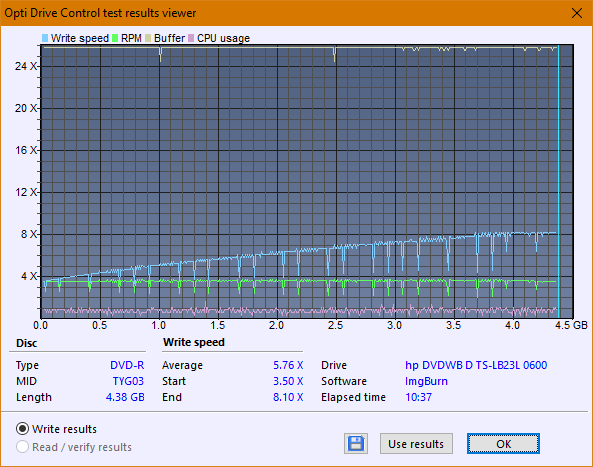

jadburner Moderator Data rejestracji: 07.03.2017 Lokalizacja: Middle Earth Posty: 10,055	Legend with PRO 16x DVD-R White inkjet hub printable TYG03 (Made in Taiwan) TS-LB23L (0600) @ 8x CreateDisc_8x.png TRT_8x.png DQ_8x_DW1620.png DQ_8x_DW1640.png DQ_8x_AD-7240S.png DQ_8x_iHAS324-A.png DQ_8x_iHAS124-B.png DQ_8x_GH24NSD0.png TA Test (Inner Zone Layer 0)_8x_PX-716A.png TA Test (Middle Zone Layer 0)_8x_PX-716A.png TA Test (Outer Zone Layer 0)_8x_PX-716A.png

03.11.2019, 05:23	#6

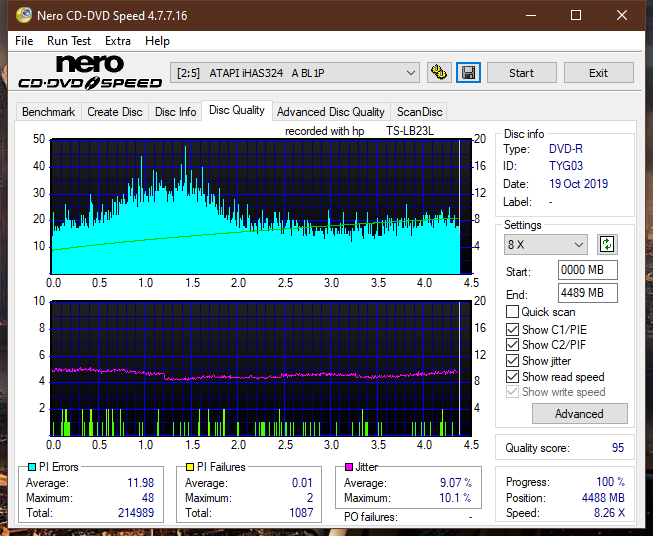

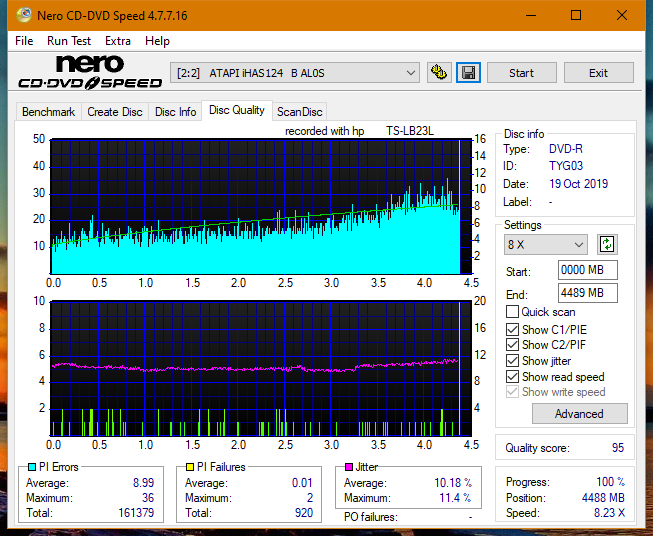

jadburner Moderator Data rejestracji: 07.03.2017 Lokalizacja: Middle Earth Posty: 10,055	HiDisc 16x DVD-R White inkjet hub printable TYG03 (Made in Taiwan) TS-LB23L (0600) @ 3.3x CreateDisc_3.3x.png TRT_3.3x.png DQ_3.3x_DW1620.png DQ_3.3x_DW1640.png DQ_3.3x_AD-7240S.png DQ_3.3x_iHAS324-A.png DQ_3.3x_iHAS124-B.png DQ_3.3x_GH24NSD0.png TA Test (Inner Zone Layer 0)_3.3x_PX-716A.png TA Test (Middle Zone Layer 0)_3.3x_PX-716A.png TA Test (Outer Zone Layer 0)_3.3x_PX-716A.png

03.11.2019, 05:26	#7

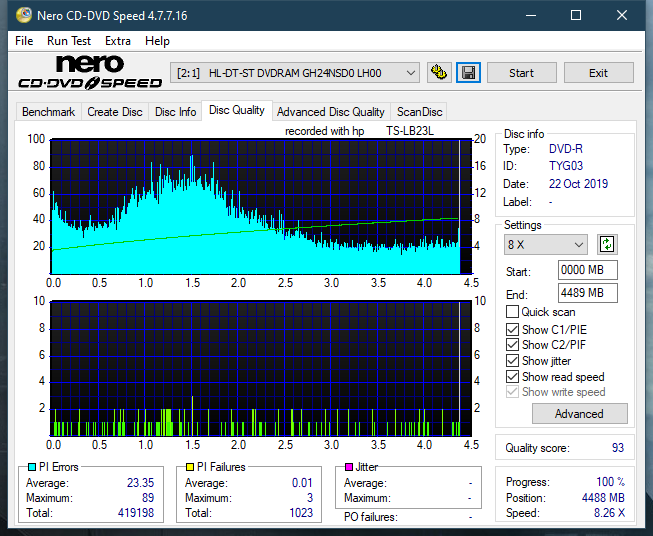

jadburner Moderator Data rejestracji: 07.03.2017 Lokalizacja: Middle Earth Posty: 10,055	HiDisc 16x DVD-R White inkjet hub printable TYG03 (Made in Taiwan) TS-LB23L (0600) @ 4x CreateDisc_4x.png TRT_4x.png DQ_4x_DW1620.png DQ_4x_DW1640.png DQ_4x_AD-7240S.png DQ_4x_iHAS324-A.png DQ_4x_iHAS124-B.png DQ_4x_GH24NSD0.png TA Test (Inner Zone Layer 0)_4x_PX-716A.png TA Test (Middle Zone Layer 0)_4x_PX-716A.png TA Test (Outer Zone Layer 0)_4x_PX-716A.png

03.11.2019, 05:28	#8

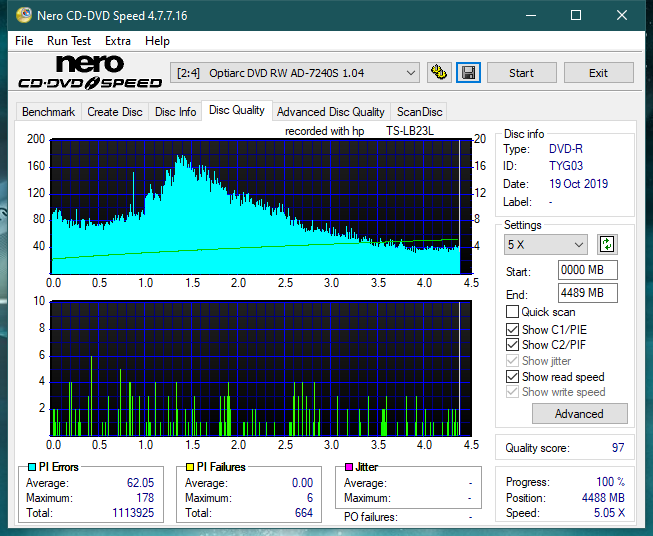

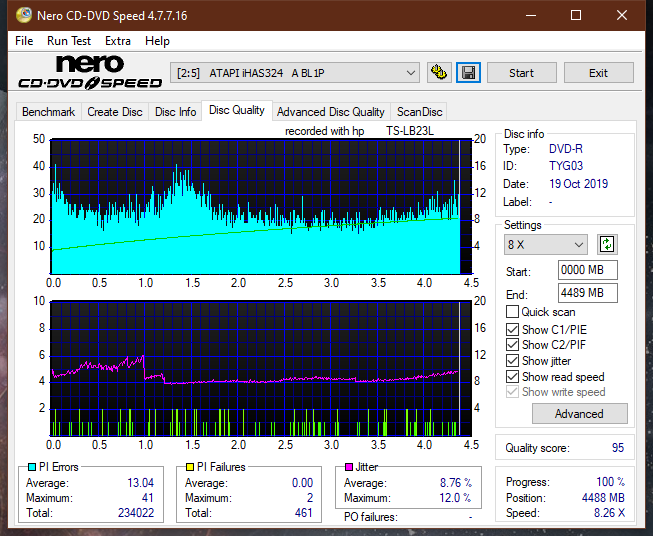

jadburner Moderator Data rejestracji: 07.03.2017 Lokalizacja: Middle Earth Posty: 10,055	HiDisc 16x DVD-R White inkjet hub printable TYG03 (Made in Taiwan) TS-LB23L (0600) @ 6x CreateDisc_6x.png TRT_6x.png DQ_6x_DW1620.png DQ_6x_DW1640.png DQ_6x_AD-7240S.png DQ_6x_iHAS324-A.png DQ_6x_iHAS124-B.png DQ_6x_GH24NSD0.png TA Test (Inner Zone Layer 0)_6x_PX-716A.png TA Test (Middle Zone Layer 0)_6x_PX-716A.png TA Test (Outer Zone Layer 0)_6x_PX-716A.png
