07.07.2015, 09:08 | #1 |
Zamaskowany
Data rejestracji: 12.10.2005
Posty: 22,280
|

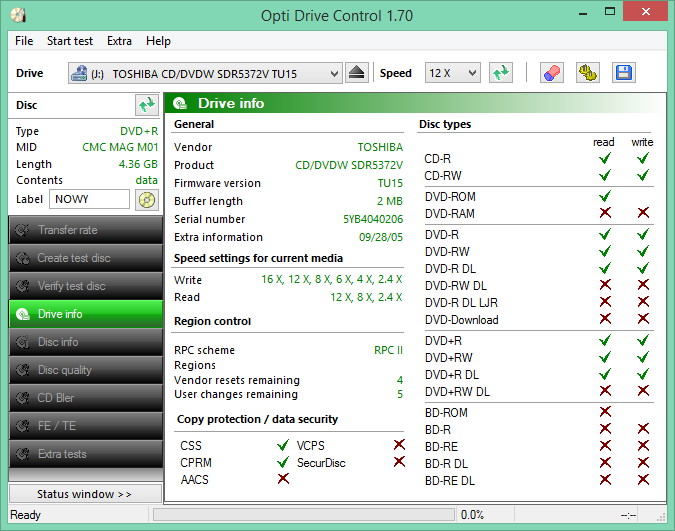

Toshiba SD-R5372V 2005r.

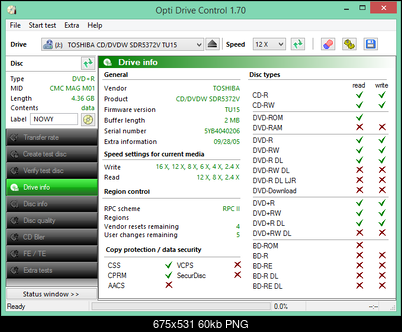

Toshiba SD-R5372V = chipset Toshiba TC94A53FG + OPU Samsung SOH-DW16

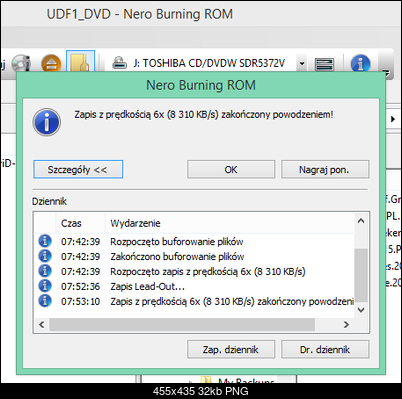

Troszkę nagniemy znowu zasady dla niedowiarków .......Oczywiście sprzęt ma swoje wady-bardzo awaryjne i nietrwałe OPU \brak dobrej wentylacji\odprowadzenia ciepła przez co bardzo szybko mocno nagrzewa się co również to może wpływać\wpół-wpływać na problemy\ kłopoty z OPU... Więc trzeba się obchodzić z Tośką jak z kobietą ,....a wtedy nagrywa płyty... log z NERO z zapisu x6 .....nie widać żadnych potencjalnych problemów... Windows 8 6.2 AMD64 Wow64Process Nero Version: 16.0.11.0 Internal Version: 16,0,11,0 Recorder : <TOSHIBA CD/DVDW SDR5372V> FW version: TU15 - HA 1 TA 1 - 16.0.11.0 Device bus : <> HA 1 Host system bus : <USB 2> Drive buffer : 2048kB Bus Type : via Inquiry data CD/DVD-ROM : <HL-DT-ST DVDRAM GT30N > FW version: 1.01 - HA 1 TA 0 - 16.0.11.0 Device bus : <> HA 1 Host system bus : <IDE> === Scsi-Device-Map === DiskPeripheral : KINGSTON SV300S37A120G iaStor Port 0 ID 0 DMA: On DiskPeripheral : WDC WD7500BPKX-75HPJT0 iaStor Port 0 ID 1 DMA: Off CdRomPeripheral : HL-DT-ST DVDRAM GT30N iaStor Port 0 ID 2 DMA: Off === CDRom-Device-Map === HL-DT-ST DVDRAM GT30N D: CdRom0 TOSHIBA CD/DVDW SDR5372V J: CdRom1 ======================= AutoRun : 0 Excluded drive IDs: WriteBufferSize: 83886080 (0) Byte BUFE : 0 Physical memory : 4090MB (4189108kB) Free physical memory: 2119MB (2170264kB) Memory in use : 48 % Uncached PFiles: 0x0 Global Bus Type: default (0) Check supported media : Disabled (0) 7.7.2015 Kompilacja UDF 07:42:38 #1 Text 0 File SCSIPTICommands.cpp, Line 617 LockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL 07:42:39 #2 Text 0 File Isodoc.cpp, Line 7684 UDF document burn settings ------------------------------------------ Determine maximum speed : FALSE Simulate : FALSE Write : TRUE Finalize CD : TRUE Multisession : FALSE Burning mode : DAO Mode : 1 UDF Mode : pure UDF Options : automatic UDF Revision : 1.02 UDF Partition Type : physical 07:42:39 #3 PHASE 214 File dlgbrnst.cpp, Line 2088 Generation of disc structures started 07:42:39 #4 Text 0 File Cdrdrv.cpp, Line 10814 ---- Disc Structure: Physical Format Information of Control Data Zone in the Lead-in (10h) ---- Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050 Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 2.1 (33) Disc Size: 120 mm, Maximum Transfer Rate: 10,08 Mbps (2 h) Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable Linear Density: 0,267 um/bit, Track Density: 0,74 um/track Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW) Outer Limit of Data Recordable Area: 26127F h Data in Burst Cutting Area (BCA) does not exist Revision number of maximum recording speed: 6.0 Revision number of minimum recording speed: - Revision number table of recording speed: 1.0 2.0 3.0 4.0 5.0 - - Class: 0, Extended part version: 33 Start PSN of the Extra Border Zone: 2FE10 h Start PSN of Physical format information blocks in Extra Border Zone: 2FFA0 h Media Specific [16..783]: 00 60 00 10 20 30 40 50 - 00 00 00 21 00 00 00 00 .`...0@P...!.... 00 02 FE 10 00 02 FF A0 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 1D 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 01 40 C1 FD 9E D8 52 00 - 02 87 0D 13 87 88 90 00 .@....R......... 03 52 49 54 45 4B 46 00 - 04 31 00 00 00 00 00 00 .RITEKF..1...... 05 88 80 00 00 00 02 00 - 06 09 0F 15 87 88 90 00 ................ 07 A8 82 00 20 00 00 00 - 08 06 16 10 14 0F 0B 00 ................ 09 94 07 0D 0B 88 88 00 - 0A 80 00 00 00 00 10 00 ................ 0B 09 1E 17 A7 89 85 00 - 0C B7 89 02 00 20 02 00 ................ 0D 00 00 D0 00 00 00 00 - 0E 0C 2B 39 33 29 1C 00 ..........+93).. 0F 50 1D 2B 0F 97 B5 00 - 10 88 80 00 00 00 00 00 .P.+............ 11 00 00 00 00 00 00 00 - 12 0C 32 45 41 2D 27 00 ..........2EA-'. 13 50 23 2F 0F 97 B5 00 - 14 88 80 00 00 00 00 00 .P#/............ 15 00 00 00 00 00 00 00 - 16 0A 4A 4F 4B 23 29 00 ..........JOK#). 17 80 1B 27 10 68 B5 00 - 18 88 88 00 08 00 08 00 ...'.h.......... 19 00 00 00 00 00 00 00 - 1A 08 59 55 52 2D 2B 00 ..........YUR-+. 1B 60 1F 29 0B A9 B5 00 - 1C 88 80 00 00 00 00 00 .`.)............ 1D 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 07:42:39 #5 Text 0 File compose.cpp, Line 970 GenUDF2: 1 transfer items prepared. 07:42:39 #6 PHASE 215 File dlgbrnst.cpp, Line 2088 Generation of disc structures completed 07:42:39 #7 Text 0 File Burncd.cpp, Line 3816 Turn on Disc-At-Once, using CD-R/RW; DVD R/RW; DVD DL media 07:42:39 #8 Text 0 File Cdrdrv.cpp, Line 10814 ---- Disc Structure: Physical Format Information of Control Data Zone in the Lead-in (10h) ---- Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050 Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 2.1 (33) Disc Size: 120 mm, Maximum Transfer Rate: 10,08 Mbps (2 h) Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable Linear Density: 0,267 um/bit, Track Density: 0,74 um/track Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW) Outer Limit of Data Recordable Area: 26127F h Data in Burst Cutting Area (BCA) does not exist Revision number of maximum recording speed: 6.0 Revision number of minimum recording speed: - Revision number table of recording speed: 1.0 2.0 3.0 4.0 5.0 - - Class: 0, Extended part version: 33 Start PSN of the Extra Border Zone: 2FE10 h Start PSN of Physical format information blocks in Extra Border Zone: 2FFA0 h Media Specific [16..783]: 00 60 00 10 20 30 40 50 - 00 00 00 21 00 00 00 00 .`...0@P...!.... 00 02 FE 10 00 02 FF A0 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 1D 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 01 40 C1 FD 9E D8 52 00 - 02 87 0D 13 87 88 90 00 .@....R......... 03 52 49 54 45 4B 46 00 - 04 31 00 00 00 00 00 00 .RITEKF..1...... 05 88 80 00 00 00 02 00 - 06 09 0F 15 87 88 90 00 ................ 07 A8 82 00 20 00 00 00 - 08 06 16 10 14 0F 0B 00 ................ 09 94 07 0D 0B 88 88 00 - 0A 80 00 00 00 00 10 00 ................ 0B 09 1E 17 A7 89 85 00 - 0C B7 89 02 00 20 02 00 ................ 0D 00 00 D0 00 00 00 00 - 0E 0C 2B 39 33 29 1C 00 ..........+93).. 0F 50 1D 2B 0F 97 B5 00 - 10 88 80 00 00 00 00 00 .P.+............ 11 00 00 00 00 00 00 00 - 12 0C 32 45 41 2D 27 00 ..........2EA-'. 13 50 23 2F 0F 97 B5 00 - 14 88 80 00 00 00 00 00 .P#/............ 15 00 00 00 00 00 00 00 - 16 0A 4A 4F 4B 23 29 00 ..........JOK#). 17 80 1B 27 10 68 B5 00 - 18 88 88 00 08 00 08 00 ...'.h.......... 19 00 00 00 00 00 00 00 - 1A 08 59 55 52 2D 2B 00 ..........YUR-+. 1B 60 1F 29 0B A9 B5 00 - 1C 88 80 00 00 00 00 00 .`.)............ 1D 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 07:42:39 #9 Text 0 File DlgWaitCD.cpp, Line 335 [J: CD/DVDW SDR5372V] Last possible write address on media: 2298495 Last address to be written: 2150271 07:42:39 #10 Text 0 File DlgWaitCD.cpp, Line 347 [J: CD/DVDW SDR5372V] Write in overburning mode: NO (enabled: CD) 07:42:39 #11 Text 0 File DlgWaitCD.cpp, Line 3087 Recorder: TOSHIBA CD/DVDW SDR5372V, Media type: DVD-R Disc Manufacturer ID: <RITEKF> <1> Disc Application Code: 64, Disc Physical Code: 193 07:42:39 #12 Text 0 File DlgWaitCD.cpp, Line 537 [J: CD/DVDW SDR5372V] >>> Protocol of DlgWaitCD activities: <<< ========================================= 07:42:39 #13 Text 0 File ThreadedTransferInterface.cpp, Line 879 Setup items (after recorder preparation) 0: TRM_DATA_MODE1 () 2 indices, index0 (150) not provided original disc pos #0 + 2150272 (2150272) = #2150272/477:50.22 relocatable, disc pos for caching/writing not required/ required -> TRM_DATA_MODE1, 2048, config 0, wanted index0 0 blocks, length 2150272 blocks [J: TOSHIBA CD/DVDW SDR5372V] -------------------------------------------------------------- 07:42:39 #14 Text 0 File ThreadedTransferInterface.cpp, Line 1095 Prepare [J: TOSHIBA CD/DVDW SDR5372V] for write in CUE-sheet-DAO DAO infos: ========== MCN: "" TOCType: 0x00; Session Closed, disc fixated Tracks 1 to 1: Idx 0 Idx 1 Next Trk 1: TRM_DATA_MODE1, 2048/0x00, FilePos 0 0 4403757056, ISRC "" DAO layout: =========== ___Start_|____Track_|_Idx_|_CtrlAdr_|_____Size_|__ ____NWA_|_RecDep__________ 0 | lead-in | 0 | 0x41 | 0 | 0 | 0x00 0 | 1 | 0 | 0x41 | 0 | 0 | 0x00 0 | 1 | 1 | 0x41 | 2150272 | 0 | 0x00 2150272 | lead-out | 1 | 0x41 | 0 | 0 | 0x00 MediaType: DVD-R 07:42:39 #15 Text 0 File SCSIPTICommands.cpp, Line 404 SPTILockVolume - completed successfully for FSCTL_LOCK_VOLUME 07:42:39 #16 Text 0 File Burncd.cpp, Line 4712 Caching options: cache CDRom or Network-Yes, small files-No (<64KB) 07:42:39 #17 PHASE 24 File dlgbrnst.cpp, Line 2088 Caching of files started 07:42:39 #18 Text 0 File Burncd.cpp, Line 4834 Cache writing successful. 07:42:39 #19 PHASE 25 File dlgbrnst.cpp, Line 2088 Caching of files completed 07:42:39 #20 PHASE 36 File dlgbrnst.cpp, Line 2088 Burn process started at 6x (8*310 KB/s) 07:42:40 #21 Text 0 File Cdrdrv.cpp, Line 10814 ---- Disc Structure: Physical Format Information of Control Data Zone in the Lead-in (10h) ---- Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050 Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 2.1 (33) Disc Size: 120 mm, Maximum Transfer Rate: 10,08 Mbps (2 h) Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable Linear Density: 0,267 um/bit, Track Density: 0,74 um/track Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW) Outer Limit of Data Recordable Area: 26127F h Data in Burst Cutting Area (BCA) does not exist Revision number of maximum recording speed: 6.0 Revision number of minimum recording speed: - Revision number table of recording speed: 1.0 2.0 3.0 4.0 5.0 - - Class: 0, Extended part version: 33 Start PSN of the Extra Border Zone: 2FE10 h Start PSN of Physical format information blocks in Extra Border Zone: 2FFA0 h Media Specific [16..783]: 00 60 00 10 20 30 40 50 - 00 00 00 21 00 00 00 00 .`...0@P...!.... 00 02 FE 10 00 02 FF A0 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 1D 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 01 40 C1 FD 9E D8 52 00 - 02 87 0D 13 87 88 90 00 .@....R......... 03 52 49 54 45 4B 46 00 - 04 31 00 00 00 00 00 00 .RITEKF..1...... 05 88 80 00 00 00 02 00 - 06 09 0F 15 87 88 90 00 ................ 07 A8 82 00 20 00 00 00 - 08 06 16 10 14 0F 0B 00 ................ 09 94 07 0D 0B 88 88 00 - 0A 80 00 00 00 00 10 00 ................ 0B 09 1E 17 A7 89 85 00 - 0C B7 89 02 00 20 02 00 ................ 0D 00 00 D0 00 00 00 00 - 0E 0C 2B 39 33 29 1C 00 ..........+93).. 0F 50 1D 2B 0F 97 B5 00 - 10 88 80 00 00 00 00 00 .P.+............ 11 00 00 00 00 00 00 00 - 12 0C 32 45 41 2D 27 00 ..........2EA-'. 13 50 23 2F 0F 97 B5 00 - 14 88 80 00 00 00 00 00 .P#/............ 15 00 00 00 00 00 00 00 - 16 0A 4A 4F 4B 23 29 00 ..........JOK#). 17 80 1B 27 10 68 B5 00 - 18 88 88 00 08 00 08 00 ...'.h.......... 19 00 00 00 00 00 00 00 - 1A 08 59 55 52 2D 2B 00 ..........YUR-+. 1B 60 1F 29 0B A9 B5 00 - 1C 88 80 00 00 00 00 00 .`.)............ 1D 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 07:42:40 #22 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 0 (relocatable, disc pos, no patch infos, orig at #0): write at #0 07:42:40 #23 Text 0 File Cdrdrv.cpp, Line 10814 ---- Disc Structure: Physical Format Information of Control Data Zone in the Lead-in (10h) ---- Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050 Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 2.1 (33) Disc Size: 120 mm, Maximum Transfer Rate: 10,08 Mbps (2 h) Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable Linear Density: 0,267 um/bit, Track Density: 0,74 um/track Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW) Outer Limit of Data Recordable Area: 26127F h Data in Burst Cutting Area (BCA) does not exist Revision number of maximum recording speed: 6.0 Revision number of minimum recording speed: - Revision number table of recording speed: 1.0 2.0 3.0 4.0 5.0 - - Class: 0, Extended part version: 33 Start PSN of the Extra Border Zone: 2FE10 h Start PSN of Physical format information blocks in Extra Border Zone: 2FFA0 h Media Specific [16..783]: 00 60 00 10 20 30 40 50 - 00 00 00 21 00 00 00 00 .`...0@P...!.... 00 02 FE 10 00 02 FF A0 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 1D 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 01 40 C1 FD 9E D8 52 00 - 02 87 0D 13 87 88 90 00 .@....R......... 03 52 49 54 45 4B 46 00 - 04 31 00 00 00 00 00 00 .RITEKF..1...... 05 88 80 00 00 00 02 00 - 06 09 0F 15 87 88 90 00 ................ 07 A8 82 00 20 00 00 00 - 08 06 16 10 14 0F 0B 00 ................ 09 94 07 0D 0B 88 88 00 - 0A 80 00 00 00 00 10 00 ................ 0B 09 1E 17 A7 89 85 00 - 0C B7 89 02 00 20 02 00 ................ 0D 00 00 D0 00 00 00 00 - 0E 0C 2B 39 33 29 1C 00 ..........+93).. 0F 50 1D 2B 0F 97 B5 00 - 10 88 80 00 00 00 00 00 .P.+............ 11 00 00 00 00 00 00 00 - 12 0C 32 45 41 2D 27 00 ..........2EA-'. 13 50 23 2F 0F 97 B5 00 - 14 88 80 00 00 00 00 00 .P#/............ 15 00 00 00 00 00 00 00 - 16 0A 4A 4F 4B 23 29 00 ..........JOK#). 17 80 1B 27 10 68 B5 00 - 18 88 88 00 08 00 08 00 ...'.h.......... 19 00 00 00 00 00 00 00 - 1A 08 59 55 52 2D 2B 00 ..........YUR-+. 1B 60 1F 29 0B A9 B5 00 - 1C 88 80 00 00 00 00 00 .`.)............ 1D 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 07:42:40 #24 Text 0 File DVDR.cpp, Line 3137 Recording mode: Sequential Recording Mode 07:42:40 #25 Text 0 File DVDR.cpp, Line 3295 Start write address at LBA 0 DVD high compatibility mode: Yes 07:42:40 #26 Text 0 File Cdrdrv.cpp, Line 10814 ---- Disc Structure: Physical Format Information (00h) ---- Media Type: 0, Layer: 0, Address: 0 (0 h), AGID: 0; Length: 2050 Book Type: DVD-R (2), Part Version: 2.0x (5), Extended Part Version: 2.1 (33) Disc Size: 120 mm, Maximum Transfer Rate: 10,08 Mbps (2 h) Number of Layers: 1, Track Path: Parallel Track Path (PTP), Layer Type: recordable Linear Density: 0,267 um/bit, Track Density: 0,74 um/track Starting Physical Sector Number of Data Area: 30000 h (DVD-ROM, DVD-R/-RW, DVD+R/+RW) Outer Limit of Data Recordable Area: 30000 h Data in Burst Cutting Area (BCA) does not exist Revision number of maximum recording speed: 6.0 Revision number of minimum recording speed: - Revision number table of recording speed: 1.0 2.0 3.0 4.0 5.0 - - Class: 0, Extended part version: 33 Start PSN of the Extra Border Zone: 0 h Start PSN of Physical format information blocks in Extra Border Zone: 0 h Media Specific [16..783]: 00 60 00 10 20 30 40 50 - 00 00 00 21 00 00 00 00 .`...0@P...!.... 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 1D 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 01 40 C1 FD 9E D8 52 00 - 02 87 0D 13 87 88 90 00 .@....R......... 03 52 49 54 45 4B 46 00 - 04 31 00 00 00 00 00 00 .RITEKF..1...... 05 88 80 00 00 00 02 00 - 06 09 0F 15 87 88 90 00 ................ 07 A8 82 00 20 00 00 00 - 08 06 16 10 14 0F 0B 00 ................ 09 94 07 0D 0B 88 88 00 - 0A 80 00 00 00 00 10 00 ................ 0B 09 1E 17 A7 89 85 00 - 0C B7 89 02 00 20 02 00 ................ 0D 00 00 D0 00 00 00 00 - 0E 0C 2B 39 33 29 1C 00 ..........+93).. 0F 50 1D 2B 0F 97 B5 00 - 10 88 80 00 00 00 00 00 .P.+............ 11 00 00 00 00 00 00 00 - 12 0C 32 45 41 2D 27 00 ..........2EA-'. 13 50 23 2F 0F 97 B5 00 - 14 88 80 00 00 00 00 00 .P#/............ 15 00 00 00 00 00 00 00 - 16 0A 4A 4F 4B 23 29 00 ..........JOK#). 17 80 1B 27 10 68 B5 00 - 18 88 88 00 08 00 08 00 ...'.h.......... 19 00 00 00 00 00 00 00 - 1A 08 59 55 52 2D 2B 00 ..........YUR-+. 1B 60 1F 29 0B A9 B5 00 - 1C 88 80 00 00 00 00 00 .`.)............ 1D 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................ 07:42:40 #27 Text 0 File DVDR.cpp, Line 3437 Reserved Track size: 2150272 (20CF80h, 4199MB) -> return code 0 07:42:40 #28 Text 0 File ThreadedTransfer.cpp, Line 275 Pipe memory size 83836800 07:42:40 #29 Text 0 File CUDFTransferItem2.cpp, Line 713 GenUDF2 FS Layout: =-=-=-=-=-=-=-=-=-=- Sectors to be written: 2150272 Session Start: Sector 0 Volume Structure: Sector [0, 256] (257 Sectors) Meta Data: Sector [257, 265] (9 Sectors) Data: Sector [266, 2149969] (2149704 Sectors) After Data: Sector [2149970, 2149983] (14 Sectors) Trailer Track: Sector [2149984, 2150271] (288 Sectors) GenUDF2 Parameters: =-=-=-=-=-=-=-=-=-=- PrepTime: 07-07-2015 07:42:39 UDF Revision: 1.02 UDF Partition Type: Physical UDF Special Mode: None Bytes per Sector: 2048 Session Start: 0 Physical Partition Start: -1 Total Capacity: 2298496 Multi Session Mode: None Disc Type: DVD-R OS Class: 0 Volume ID: Nowy Allow Unicode Labels: 0 Duplicate Meta Data: 1 MS Info File: 00000000 VMS Rollback File: 00000000 Create ISO bridge: 0 ECC Block Length: 16 Sparing Packet Length: 32 Allocation Unit Size: 32 Alignment Unit Size: 16 Make Writable: 0 Access Type: Read-only 07:52:36 #30 Text 0 File WriterStatus.cpp, Line 245 <J: TOSHIBA CD/DVDW SDR5372V> start writing Lead-Out at LBA 2150272 (20CF80h), length 0 blocks 07:52:36 #31 PHASE 181 File dlgbrnst.cpp, Line 2088 Writing lead-out... 07:53:10 #32 Text 0 File DVDR.cpp, Line 3750 EndDAO: Last written address was 2150271 (20CF7Fh) 07:53:10 #33 Text 0 File DVDPlusDualLayer.cpp, Line 1464 SetDriveCaps: Set LAST LBA of layer 1 to 0 07:53:10 #34 PHASE 37 File dlgbrnst.cpp, Line 2088 Burn process completed successfully at 6x (8*310 KB/s) 07:53:10 #35 Text 0 File SCSIPTICommands.cpp, Line 454 SPTIDismountVolume - completed successfully for FSCTL_DISMOUNT_VOLUME 07:53:10 #36 Text 0 File Cdrdrv.cpp, Line 12266 DriveLocker: UnLockVolume completed 07:53:10 #37 Text 0 File SCSIPTICommands.cpp, Line 617 UnLockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL Ostatnio zmieniany przez czary2mary : 07.07.2015 o godz. 09:13 |
#ads | |
CDRinfo.pl
Reklamowiec
Data rejestracji: 29.12.2008
Lokalizacja: Sieć globalna
Wiek: 31
Posty: 1227
|
|
07.07.2015, 09:11 | #2 |
Zamaskowany
Data rejestracji: 12.10.2005
Posty: 22,280
|

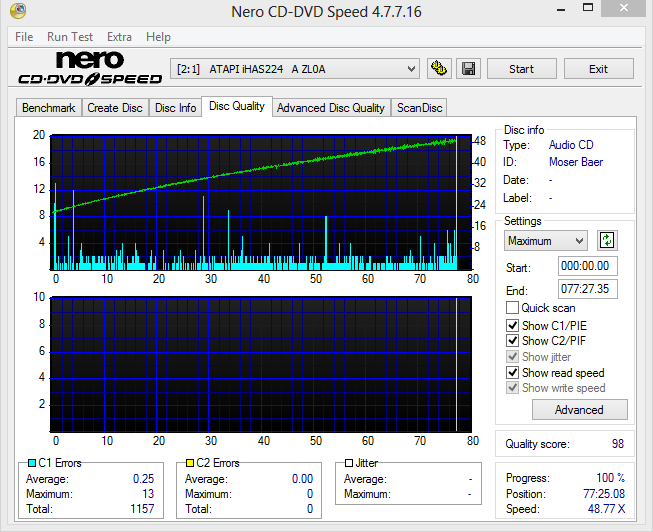

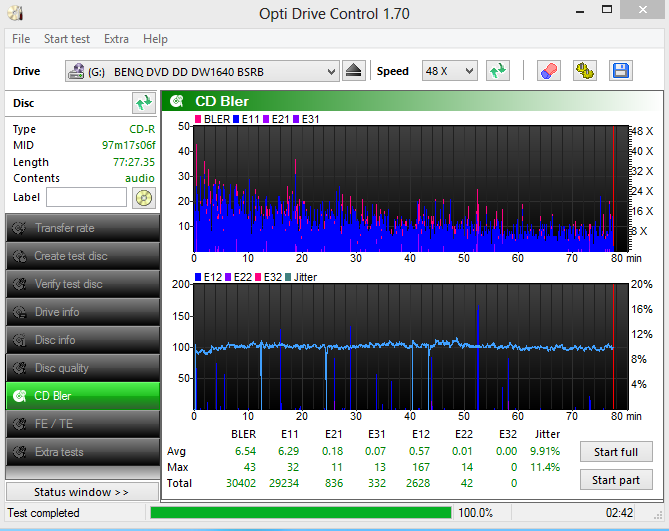

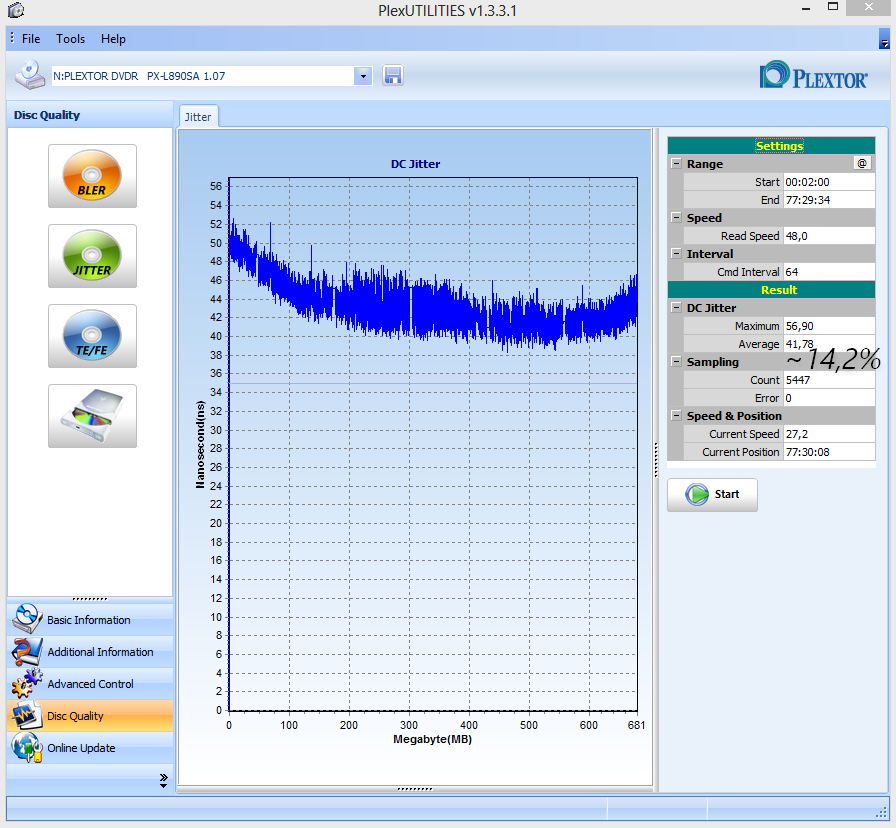

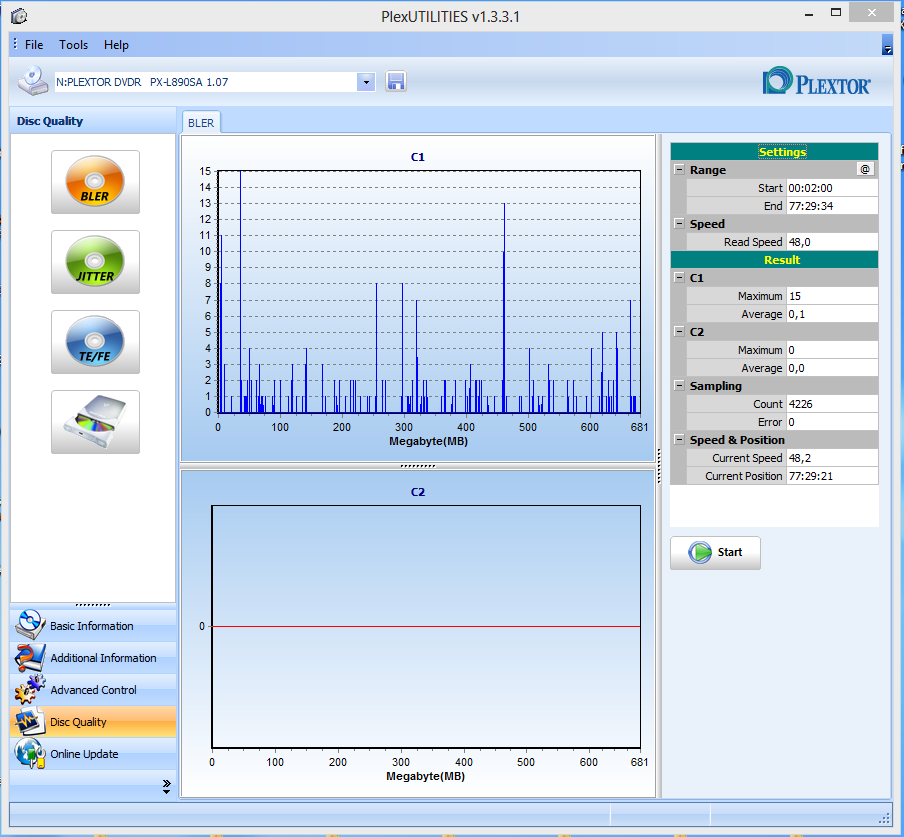

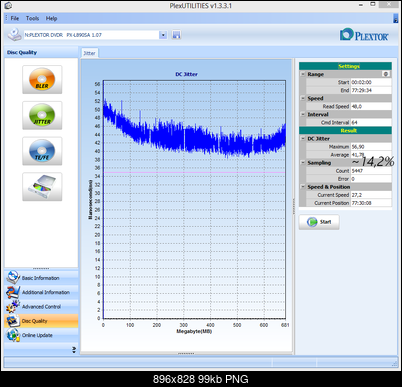

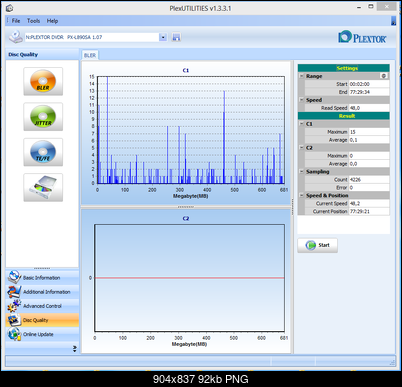

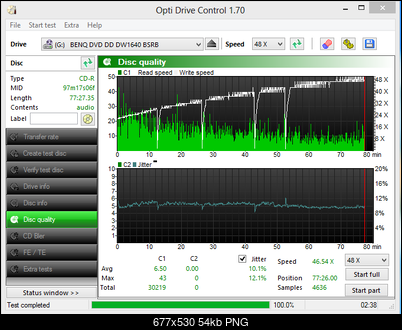

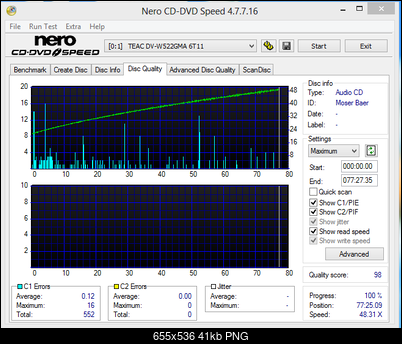

TDK CD-R MBI 97m17s06f Made in India
Toshiba SD-R5372V fw. TU15 Nero 2015 x16 |
07.07.2015, 09:12 | #3 |
Zamaskowany
Data rejestracji: 12.10.2005
Posty: 22,280
|

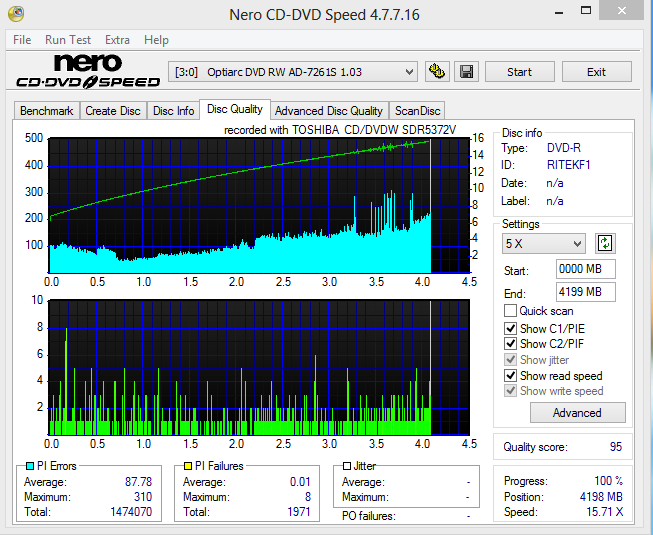

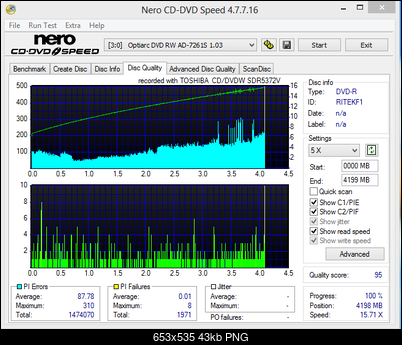

Platinium DVD-R RitekF1 Made in Tajwan
Toshiba SD-R5372V fw. TU15 Nero 2015 x6 Ostatnio zmieniany przez czary2mary : 07.07.2015 o godz. 09:36 |
|
|
