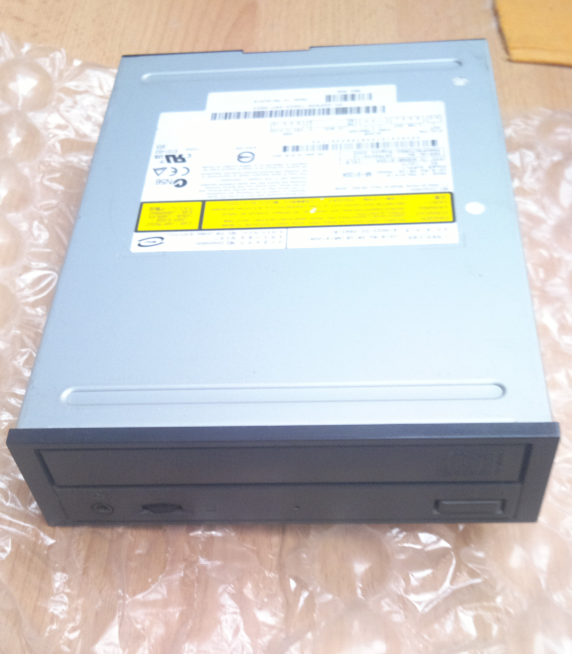

[Muzeum] NEC NR-9100A 2002r

[czary2mary]

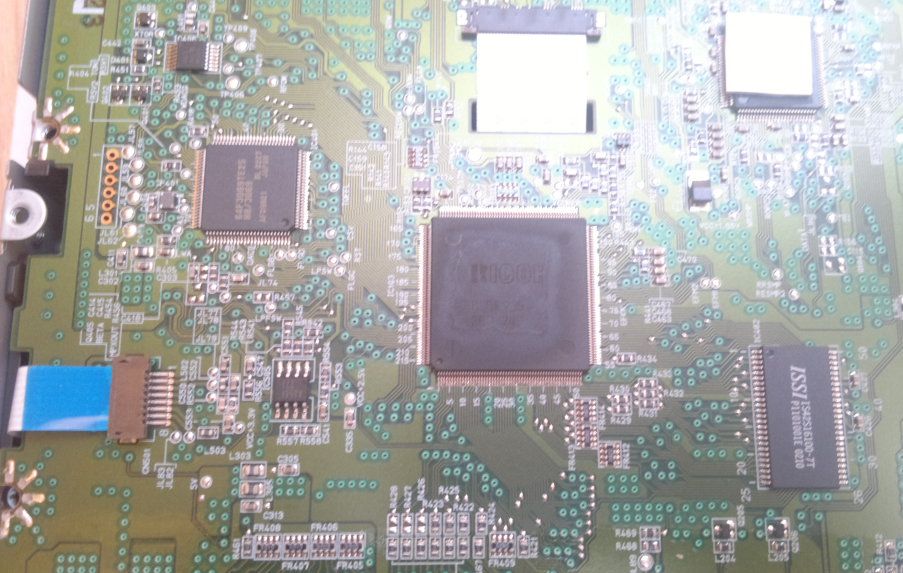

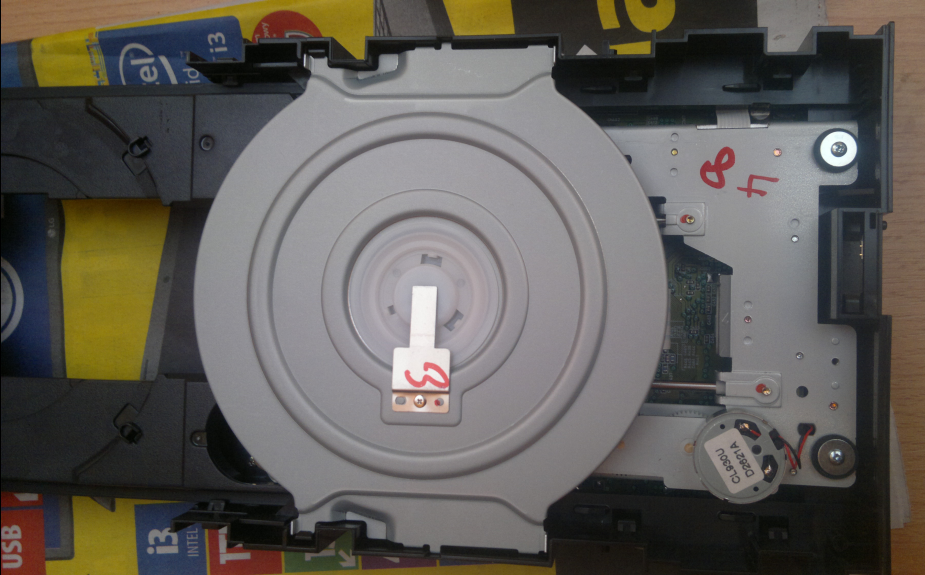

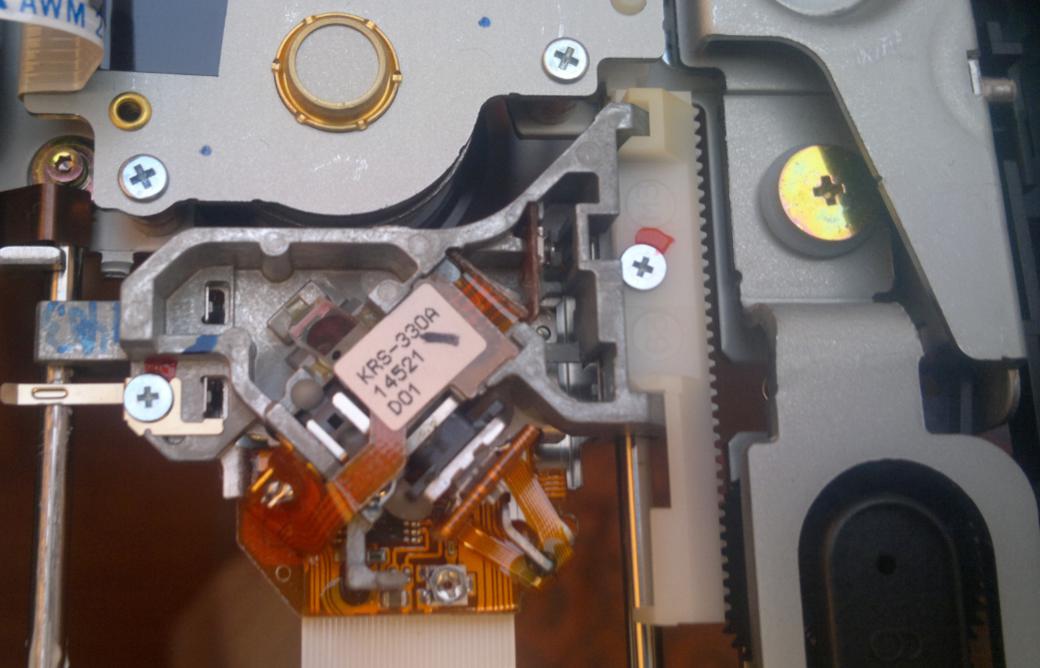

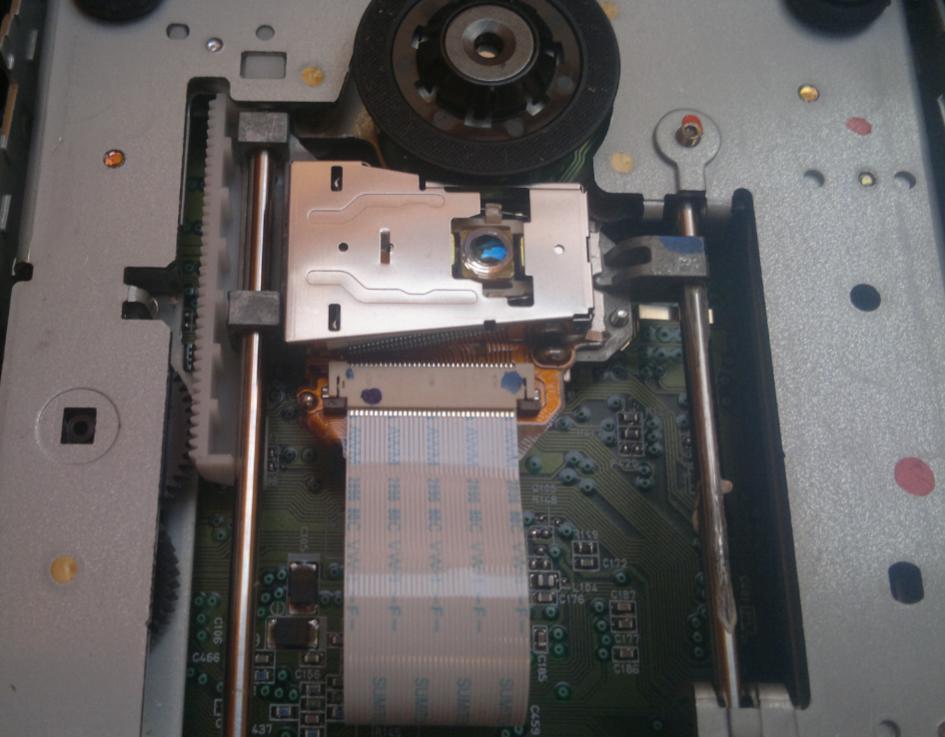

Wersja OEM Dell \ hardware chipset Ricoh RL5E935 + Sony CXA2649R+Hitachi 64F3069TE25 H8/3069 + OPU Sony KRS-330A

[czary2mary]

Platinum CD-R Plasmon 97m27s18f

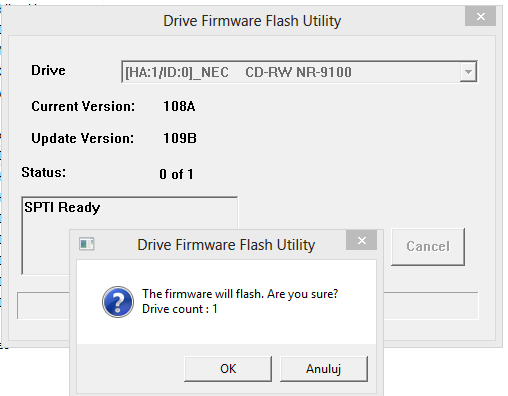

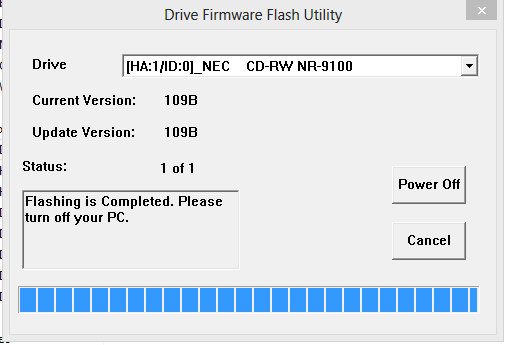

NEC NR-9100A fw.109B
NERO 2016 x8

log:

Windows 8 6.2
IA32
Nero Version: 17.0.5.0
Internal Version: 17,0,5,0

Recorder         : <_NEC CD-RW NR-9100A>          FW version: 109B - HA 1 TA 1 - 17.0.5.0
 Device bus      :  <>                            HA 1
 Host system bus :  <IDE>
 Drive buffer    :  2048kB
 Bus Type        :  via Inquiry data
CD/DVD-ROM       : <BENQ     DVD DD DW1640   >    FW version: BSRB - HA 1 TA 0 - 17.0.5.0
 Device bus      :  <>                            HA 1
 Host system bus :  <IDE>

=== Scsi-Device-Map ===

=== CDRom-Device-Map ===
BENQ DVD DD DW1640         G:   CdRom0
_NEC CD-RW NR-9100A        H:   CdRom1
ATAPI iHAS224   A          N:   CdRom2
PLEXTOR DVDR   PX-890SA    M:   CdRom3
=======================

AutoRun : 0
Excluded drive IDs:
WriteBufferSize: 83886080 (0) Byte
BUFE           : 0
Physical memory     : 2047MB (2097151kB)
Free physical memory: 2047MB (2097151kB)
Memory in use       : 24 %
Uncached PFiles: 0x0
Global Bus Type: default (0)
Check supported media : Disabled (0)

18.1.2017
Audio CD
16:17:36	#1 Text 0 File SCSIPTICommands.cpp, Line 617
	LockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL

16:17:37	#2 CDADOC -1 File Cdadoc.cpp, Line 1762
	Audio item log info:
	Audio document burn settings:
	=============================
	Burn mode: DAO,
	CD Text: On,
	Cache disk or network files: No,
	Cache small files: No,
	Cache files smaller than 65536 bytes.
	Audio Multisession: No
	List of audio tracks:
	=====================
	Track 01: Length: 05:09.66, Pause frames: 150, Filters: 1, Name: '01. Kult - Jeśli będziesz tam.flac'.
	Track 02: Length: 04:42.06, Pause frames: 150, Filters: 1, Name: '02. Kult - Madryt.flac'.
	Track 03: Length: 05:13.18, Pause frames: 150, Filters: 1, Name: '03. Kult - To nie jest kraj dla starszych ludzi.flac'.
	Track 04: Length: 04:16.54, Pause frames: 150, Filters: 1, Name: '04. Kult - Wstyd.flac'.
	Track 05: Length: 03:40.36, Pause frames: 150, Filters: 1, Name: '05. Kult - Cisza nocna.flac'.
	Track 06: Length: 04:35.21, Pause frames: 150, Filters: 1, Name: '06. Kult - Dwururka.flac'.
	Track 07: Length: 04:26.45, Pause frames: 150, Filters: 1, Name: '07. Kult - Bezbronni w furii.flac'.
	Track 08: Length: 05:30.07, Pause frames: 150, Filters: 1, Name: '08. Kult - Odejdę.flac'.
	Track 09: Length: 03:16.00, Pause frames: 150, Filters: 1, Name: '09. Kult - To nie jest zbrodnia.flac'.
	Track 10: Length: 03:24.51, Pause frames: 150, Filters: 1, Name: '10. Kult - Pęknięty dom (część 1).flac'.
	Track 11: Length: 04:43.16, Pause frames: 150, Filters: 1, Name: '11. Kult - Pęknięty dom (część 2).flac'.
	Track 12: Length: 03:16.70, Pause frames: 150, Filters: 1, Name: '12. Kult - Apokalipsa.flac'.
	Total size: 52:39.15

16:17:37	#3 Text 0 File Burncd.cpp, Line 3723
	_NEC CD-RW NR-9100A
	Włączono JustLink

16:17:37	#4 Text 0 File AudioCompilationImpl.cpp, Line 838
	DRM: StartDrmRecording(RealRec:1, ImageRec:0, Copies:1)
	DRM: Beginning burn process.

16:17:37	#5 PHASE 214 File dlgbrnst.cpp, Line 2095
	Generation of disc structures started

16:17:37	#6 PHASE 215 File dlgbrnst.cpp, Line 2095
	Generation of disc structures completed

16:17:37	#7 Text 0 File Burncd.cpp, Line 4086
	Turn on Disc-At-Once, using CD-R/RW media

16:17:37	#8 Text 0 File DlgWaitCD.cpp, Line 335
	[H: CD-RW NR-9100A  ] Last possible write address on media:   359846
	Last address to be written:             236789

16:17:37	#9 Text 0 File DlgWaitCD.cpp, Line 347
	[H: CD-RW NR-9100A  ] Write in overburning mode: NO (enabled: CD)

16:17:37	#10 Text 0 File DlgWaitCD.cpp, Line 3127
	Recorder: _NEC CD-RW NR-9100A;
	   CDR code: 00 97 27 18; OSJ entry from: Plasmon Data systems Ltd.
	   ATIP Data:
	     Special    Info [hex] 1: D0 00 A0, 2: 61 1B 12 (LI 97:27.18), 3: 4F 3B 4A (LO 79:59.74)
	     Additional Info [hex] 1: 00 00 80 (invalid), 2: 00 00 00 (invalid), 3: 00 00 00 (invalid)

16:17:37	#11 Text 0 File DlgWaitCD.cpp, Line 537
	[H: CD-RW NR-9100A  ] >>> Protocol of DlgWaitCD activities: <<<
	=========================================

16:17:37	#12 Text 0 File ThreadedTransferInterface.cpp, Line 879
	Setup items (after recorder preparation)
	 0: TRM_AUDIO_NOPRE (01. Kult - Jeśli będziesz tam.flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 23241 (23241) = #23241/5:9.66
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 23241 blocks [H: _NEC CD-RW NR-9100A]
	 1: TRM_AUDIO_NOPRE (02. Kult - Madryt.flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 21156 (21156) = #21156/4:42.6
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 21156 blocks [H: _NEC CD-RW NR-9100A]
	 2: TRM_AUDIO_NOPRE (03. Kult - To nie jest kraj dla starszych ludzi.flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 23493 (23493) = #23493/5:13.18
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 23493 blocks [H: _NEC CD-RW NR-9100A]
	 3: TRM_AUDIO_NOPRE (04. Kult - Wstyd.flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 19254 (19254) = #19254/4:16.54
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 19254 blocks [H: _NEC CD-RW NR-9100A]
	 4: TRM_AUDIO_NOPRE (05. Kult - Cisza nocna.flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 16536 (16536) = #16536/3:40.36
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 16536 blocks [H: _NEC CD-RW NR-9100A]
	 5: TRM_AUDIO_NOPRE (06. Kult - Dwururka.flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 20646 (20646) = #20646/4:35.21
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 20646 blocks [H: _NEC CD-RW NR-9100A]
	 6: TRM_AUDIO_NOPRE (07. Kult - Bezbronni w furii.flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 19995 (19995) = #19995/4:26.45
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 19995 blocks [H: _NEC CD-RW NR-9100A]
	 7: TRM_AUDIO_NOPRE (08. Kult - Odejdę.flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 24757 (24757) = #24757/5:30.7
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 24757 blocks [H: _NEC CD-RW NR-9100A]
	 8: TRM_AUDIO_NOPRE (09. Kult - To nie jest zbrodnia.flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 14700 (14700) = #14700/3:16.0
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 14700 blocks [H: _NEC CD-RW NR-9100A]
	 9: TRM_AUDIO_NOPRE (10. Kult - Pęknięty dom (część 1).flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 15351 (15351) = #15351/3:24.51
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 15351 blocks [H: _NEC CD-RW NR-9100A]
	10: TRM_AUDIO_NOPRE (11. Kult - Pęknięty dom (część 2).flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 21241 (21241) = #21241/4:43.16
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 21241 blocks [H: _NEC CD-RW NR-9100A]
	11: TRM_AUDIO_NOPRE (12. Kult - Apokalipsa.flac)
	    2 indices, index0 (150) not provided
	    original disc pos #0 + 14770 (14770) = #14770/3:16.70
	    relocatable, disc pos for caching/writing not required/not required
	    -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 14770 blocks [H: _NEC CD-RW NR-9100A]
	--------------------------------------------------------------

16:17:37	#13 Text 0 File ThreadedTransferInterface.cpp, Line 1095
	Prepare [H: _NEC CD-RW NR-9100A] for write in CUE-sheet-DAO
	DAO infos:
	==========
	 MCN: "             "
	 TOCType: 0x00; Session Closed, disc fixated
	 Tracks 1 to 12:                                  Idx 0         Idx 1      Next Trk
	   1: TRM_AUDIO_NOPRE, 2352/0x00, FilePos             0        352800      55015632, ISRC ""
	   2: TRM_AUDIO_NOPRE, 2352/0x00, FilePos      55015632      55368432     105127344, ISRC ""
	   3: TRM_AUDIO_NOPRE, 2352/0x00, FilePos     105127344     105480144     160735680, ISRC ""
	   4: TRM_AUDIO_NOPRE, 2352/0x00, FilePos     160735680     161088480     206373888, ISRC ""
	   5: TRM_AUDIO_NOPRE, 2352/0x00, FilePos     206373888     206726688     245619360, ISRC ""
	   6: TRM_AUDIO_NOPRE, 2352/0x00, FilePos     245619360     245972160     294531552, ISRC ""
	   7: TRM_AUDIO_NOPRE, 2352/0x00, FilePos     294531552     294884352     341912592, ISRC ""
	   8: TRM_AUDIO_NOPRE, 2352/0x00, FilePos     341912592     342265392     400493856, ISRC ""
	   9: TRM_AUDIO_NOPRE, 2352/0x00, FilePos     400493856     400846656     435421056, ISRC ""
	  10: TRM_AUDIO_NOPRE, 2352/0x00, FilePos     435421056     435773856     471879408, ISRC ""
	  11: TRM_AUDIO_NOPRE, 2352/0x00, FilePos     471879408     472232208     522191040, ISRC ""
	  12: TRM_AUDIO_NOPRE, 2352/0x00, FilePos     522191040     522543840     557282880, ISRC ""
	DAO layout:
	===========
	 ___Start_|____Track_|_Idx_|_CtrlAdr_|_____Size_|______NWA_|_RecDep__________
	     -150 |  lead-in |   0 |    0x01 |        0 |        0 | 0x00
	     -150 |        1 |   0 |    0x21 |        0 |        0 | 0x00
	        0 |        1 |   1 |    0x21 |    23241 |        0 | 0x00
	    23241 |        2 |   0 |    0x21 |        0 |        0 | 0x00
	    23391 |        2 |   1 |    0x21 |    21156 |    23391 | 0x00
	    44547 |        3 |   0 |    0x21 |        0 |        0 | 0x00
	    44697 |        3 |   1 |    0x21 |    23493 |    44697 | 0x00
	    68190 |        4 |   0 |    0x21 |        0 |        0 | 0x00
	    68340 |        4 |   1 |    0x21 |    19254 |    68340 | 0x00
	    87594 |        5 |   0 |    0x21 |        0 |        0 | 0x00
	    87744 |        5 |   1 |    0x21 |    16536 |    87744 | 0x00
	   104280 |        6 |   0 |    0x21 |        0 |        0 | 0x00
	   104430 |        6 |   1 |    0x21 |    20646 |   104430 | 0x00
	   125076 |        7 |   0 |    0x21 |        0 |        0 | 0x00
	   125226 |        7 |   1 |    0x21 |    19995 |   125226 | 0x00
	   145221 |        8 |   0 |    0x21 |        0 |        0 | 0x00
	   145371 |        8 |   1 |    0x21 |    24757 |   145371 | 0x00
	   170128 |        9 |   0 |    0x21 |        0 |        0 | 0x00
	   170278 |        9 |   1 |    0x21 |    14700 |   170278 | 0x00
	   184978 |       10 |   0 |    0x21 |        0 |        0 | 0x00
	   185128 |       10 |   1 |    0x21 |    15351 |   185128 | 0x00
	   200479 |       11 |   0 |    0x21 |        0 |        0 | 0x00
	   200629 |       11 |   1 |    0x21 |    21241 |   200629 | 0x00
	   221870 |       12 |   0 |    0x21 |        0 |        0 | 0x00
	   222020 |       12 |   1 |    0x21 |    14770 |   222020 | 0x00
	   236790 | lead-out |   1 |    0x01 |        0 |        0 | 0x00
	MediaType: CD-R

16:18:20	#14 Text 0 File SCSIPTICommands.cpp, Line 404
	SPTILockVolume - completed successfully for FSCTL_LOCK_VOLUME

16:18:20	#15 Text 0 File Burncd.cpp, Line 4984
	Caching options: cache CDRom or Network-No, small files-No (<64KB)

16:18:20	#16 PHASE 36 File dlgbrnst.cpp, Line 2095
	Burn process started at 8x (1*200 KB/s)

16:18:20	#17 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 0 (relocatable, no disc pos, no patch infos, orig at #0): write at #0

16:18:20	#18 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 1 (relocatable, no disc pos, no patch infos, orig at #0): write at #23391

16:18:20	#19 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 2 (relocatable, no disc pos, no patch infos, orig at #0): write at #44697

16:18:20	#20 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 3 (relocatable, no disc pos, no patch infos, orig at #0): write at #68340

16:18:20	#21 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 4 (relocatable, no disc pos, no patch infos, orig at #0): write at #87744

16:18:20	#22 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 5 (relocatable, no disc pos, no patch infos, orig at #0): write at #104430

16:18:20	#23 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 6 (relocatable, no disc pos, no patch infos, orig at #0): write at #125226

16:18:20	#24 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 7 (relocatable, no disc pos, no patch infos, orig at #0): write at #145371

16:18:20	#25 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 8 (relocatable, no disc pos, no patch infos, orig at #0): write at #170278

16:18:20	#26 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 9 (relocatable, no disc pos, no patch infos, orig at #0): write at #185128

16:18:20	#27 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 10 (relocatable, no disc pos, no patch infos, orig at #0): write at #200629

16:18:20	#28 Text 0 File ThreadedTransferInterface.cpp, Line 2926
	Verifying disc position of item 11 (relocatable, no disc pos, no patch infos, orig at #0): write at #222020

16:18:20	#29 Text 0 File Mmc.cpp, Line 17653
	StartDAO : CD-Text - On

16:18:20	#30 Text 0 File Mmc.cpp, Line 21661
	Set BUFE: JustLink -> ON

16:18:20	#31 Text 0 File Mmc.cpp, Line 17883
	CueData, Len=208
	21 00 00 41 00 00 00 00
	21 01 00 00 00 00 00 00
	21 01 01 00 00 00 02 00
	21 02 00 00 00 05 0b 42
	21 02 01 00 00 05 0d 42
	21 03 00 00 00 09 37 48
	21 03 01 00 00 09 39 48
	21 04 00 00 00 0f 0b 0f
	21 04 01 00 00 0f 0d 0f
	21 05 00 00 00 13 1d 45
	21 05 01 00 00 13 1f 45
	21 06 00 00 00 17 0c 1e
	21 06 01 00 00 17 0e 1e
	21 07 00 00 00 1b 31 33
	21 07 01 00 00 1b 33 33
	21 08 00 00 00 20 12 15
	21 08 01 00 00 20 14 15
	21 09 00 00 00 25 32 1c
	21 09 01 00 00 25 34 1c
	21 0a 00 00 00 29 08 1c
	21 0a 01 00 00 29 0a 1c
	21 0b 00 00 00 2c 23 04
	21 0b 01 00 00 2c 25 04
	21 0c 00 00 00 31 14 14
	21 0c 01 00 00 31 16 14
	01 aa 01 01 00 34 27 0f

16:18:23	#32 Text 0 File CDTextInfo.cpp, Line 225
	CD Text info to be written:
	 Album Title  : Wstyd
	 Album Artist : Kult
	 12 Tacks [Title] | [Artist] :
	   1: Je | Kult
	   2: Madryt | Kult
	   3: To nie jest kraj dla starszych ludzi | Kult
	   4: Wstyd | Kult
	   5: Cisza nocna | Kult
	   6: Dwururka | Kult
	   7: Bezbronni w furii | Kult
	   8: Odejd | Kult
	   9: To nie jest zbrodnia | Kult
	  10: P | Kult
	  11: P | Kult
	  12: Apokalipsa | Kult

16:18:23	#33 Text 0 File ThreadedTransfer.cpp, Line 275
	Pipe memory size 83836800

16:25:19	#34 Text 0 File WriterStatus.cpp, Line 245
	<H: _NEC CD-RW NR-9100A> start writing Lead-Out at LBA 236790 (39CF6h), length 0 blocks

16:25:34	#35 PHASE 37 File dlgbrnst.cpp, Line 2095
	Burn process completed successfully at 8x (1*200 KB/s)

16:25:34	#36 Text 0 File AudioCompilationImpl.cpp, Line 863
	DRM: DRM burn session terminated.

16:25:34	#37 Text 0 File AudioCompilationImpl.cpp, Line 892
	DRM: Closing entire DRM handling. Bye.

16:25:34	#38 Text 0 File SCSIPTICommands.cpp, Line 454
	SPTIDismountVolume - completed successfully for FSCTL_DISMOUNT_VOLUME

16:25:34	#39 Text 0 File Cdrdrv.cpp, Line 12297
	DriveLocker: UnLockVolume completed

16:25:34	#40 Text 0 File SCSIPTICommands.cpp, Line 617
	UnLockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL
