Napędy optyczne CD Tematy poswięcone nagrywarkom i nagrywaniu płyt CD-R/RW |
|
Opcje związane z dyskusją | Tryby wyświetlania |
22.10.2016, 05:12 | #1 |
Zamaskowany
Data rejestracji: 12.10.2005
Posty: 22,279
|

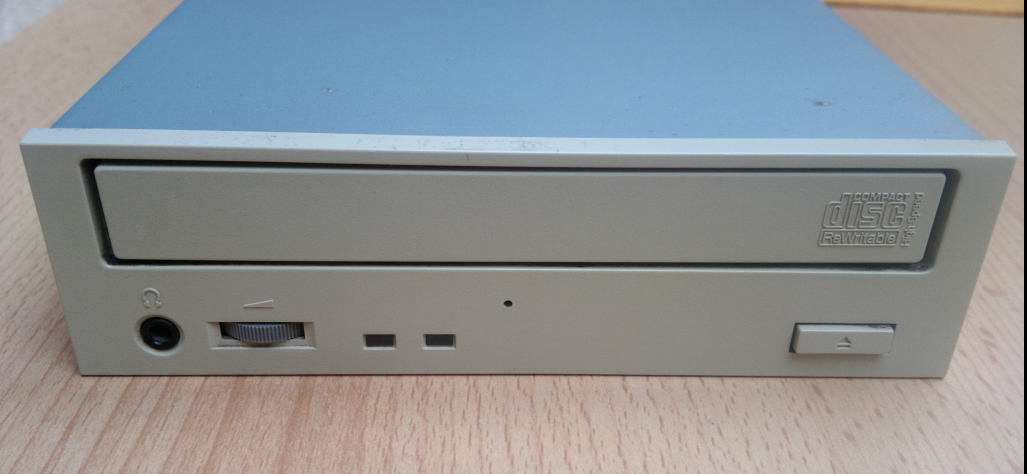

Teac CD-W512EB 2000r
Jedna z nielicznych konstrukcji własnych TEAC ...wersja EB czyli z BurnProof ....cena tego modelu w momencie wejścia na polski rynek wynosiła ~~1100zł .

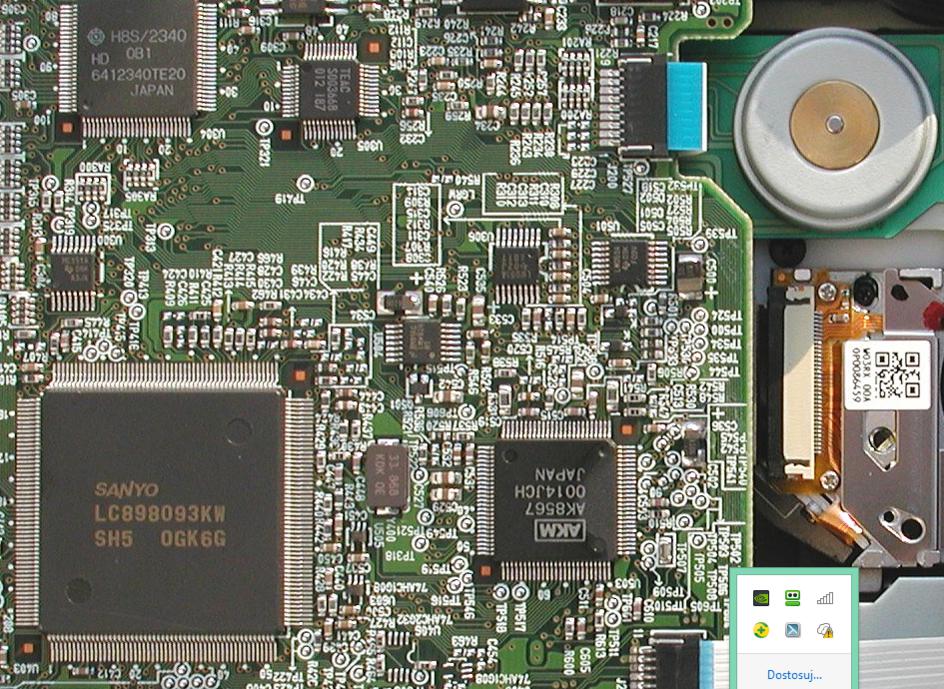

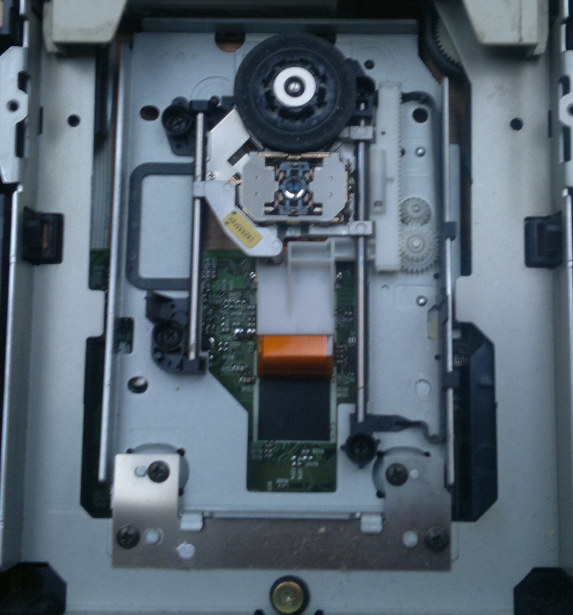

Świetnie napęd skonstruowany \ wykonany -bardzo cichy i niesamowicie wyważony...ale wystarczy spojrzeć na foty mechaniki i silnika żeby zrozumieć dlaczego tak jest ....płyta karetki lasera z blachy pancernej , łożysko silnika prawie jak w silnikach dla statków morskich... Oczywiście jeszcze świetny hardware = chipset Sanyo LC898093KN + mechanika TEAC + OPU Sanyo SF-W03RX.... Odczyt CD-ROM Ostatnio zmieniany przez czary2mary : 22.10.2016 o godz. 05:17 |
#ads | |
CDRinfo.pl
Reklamowiec
Data rejestracji: 29.12.2008
Lokalizacja: Sieć globalna
Wiek: 31
Posty: 1227
|
|
22.10.2016, 05:24 | #2 |
Zamaskowany
Data rejestracji: 12.10.2005
Posty: 22,279
|

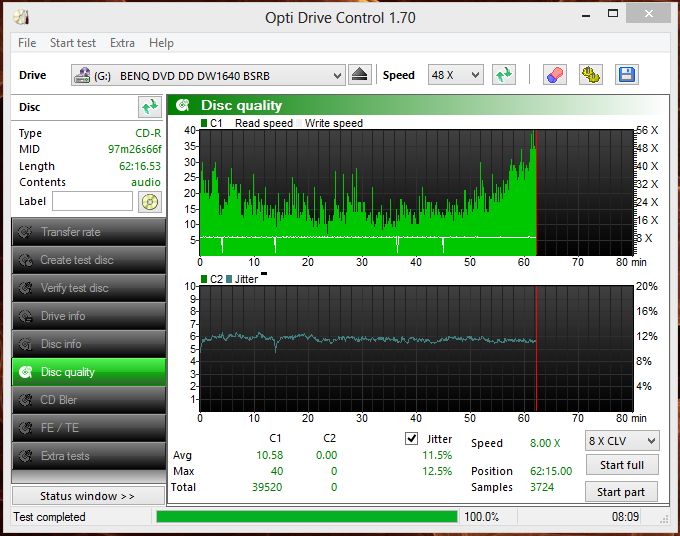

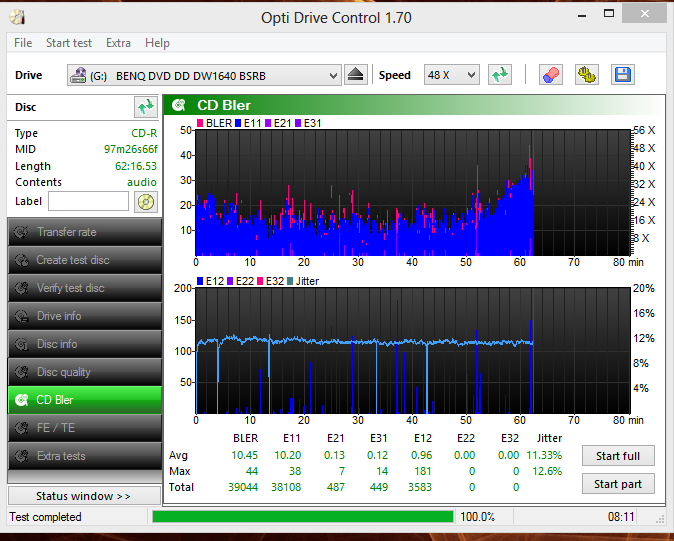

HP CD-R Made in Tajwan CMC 97m26s66f
Teac CD-W512EB fw.2.0K NERO 2017 x1 ( czas zapisu ok ~~70minut) log: Kod:
Windows 8 6.2 AMD64 Wow64Process Nero Version: 18.0.0.59 Internal Version: 18.0.0.59 Recorder : <TEAC CD-W512EB> FW version: 2.0K - HA 1 TA 1 - 18.0.0.59 Device bus : <> HA 1 Host system bus : <USB 2> Drive buffer : 2976kB Bus Type : via Inquiry data CD/DVD-ROM : <HL-DT-ST DVDRAM GT30N > FW version: 1.01 - HA 1 TA 0 - 18.0.0.59 Device bus : <> HA 1 Host system bus : <IDE> === Scsi-Device-Map === DiskPeripheral : KINGSTON SV300S37A120G iaStor Port 0 ID 0 DMA: On DiskPeripheral : WDC WD7500BPKX-75HPJT0 iaStor Port 0 ID 1 DMA: Off CdRomPeripheral : HL-DT-ST DVDRAM GT30N iaStor Port 0 ID 2 DMA: Off === CDRom-Device-Map === HL-DT-ST DVDRAM GT30N D: CdRom0 TEAC CD-W512EB F: CdRom1 ======================= AutoRun : 0 Excluded drive IDs: WriteBufferSize: 83886080 (0) Byte BUFE : 0 Physical memory : 4090MB (4189108kB) Free physical memory: 2413MB (2471640kB) Memory in use : 40 % Uncached PFiles: 0x0 Global Bus Type: default (0) Check supported media : Disabled (0) 21.10.2016 Audio CD 08:48:55 #1 Text 0 File SCSIPTICommands.cpp, Line 617 LockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL 08:48:55 #2 CDADOC -1 File Cdadoc.cpp, Line 1762 Audio item log info: Audio document burn settings: ============================= Burn mode: DAO, CD Text: On, Cache disk or network files: No, Cache small files: No, Cache files smaller than 65536 bytes. Audio Multisession: No List of audio tracks: ===================== Track 01: Length: 05:39.69, Pause frames: 150, Filters: 1, Name: '01. Namaste.flac'. Track 02: Length: 06:02.00, Pause frames: 150, Filters: 1, Name: '02. Always Perfect.flac'. Track 03: Length: 06:18.48, Pause frames: 150, Filters: 1, Name: '03. Celtic Blessing.flac'. Track 04: Length: 08:01.73, Pause frames: 150, Filters: 1, Name: '04. Into Your Hands.flac'. Track 05: Length: 06:22.35, Pause frames: 150, Filters: 1, Name: '05. Thy Will Be Done.flac'. Track 06: Length: 06:03.32, Pause frames: 150, Filters: 1, Name: '06. Dreamer.flac'. Track 07: Length: 05:14.05, Pause frames: 150, Filters: 1, Name: '07. Lotus Flower.flac'. Track 08: Length: 05:33.08, Pause frames: 150, Filters: 1, Name: '08. Just Passing Through.flac'. Track 09: Length: 06:48.36, Pause frames: 150, Filters: 1, Name: '09. Set Me Free.flac'. Track 10: Length: 05:54.47, Pause frames: 150, Filters: 1, Name: '10. Gate Gate.flac'. Total size: 62:18.53 08:48:55 #3 Text 0 File Burncd.cpp, Line 3723 TEAC CD-W512EB Włączono BURN-Proof 08:48:55 #4 Text 0 File AudioCompilationImpl.cpp, Line 838 DRM: StartDrmRecording(RealRec:1, ImageRec:0, Copies:1) DRM: Beginning burn process. 08:48:55 #5 PHASE 214 File dlgbrnst.cpp, Line 2095 Generation of disc structures started 08:48:55 #6 PHASE 215 File dlgbrnst.cpp, Line 2095 Generation of disc structures completed 08:48:55 #7 Text 0 File Burncd.cpp, Line 4086 Turn on Disc-At-Once, using CD-R/RW media 08:48:56 #8 Text 0 File DlgWaitCD.cpp, Line 335 [F: CD-W512EB ] Last possible write address on media: 359843 Last address to be written: 280252 08:48:56 #9 Text 0 File DlgWaitCD.cpp, Line 347 [F: CD-W512EB ] Write in overburning mode: NO (enabled: CD) 08:48:56 #10 Text 0 File DlgWaitCD.cpp, Line 3127 Recorder: TEAC CD-W512EB; CDR code: 00 97 26 66; OSJ entry from: CMC Magnetics Corporation ATIP Data: Special Info [hex] 1: D0 00 98, 2: 61 1A 42 (LI 97:26.66), 3: 4F 3B 47 (LO 79:59.71) Additional Info [hex] 1: 00 00 80 (invalid), 2: 00 80 00 (invalid), 3: 00 00 00 (invalid) 08:48:56 #11 Text 0 File DlgWaitCD.cpp, Line 537 [F: CD-W512EB ] >>> Protocol of DlgWaitCD activities: <<< ========================================= 08:48:56 #12 Text 0 File ThreadedTransferInterface.cpp, Line 879 Setup items (after recorder preparation) 0: TRM_AUDIO_NOPRE (01. Namaste.flac) 2 indices, index0 (150) not provided original disc pos #0 + 25494 (25494) = #25494/5:39.69 relocatable, disc pos for caching/writing not required/not required -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 25494 blocks [F: TEAC CD-W512EB] 1: TRM_AUDIO_NOPRE (02. Always Perfect.flac) 2 indices, index0 (150) not provided original disc pos #0 + 27150 (27150) = #27150/6:2.0 relocatable, disc pos for caching/writing not required/not required -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 27150 blocks [F: TEAC CD-W512EB] 2: TRM_AUDIO_NOPRE (03. Celtic Blessing.flac) 2 indices, index0 (150) not provided original disc pos #0 + 28398 (28398) = #28398/6:18.48 relocatable, disc pos for caching/writing not required/not required -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 28398 blocks [F: TEAC CD-W512EB] 3: TRM_AUDIO_NOPRE (04. Into Your Hands.flac) 2 indices, index0 (150) not provided original disc pos #0 + 36148 (36148) = #36148/8:1.73 relocatable, disc pos for caching/writing not required/not required -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 36148 blocks [F: TEAC CD-W512EB] 4: TRM_AUDIO_NOPRE (05. Thy Will Be Done.flac) 2 indices, index0 (150) not provided original disc pos #0 + 28685 (28685) = #28685/6:22.35 relocatable, disc pos for caching/writing not required/not required -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 28685 blocks [F: TEAC CD-W512EB] 5: TRM_AUDIO_NOPRE (06. Dreamer.flac) 2 indices, index0 (150) not provided original disc pos #0 + 27257 (27257) = #27257/6:3.32 relocatable, disc pos for caching/writing not required/not required -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 27257 blocks [F: TEAC CD-W512EB] 6: TRM_AUDIO_NOPRE (07. Lotus Flower.flac) 2 indices, index0 (150) not provided original disc pos #0 + 23555 (23555) = #23555/5:14.5 relocatable, disc pos for caching/writing not required/not required -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 23555 blocks [F: TEAC CD-W512EB] 7: TRM_AUDIO_NOPRE (08. Just Passing Through.flac) 2 indices, index0 (150) not provided original disc pos #0 + 24983 (24983) = #24983/5:33.8 relocatable, disc pos for caching/writing not required/not required -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 24983 blocks [F: TEAC CD-W512EB] 8: TRM_AUDIO_NOPRE (09. Set Me Free.flac) 2 indices, index0 (150) not provided original disc pos #0 + 30636 (30636) = #30636/6:48.36 relocatable, disc pos for caching/writing not required/not required -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 30636 blocks [F: TEAC CD-W512EB] 9: TRM_AUDIO_NOPRE (10. Gate Gate.flac) 2 indices, index0 (150) not provided original disc pos #0 + 26597 (26597) = #26597/5:54.47 relocatable, disc pos for caching/writing not required/not required -> TRM_AUDIO_NOPRE, 2352, config 0, wanted index0 0 blocks, length 26597 blocks [F: TEAC CD-W512EB] -------------------------------------------------------------- 08:48:56 #13 Text 0 File ThreadedTransferInterface.cpp, Line 1095 Prepare [F: TEAC CD-W512EB] for write in CUE-sheet-DAO DAO infos: ========== MCN: " " TOCType: 0x00; Session Closed, disc fixated Tracks 1 to 10: Idx 0 Idx 1 Next Trk 1: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 0 352800 60314688, ISRC "" 2: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 60314688 60667488 124524288, ISRC "" 3: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 124524288 124877088 191669184, ISRC "" 4: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 191669184 192021984 277042080, ISRC "" 5: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 277042080 277394880 344862000, ISRC "" 6: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 344862000 345214800 409323264, ISRC "" 7: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 409323264 409676064 465077424, ISRC "" 8: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 465077424 465430224 524190240, ISRC "" 9: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 524190240 524543040 596598912, ISRC "" 10: TRM_AUDIO_NOPRE, 2352/0x00, FilePos 596598912 596951712 659507856, ISRC "" DAO layout: =========== ___Start_|____Track_|_Idx_|_CtrlAdr_|_____Size_|______NWA_|_RecDep__________ -150 | lead-in | 0 | 0x01 | 0 | 0 | 0x00 -150 | 1 | 0 | 0x21 | 0 | 0 | 0x00 0 | 1 | 1 | 0x21 | 25494 | 0 | 0x00 25494 | 2 | 0 | 0x21 | 0 | 0 | 0x00 25644 | 2 | 1 | 0x21 | 27150 | 25644 | 0x00 52794 | 3 | 0 | 0x21 | 0 | 0 | 0x00 52944 | 3 | 1 | 0x21 | 28398 | 52944 | 0x00 81342 | 4 | 0 | 0x21 | 0 | 0 | 0x00 81492 | 4 | 1 | 0x21 | 36148 | 81492 | 0x00 117640 | 5 | 0 | 0x21 | 0 | 0 | 0x00 117790 | 5 | 1 | 0x21 | 28685 | 117790 | 0x00 146475 | 6 | 0 | 0x21 | 0 | 0 | 0x00 146625 | 6 | 1 | 0x21 | 27257 | 146625 | 0x00 173882 | 7 | 0 | 0x21 | 0 | 0 | 0x00 174032 | 7 | 1 | 0x21 | 23555 | 174032 | 0x00 197587 | 8 | 0 | 0x21 | 0 | 0 | 0x00 197737 | 8 | 1 | 0x21 | 24983 | 197737 | 0x00 222720 | 9 | 0 | 0x21 | 0 | 0 | 0x00 222870 | 9 | 1 | 0x21 | 30636 | 222870 | 0x00 253506 | 10 | 0 | 0x21 | 0 | 0 | 0x00 253656 | 10 | 1 | 0x21 | 26597 | 253656 | 0x00 280253 | lead-out | 1 | 0x01 | 0 | 0 | 0x00 MediaType: CD-R 08:49:24 #14 Text 0 File SCSIPTICommands.cpp, Line 404 SPTILockVolume - completed successfully for FSCTL_LOCK_VOLUME 08:49:24 #15 Text 0 File Burncd.cpp, Line 4984 Caching options: cache CDRom or Network-No, small files-No (<64KB) 08:49:24 #16 PHASE 36 File dlgbrnst.cpp, Line 2095 Burn process started at 1x (150 KB/s) 08:49:24 #17 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 0 (relocatable, no disc pos, no patch infos, orig at #0): write at #0 08:49:24 #18 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 1 (relocatable, no disc pos, no patch infos, orig at #0): write at #25644 08:49:24 #19 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 2 (relocatable, no disc pos, no patch infos, orig at #0): write at #52944 08:49:24 #20 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 3 (relocatable, no disc pos, no patch infos, orig at #0): write at #81492 08:49:24 #21 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 4 (relocatable, no disc pos, no patch infos, orig at #0): write at #117790 08:49:24 #22 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 5 (relocatable, no disc pos, no patch infos, orig at #0): write at #146625 08:49:24 #23 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 6 (relocatable, no disc pos, no patch infos, orig at #0): write at #174032 08:49:24 #24 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 7 (relocatable, no disc pos, no patch infos, orig at #0): write at #197737 08:49:24 #25 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 8 (relocatable, no disc pos, no patch infos, orig at #0): write at #222870 08:49:24 #26 Text 0 File ThreadedTransferInterface.cpp, Line 2926 Verifying disc position of item 9 (relocatable, no disc pos, no patch infos, orig at #0): write at #253656 08:49:24 #27 Text 0 File Mmc.cpp, Line 17653 StartDAO : CD-Text - On 08:49:24 #28 Text 0 File Mmc.cpp, Line 21661 Set BUFE: BURN-Proof -> ON 08:49:24 #29 Text 0 File Mmc.cpp, Line 17883 CueData, Len=176 21 00 00 41 00 00 00 00 21 01 00 00 00 00 00 00 21 01 01 00 00 00 02 00 21 02 00 00 00 05 29 45 21 02 01 00 00 05 2b 45 21 03 00 00 00 0b 2d 45 21 03 01 00 00 0b 2f 45 21 04 00 00 00 12 06 2a 21 04 01 00 00 12 08 2a 21 05 00 00 00 1a 0a 28 21 05 01 00 00 1a 0c 28 21 06 00 00 00 20 23 00 21 06 01 00 00 20 25 00 21 07 00 00 00 26 28 20 21 07 01 00 00 26 2a 20 21 08 00 00 00 2b 38 25 21 08 01 00 00 2b 3a 25 21 09 00 00 00 31 1f 2d 21 09 01 00 00 31 21 2d 21 0a 00 00 00 38 16 06 21 0a 01 00 00 38 18 06 01 aa 01 01 00 3e 12 35 08:49:24 #30 Text 0 File CDTextInfo.cpp, Line 225 CD Text info to be written: Album Title : Namaste Album Artist : Terry Oldfield & Soraya 10 Tacks [Title] | [Artist] : 1: Namaste | Terry Oldfield & Soraya 2: Always Perfect | Terry Oldfield & Soraya 3: Celtic Blessing | Terry Oldfield & Soraya 4: Into Your Hands | Terry Oldfield & Soraya 5: Thy Will Be Done | Terry Oldfield & Soraya 6: Dreamer | Terry Oldfield & Soraya 7: Lotus Flower | Terry Oldfield & Soraya 8: Just Passing Through | Terry Oldfield & Soraya 9: Set Me Free | Terry Oldfield & Soraya 10: Gate Gate | Terry Oldfield & Soraya 08:49:24 #31 Text 0 File ThreadedTransfer.cpp, Line 275 Pipe memory size 83836800 09:54:21 #32 Text 0 File WriterStatus.cpp, Line 245 <F: TEAC CD-W512EB> start writing Lead-Out at LBA 280253 (446BDh), length 0 blocks 09:56:31 #33 PHASE 37 File dlgbrnst.cpp, Line 2095 Burn process completed successfully at 1x (150 KB/s) 09:56:31 #34 Text 0 File AudioCompilationImpl.cpp, Line 863 DRM: DRM burn session terminated. 09:56:31 #35 Text 0 File AudioCompilationImpl.cpp, Line 892 DRM: Closing entire DRM handling. Bye. 09:56:31 #36 Text 0 File SCSIPTICommands.cpp, Line 454 SPTIDismountVolume - completed successfully for FSCTL_DISMOUNT_VOLUME 09:56:31 #37 Text 0 File Cdrdrv.cpp, Line 12297 DriveLocker: UnLockVolume completed 09:56:31 #38 Text 0 File SCSIPTICommands.cpp, Line 617 UnLockMCN - completed sucessfully for IOCTL_STORAGE_MCN_CONTROL |
22.10.2016, 15:55 | #3 |
Moderator
Data rejestracji: 21.02.2014
Lokalizacja: NS2
Posty: 2,415
|
Wow, jak oceniasz zapis tego nośnika? Dla mnie bardzo ładnie
Mają coś w sobie te "pudła" jednak |
22.10.2016, 16:35 | #4 |
Zamaskowany
Data rejestracji: 12.10.2005
Posty: 22,279
|
Na pewno dużo lepiej by sobie poradził na starszych konstrukcjach nośników...te nowe za bardzo nie nadają się do tak wolnego zapisu..
Chciałem sprawdzić te bardzo słabo wyważone płyty HP CD-R \CMC Magnetic w wolnym zapisie na napędzie z bardzo dobrą stabilizacją .. |
|
|
