DVRTool v1.0 - firmware flashing utility for Pioneer DVR/BDR drives

[czary2mary]

[jadburner]

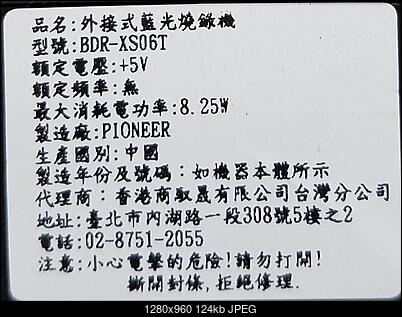

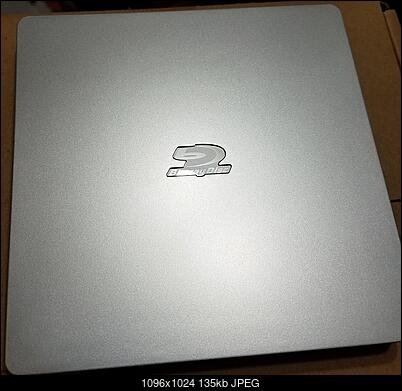

BDR-XS06T:

[jadburner]

I also have a BDR-XS05T, but I'm still looking for it.

[czary2mary]

Napisany przez jadburner

BDR-XS06T:

Napisany przez jadburner

I also have a BDR-XS05T, but I'm still looking for it.

Excellently .
We ask you to dump Eeprom and settings.
The rest of the information and soft send to PM.

[czary2mary]

[czary2mary]

[blackened2687]

jadburner, thank you very much for the data dumps! Helped me a lot to figure out some drive settings.

A question: have you got any slim TEAC drive from DV-W28xxxx series? There is a rumor that some of these drives are rebadged Pioneer drives, but I don't have access to any of them to check it out.

[czary2mary]

Napisany przez blackened2687

jadburner, thank you very much for the data dumps! Helped me a lot to figure out some drive settings.

A question: have you got any slim TEAC drive from DV-W28xxxx series? There is a rumor that some of these drives are rebadged Pioneer drives, but I don't have access to any of them to check it out.

TEAC DV-W28xxxx-

Ktoś mnie się kiedyś na PW pytał o ten model ..jak znajdę wiadomość to spytam się czy zakupił ...

@jadburner wspominał mi coś że na urlop się wybiera
Jak się odezwie na PW to spytam się go czy przypadkiem nie ma w szafie TEAC DV-W28xxxx-

[czary2mary]

[czary2mary]

[czary2mary]

[jadburner]

Napisany przez blackened2687

jadburner, thank you very much for the data dumps! Helped me a lot to figure out some drive settings.

A question: have you got any slim TEAC drive from DV-W28xxxx series? There is a rumor that some of these drives are rebadged Pioneer drives, but I don't have access to any of them to check it out.

blackened2687 - Just saw this. You're welcome for the data dumps. I still need to get you the dumps from my BDR-XS05T. Soon.

I'm pretty sure I have a couple hiding around here somewhere. I'll try to find them for you.

Good to hear from you.

[czary2mary]

[blackened2687]

jadburner, thank you!

To gather the necessary drive information more easily, I've made a small one-button program (called it Pioneer Data Dumper):

http://www60.zippyshare.com/v/Tt8wTvdO/file.html

The usage is simple as possible: enter the drive letter followed with a colon and click [Dump Data]. Resulting file is something that I need to properly add the drive support.

To everybody: If you will find some slim Pioneer BD drive from the list below, please dump its data using the Pioneer Data Dumper and send the file to czary2mary or to me. It will greatly help to add the most of existing Pioneer drives to the program.

Wszystkim: Je***347;li ktokolwiek znajdzie jaki***347; nap***281;d slim Pioneer BD z poni***380;szej listy, serdecznie prosz***281; o dump danych za pomoc***261; Pioneer Data Dumper i o wysy***322;ce plika do czary2mary lub do mnie. Bardzo to pomo***380;e mi w dodaniu wi***281;kszo***347;ci istniej***261;cych nap***281;dów Pioneer do programu.

List:

BDR-TD02 (BDR-TD02VA)
BDC-TD02 (BDC-TD02VA, BDC-TD02RS)
BDC-TS02 (BDC-TS02PB)
BDR-TS04 (BDR-TS04FAD, TEAC BD-W26SS-BM3)
BDC-US01 (BDC-US01VA, TEAC BD-C16SS-A90)
BDR-UD02 (BDR-UD02AS, BDR-UD02B, BDR-UD02FAN, BDR-UD02TBD, BDR-UD02VA, BDR-UD02VB)
BDC-UD02 (BDC-UD02AS, BDC-UD02TBD, BDC-UD02VA)
BDC-UD03 (BDC-UD03AS)
BDR-UD04 (Logitec LBD-PUD6U3L)

[jadburner]

Found one of them.

Teac DV-W28S-V42

From DVRTool:

Drive Information:

Model Name : TEAC DV-W28S-VS
Firmware Rev : G.V0
Extra Info :
Serial Number : XXXXXXXXXX****
Buffer Size : 2000 kiB

Additional Drive Information:

Label Code : ****************
Hardware Rev : STE 0282
Kernel Type : TEAC
Firmware Type : TEAC
Kernel Version : 0001

Drive is in normal mode.

Firmware flashing support : YES
Firmware dumping support : YES

Drive Capabilities:

CD-ROM : R BD-ROM : -
CD-R : R/W BD-R : -
CD-RW : R/W BD-R XL : -
DVD-ROM : R BD-RE : -
DVD-R : R/W BD-RE XL : -
DVD-R DL : R/W HD DVD-ROM : -
DVD-RW : R/W HD DVD-R : -
DVD+R : R/W HD DVD-R DL : -
DVD+R DL : R/W HD DVD-RW : -
DVD+RW : R/W LabelFlash : NO
DVD-RAM : R/W LightScribe : YES

Drive Region Settings:

RPC Scheme : RPC-2
Current Region : 0
Changes Left : 5 (available to user)
Resets Left : 4 (available only to vendor)
Region State : Region is not set
