DVRTool v1.0 - firmware flashing utility for Pioneer DVR/BDR drives

[techguru]

think the last time I updated it was 2018

BDR-209DBK_FW151EU.exe
(5.47 MB)
updated August 9, 2018

[jimina09]

Hello



I got BDR-209MBK

Is it possible to make this UHD friendly with clossflash?
The Drive platform of this drive is "RS8F00"
It seems to be different hardware from the general 209 Drive platform "RS8600"


Drive information

Manufacturer: PIONEER
Product: BD-RW BDR-209M

Revision: 1.53

Serial number:
Firmware date: 2019-03-07
Bus encryption flags: 1B
Highest AACS version: 81


LibreDrive Information

Status: Possible, not yet enabled
Drive platform: Pioneer RS8F00
Firmware version: ID04



thank you

[jadburner]

Napisany przez jimina09

Hello



I got BDR-209MBK

Is it possible to make this UHD friendly with clossflash?
The Drive platform of this drive is "RS8F00"
It seems to be different hardware from the general 209 Drive platform "RS8600"


Drive information

Manufacturer: PIONEER
Product: BD-RW BDR-209M

Revision: 1.53

Serial number:
Firmware date: 2019-03-07
Bus encryption flags: 1B
Highest AACS version: 81


LibreDrive Information

Status: Possible, not yet enabled
Drive platform: Pioneer RS8F00
Firmware version: ID04



thank you

Welcome to the forums, jimina09! PM sent.

[Baxati]

Hi, I'm interested in flashing my BDR-XD07TS to XD07TUHD, is it possible with BDRFlashtool and if so may i get a copy ?


Drive Information
OS device name: F:
Manufacturer: PIONEER
Product: BD-RW BDR-XD07
Revision: 1.03
Serial number: BADLXXXXXXXX
Firmware date: 2020-08-20
Bus encryption flags: 13

LibreDrive Information
Status: Enabled
Drive platform: RS8D30
Firmware name: PIONEER BDR-BDS7
Firmware type: Original (unpatched)
Firmware version: 1.03
DVD all regions: Yes
BD raw data read: Yes
BD raw metadata read: Yes
Unrestricted read speed: Yes

[jadburner]

Napisany przez Baxati

Hi, I'm interested in flashing my BDR-XD07TS to XD07TUHD, is it possible with BDRFlashtool and if so may i get a copy ?


Drive Information
OS device name: F:
Manufacturer: PIONEER
Product: BD-RW BDR-XD07
Revision: 1.03
Serial number: BADLXXXXXXXX
Firmware date: 2020-08-20
Bus encryption flags: 13

LibreDrive Information
Status: Enabled
Drive platform: RS8D30
Firmware name: PIONEER BDR-BDS7
Firmware type: Original (unpatched)
Firmware version: 1.03
DVD all regions: Yes
BD raw data read: Yes
BD raw metadata read: Yes
Unrestricted read speed: Yes

Welcome to the forums, Baxati! PM sent.

[techguru]

whats the difference between like a firmware that says ID60 and one that says ID72

[czary2mary]

@jadburner

You will definitely be happy...
PR1ML-C is made and ready for you...

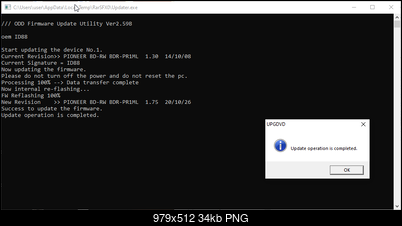

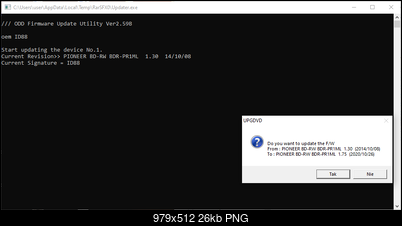

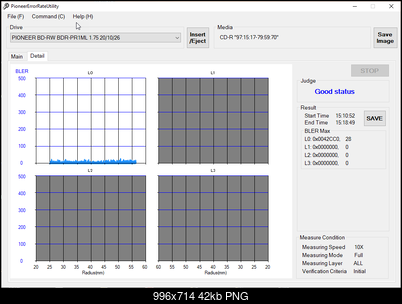

Updated to the latest fw.1.75, works very nicely, tests very well in the Pioneer Error Rate Utility program.....I feel sorry to part with it.......
Do you have Pioneer Error Rate Utility 2.6.1.0? Have I sent you? Because Windows 10 requires this version for proper operation...

[jadburner]

Napisany przez czary2mary

@jadburner

You will definitely be happy...
PR1ML-C is made and ready for you...
Updated to the latest fw.1.75, works very nicely, tests very well in the Pioneer Error Rate Utility program.....I feel sorry to part with it.......
Do you have Pioneer Error Rate Utility 2.6.1.0? Have I sent you? Because Windows 10 requires this version for proper operation...

Awesome! Thank you, czary2mary! I'm very excited! PM sent.

[techguru]

do you think its necessary to flash kernals as well or just the main firmware
I used to crossflash cdrw and dvdrw drives back in the day and all you had to do is flash the firmware

[jadburner]

Napisany przez techguru

do you think its necessary to flash kernals as well or just the main firmware
I used to crossflash cdrw and dvdrw drives back in the day and all you had to do is flash the firmware

When crossflashing Pioneer drives, we provide you with the kernel and firmware. You should use both. Many Pioneer firmware .exe files actually contain both kernels and firmware.

[techguru]

Napisany przez jadburner

When crossflashing Pioneer drives, we provide you with the kernel and firmware. You should use both. Many Pioneer firmware .exe files actually contain both kernels and firmware.

can I extract the firmware from the downloaded exe firmware update file?

[jadburner]

Napisany przez techguru

can I extract the firmware from the downloaded exe firmware update file?

Yes, if you're careful you can use something like 7-Zip to extract the firmware, and kernel if present, from a Pioneer flasher (.exe). They are normally in the Updater's BINARY folder. 132 is the firmware and 131 (if present) is the kernel.

Be careful not to extract and flash / crossflash your drive to any Pioneer firmware dated December 2022 or later. Doing so will remove UHD capability from the drive and prevent further crossflashing.

[techguru]

Napisany przez jadburner

Yes, if you're careful you can use something like 7-Zip to extract the firmware, and kernel if present, from a Pioneer flasher (.exe). They are normally in the Updater's BINARY folder. 132 is the firmware and 131 (if present) is the kernel.

Be careful not to extract and flash / crossflash your drive to any Pioneer firmware dated December 2022 or later. Doing so will remove UHD capability from the drive and prevent further crossflashing.

would that still be true for someone who had a chip programmer?
I got a clippable chip programmer

[techguru]

for file BDR-S11JX_FW153EU.exe
there is 2 folders extracted from it
11TM_BDR-S11JX_FW153EU
11T_BDR-S11JX_FW153EU

if im flashing a 209D any idea which one I should use
the TM one contains a kernal file
the T one doesn't

[jadburner]

Napisany przez techguru

for file BDR-S11JX_FW153EU.exe
there is 2 folders extracted from it
11TM_BDR-S11JX_FW153EU
11T_BDR-S11JX_FW153EU

if im flashing a 209D any idea which one I should use
the TM one contains a kernal file
the T one doesn't

11T_BDR-S11JX_FW153EU.exe is for hardware SAT 8800.

11TM_BDR-S11JX_FW153EU.exe is for SAT 8801.

If your 209D has hardware SAT 8600, use the SAT 8800 firmware. If your 209D is SAT 8601, use the SAT 8801 firmware.
