[Mini Test] Plextor Test - PXL-910S Professional Acumen Disc Editon

[Kirby]

My new Plextor Professional PXL-910S Acumen Disc Editon

Shipped from US in a real cheap Bubble Envelope.
I really can`t understand, why a Company uses such cheap envelopes for costumers.
They sell a Professional Product, but they invest no Money in packaging. - I don`t care, if i have to pay 2-5 Dollar more.

The burner is not damaged ok, but that was pure luck.
So - Next time "Acumen" - I have to say no!!!!!!

The burner looks like a Lite-On Professional, maybe they sell it under the Plextor Label.

Now the Info from "Acumen" on Amazon.com https://www.amazon.com/Plextor-PXL-9...s%2C417&sr=8-1

Product description
Acumen Disc introduces a new edition of the brand new drive from Plextor. Exclusive edition that is a professional grade drive that is compatible with major brand of Optical dvd and CD Discs.

Perfect for making copies on your desktop computer with SATA Connections (please check your computer's connection to see if this drive matches).

The PXL-910S is a highly accurate internal Half Height CD/DVD RW optical disc drive developed for high quality DVD and CD burning. The Plextor brand is widely known as producing the highest quality CD, especially audio CD, duplications and the PXL-910S follows that path of CD Audio perfection. For those audiophiles who want to ensure the purest sound quality and clearest playback, the Plextor PXL-910S is your best bet.

The PXL-910S is extremely flexible offering full hardware and software support for a wide range of optical media formats including specialty archival media. Designed for use with multiple hardware applications, including being integrated within a computer, network server, and in combination with a duplicator grade controller and manufactured with superior Plextor quality.

[Kirby]

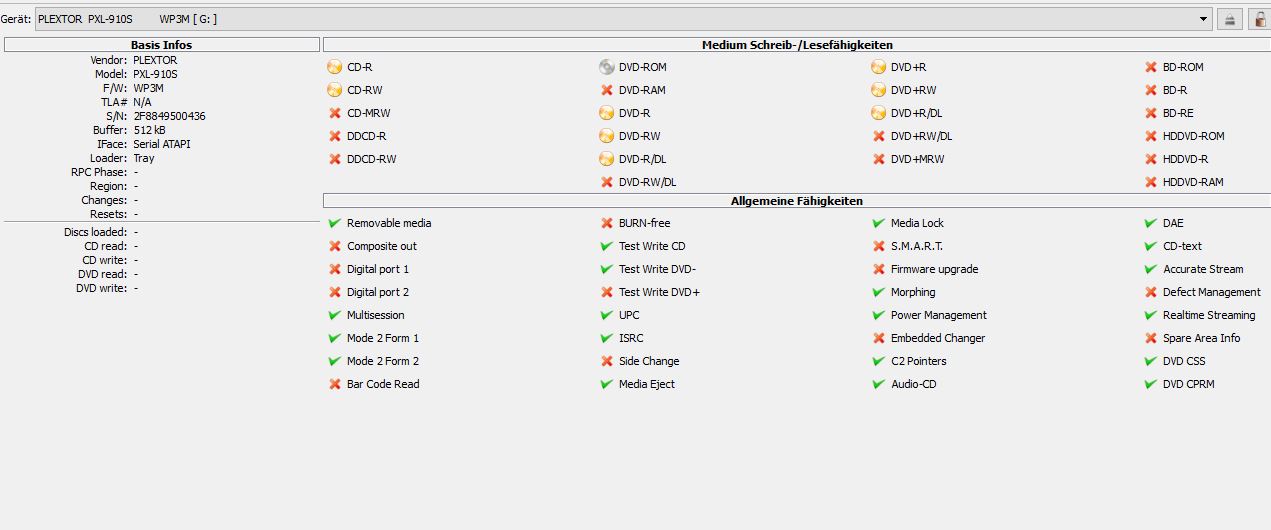

Now the Interesting Part:

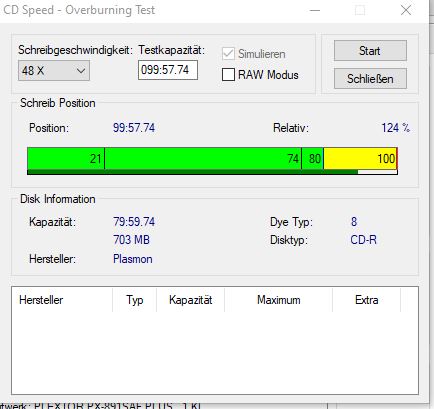

The Plextor Supports 100Min. CD-R

[Kirby]

Exact Audio Copy Test:

PLEXTOR PXL-910S Adapter: 1 ID: 2

Readmode : Secure
Accurate Stream : Yes
Audio Puffer abgeschaltet : Yes
Use C2 Error Correction : No - but the Burner supports C2 Error Correction

TOC of the CD

Track | Start | Länge | Startsektor | Endsektor
-------------------------------------------------------
1 | 0:00.00 | 2:58.52 | 0 | 13401
2 | 2:58.52 | 3:43.53 | 13402 | 30179
3 | 6:42.30 | 3:46.52 | 30180 | 47181
4 | 10:29.07 | 3:54.53 | 47182 | 64784
5 | 14:23.60 | 3:10.15 | 64785 | 79049
6 | 17:34.00 | 3:37.22 | 79050 | 95346
7 | 21:11.22 | 2:44.30 | 95347 | 107676
8 | 23:55.52 | 3:15.30 | 107677 | 122331
9 | 27:11.07 | 4:58.68 | 122332 | 144749
10 | 32:10.00 | 2:43.52 | 144750 | 157026
11 | 34:53.52 | 3:20.45 | 157027 | 172071
12 | 38:14.22 | 2:12.71 | 172072 | 182042


Track | CTDB Status
1 | (53/54) Accurately ripped
2 | (54/54) Accurately ripped
3 | (54/54) Accurately ripped
4 | (54/54) Accurately ripped
5 | (54/54) Accurately ripped
6 | (53/54) Accurately ripped
7 | (54/54) Accurately ripped
8 | (54/54) Accurately ripped
9 | (54/54) Accurately ripped
10 | (54/54) Accurately ripped
11 | (54/54) Accurately ripped
12 | (54/54) Accurately ripped

CRC is Equal to the Database.

[Kirby]

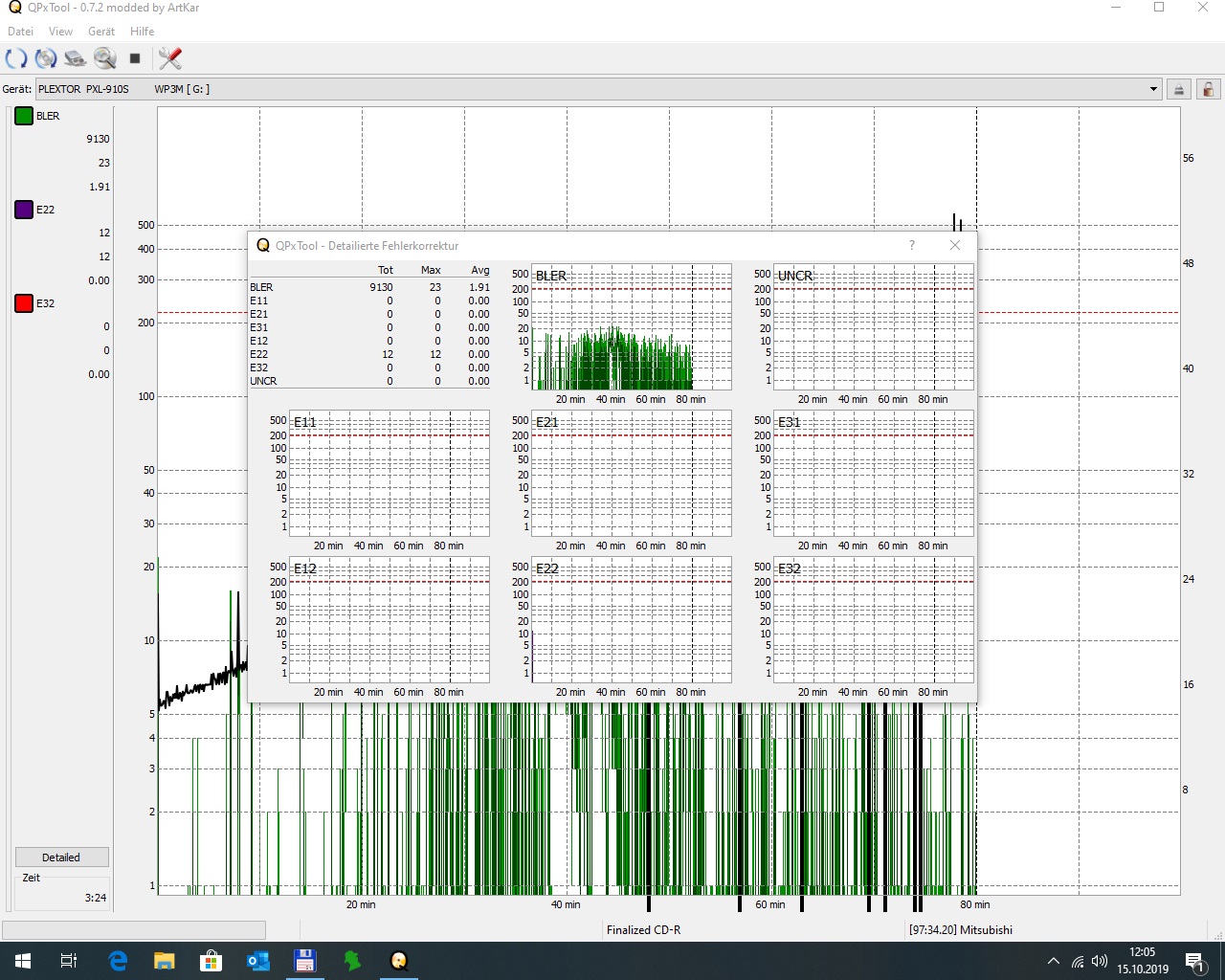

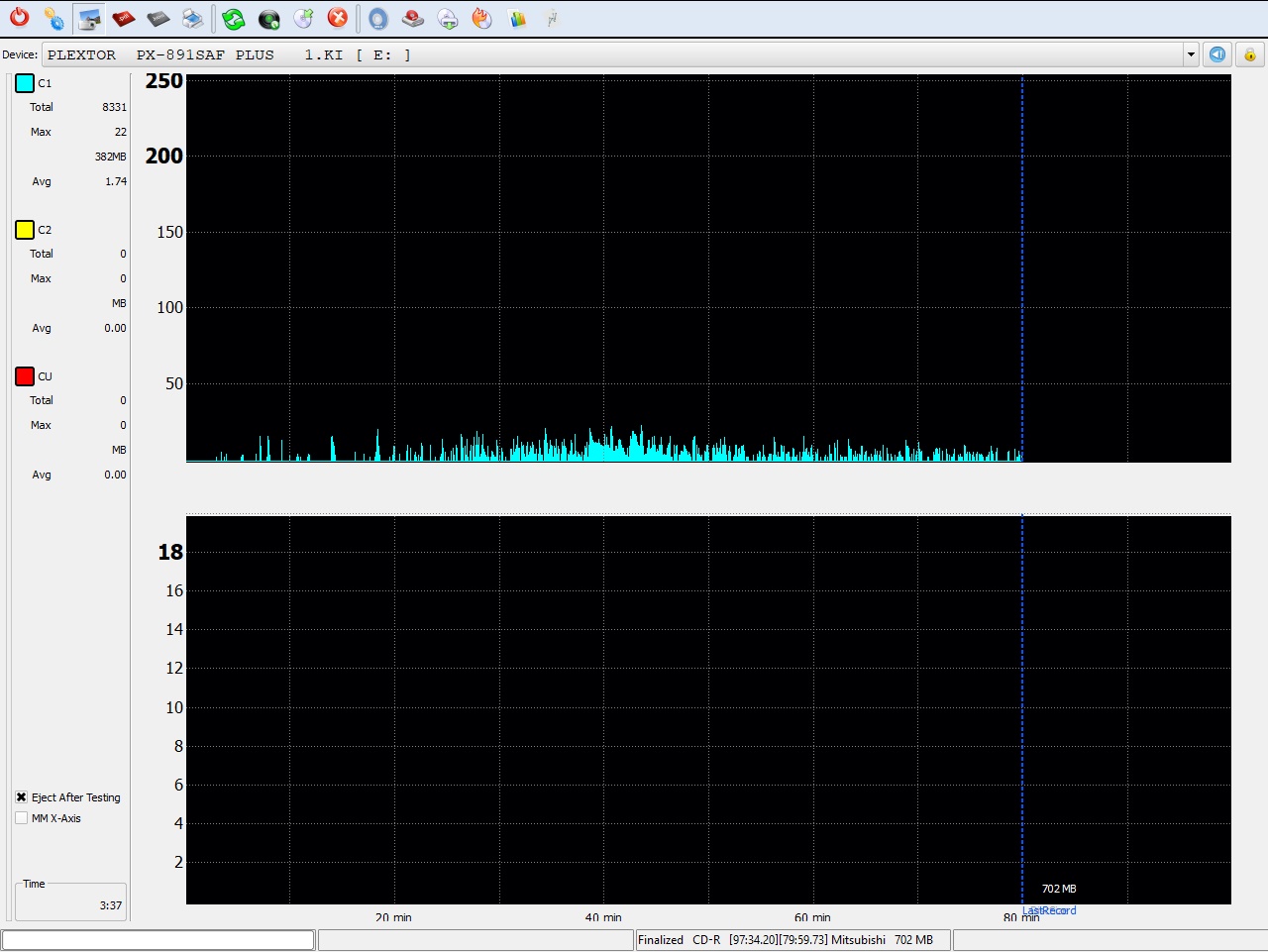

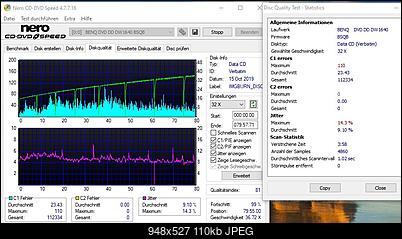

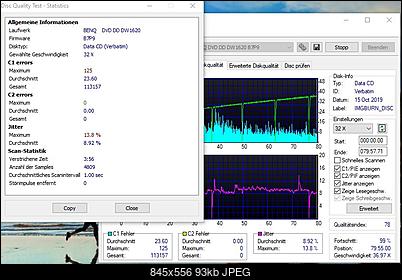

Verbatim CD-R Printable 52x burned at 32x(max supported for this Disc):

Disctype: : CD-R
Hersteller: : Verbatim
MID : 97m34s23f
Schreibgeschwindigkeiten: : 16 X - 24 X - 32 X
Kapazität: : 79:59.73
: 703 MB
Erweiterte Informationen
Verwendung : General
Status der Disk : leer
RAW Daten
ATIP
0000 - C0 00 98 00 61 22 17 00 4F 3B 49 00 00 00 80 00 - ....a"..O;I.....
0010 - 00 80 00 00 00 80 80 00 - ........

[Kirby]

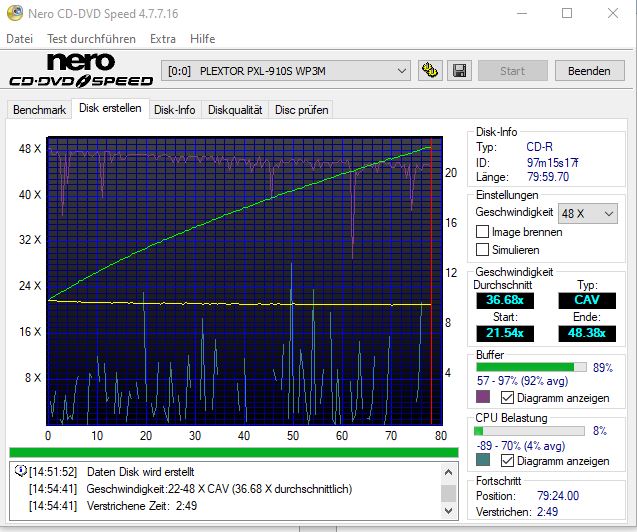

Now a PRIMEON Black Vinyl Disc

[Kirby]

I 16:26:54 Source File: -==/\/[DISCOVERY IMAGE]\/\==-
I 16:26:54 Source File Sectors: 2.297.888 (MODE1/2048)
I 16:26:54 Source File Size: 4.706.074.624 bytes
I 16:26:54 Source File Volume Identifier: IMGBURN_DISCOVERY_IMAGE
I 16:26:54 Source File Volume Set Identifier: 2297888_SECTORS
I 16:26:54 Source File Application Identifier: IMGBURN V2.5.8.0 - THE ULTIMATE IMAGE BURNER!
I 16:26:54 Source File Implementation Identifier: ImgBurn v2.5.8.0
I 16:26:54 Source File File System(s): ISO9660
I 16:26:54 Destination Device: [0:0:0] PLEXTOR PXL-910S WP3M (G)
I 16:26:54 Destination Media Type: DVD-R (Disc ID: TYG03)
I 16:26:54 Destination Media Supported Write Speeds: 6x; 8x; 12x; 16x
I 16:26:54 Destination Media Sectors: 2.297.888
I 16:26:54 Write Mode: DVD
I 16:26:54 Write Type: DAO
I 16:26:54 Write Speed: 12x
I 16:26:54 Link Size: Auto
I 16:26:55 Lock Volume: Yes
I 16:26:55 Test Mode: No
I 16:26:55 OPC: No
I 16:26:55 BURN-Proof: Enabled
I 16:26:55 Write Speed Successfully Set! - Effective: 16.620 KB/s (12x)
I 16:26:55 Filling Buffer... (80 MiB)
I 16:26:56 Writing LeadIn...
I 16:27:25 Writing Session 1 of 1... (1 Track, LBA: 0 - 2297887)
I 16:27:25 Writing Track 1 of 1... (MODE1/2048, LBA: 0 - 2297887)
I 16:34:07 Synchronising Cache...
I 16:34:13 Exporting Graph Data...
I 16:34:13 Export Successfully Completed!
I 16:34:13 Operation Successfully Completed! - Duration: 00:07:19
I 16:34:14 Average Write Rate: 11.432 KiB/s (8.5x) - Maximum Write Rate: 16.473 KiB/s (12.2x)

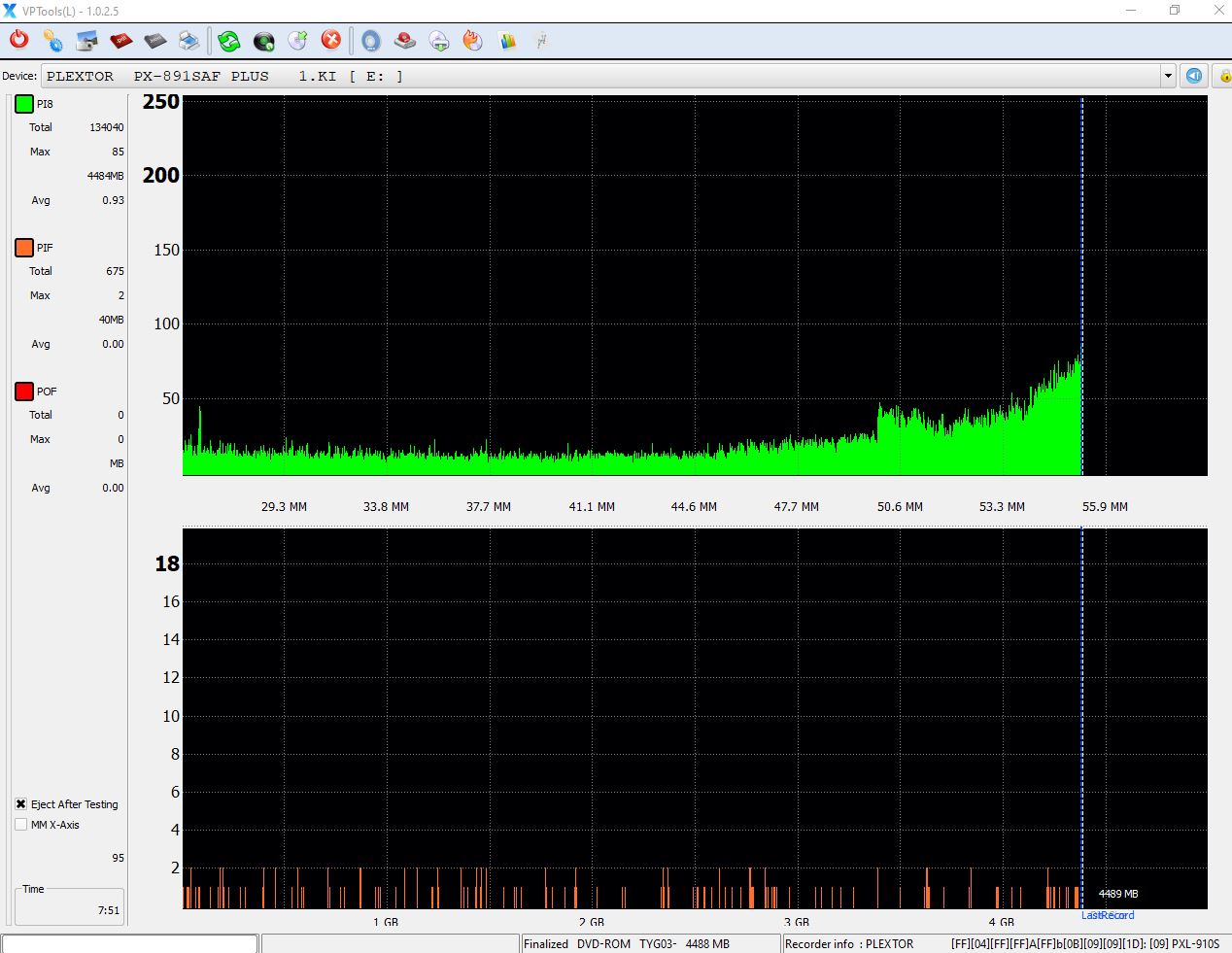

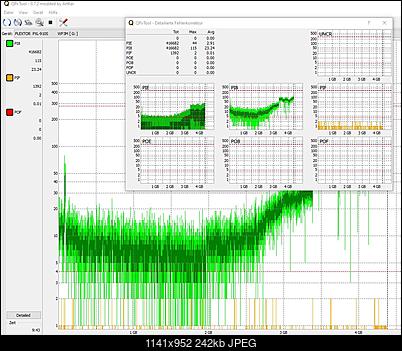

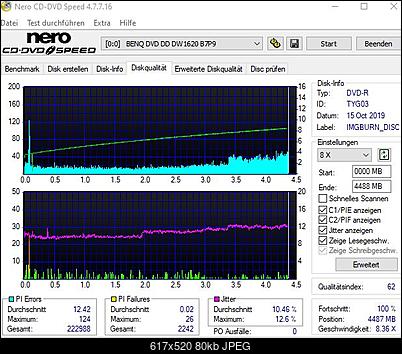

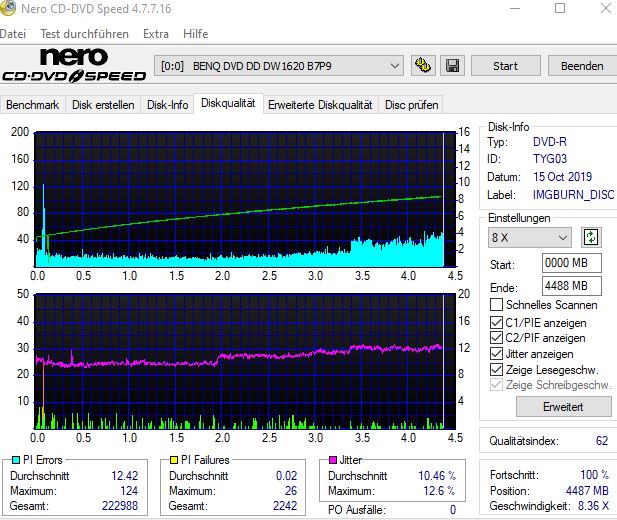

Scan @ Plextor PXL-910S 8x

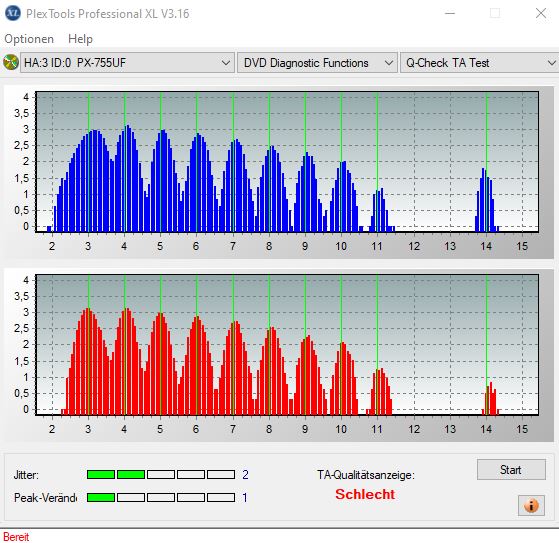

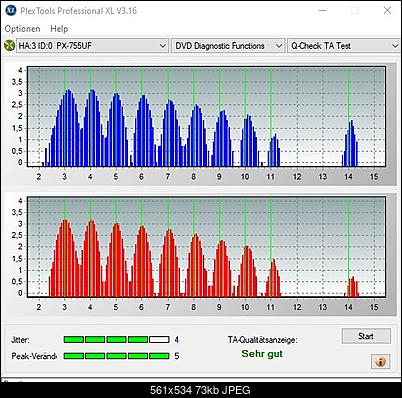

Q-Check on Plextor PX-755UF

[misiozol]

Thx for sharing

[Kirby]

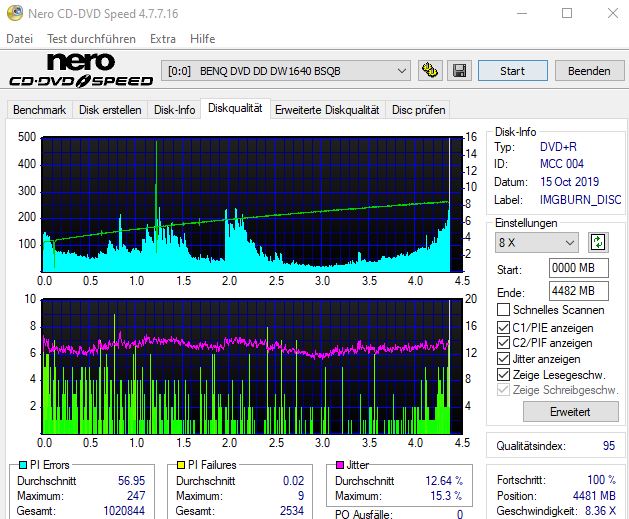

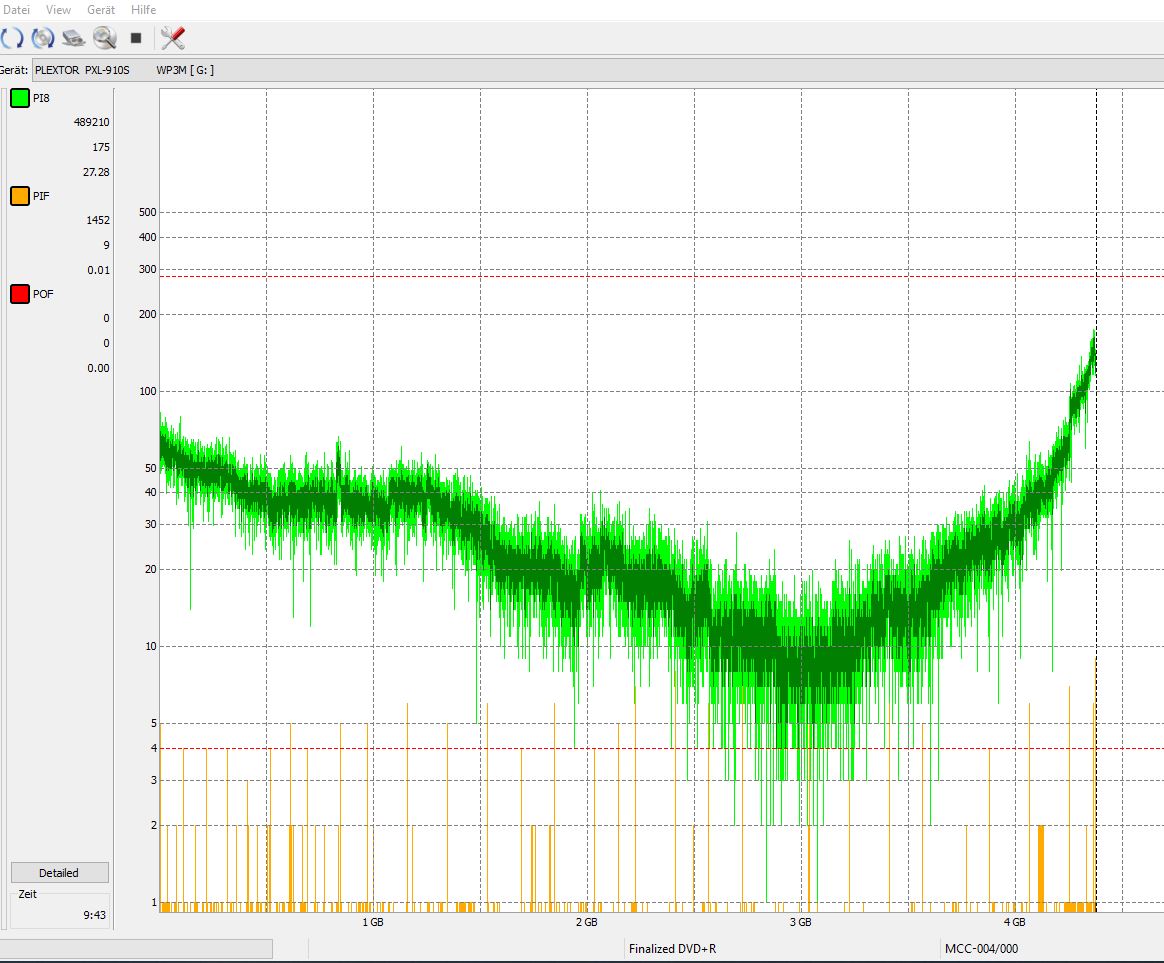

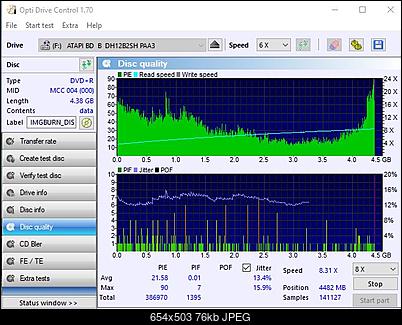

Checking Verbatim MCC004 burned at 12x on Plextor PXL-910S Professional

[Kirby]

Napisany przez misiozol

Thx for sharing

No Problem - This is a great Forum

[Kirby]

AML003

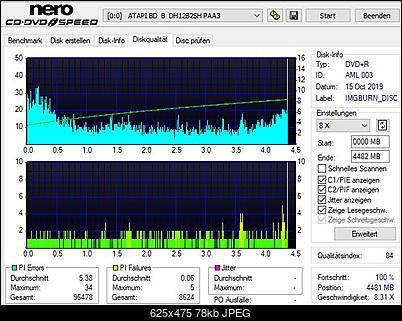

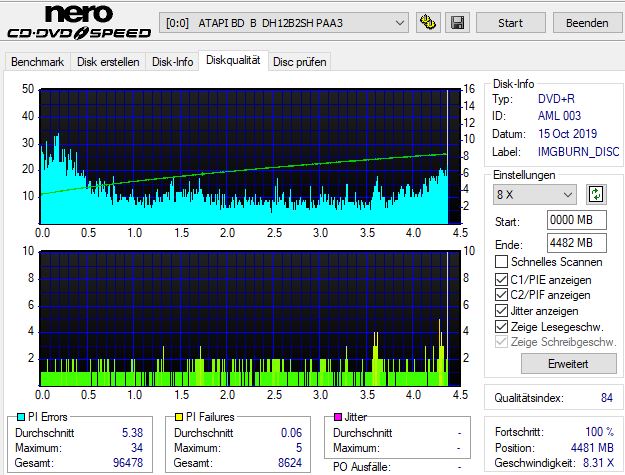

Scan LiteON DH12B2SH at 8x

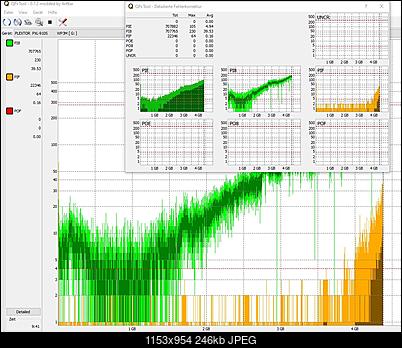

Scan Plextor PXL910S at 8x

[Kirby]

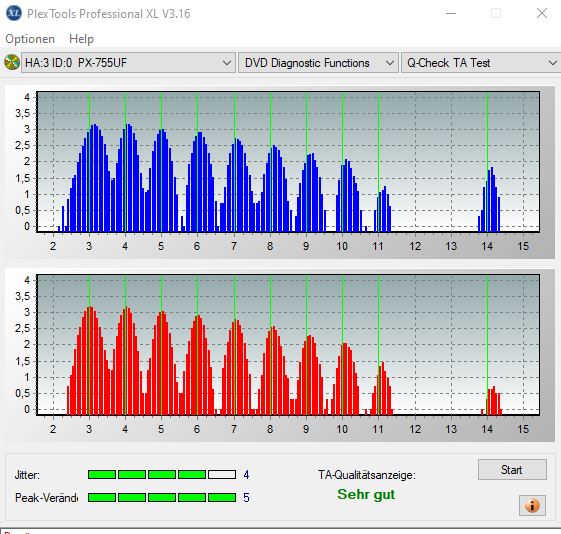

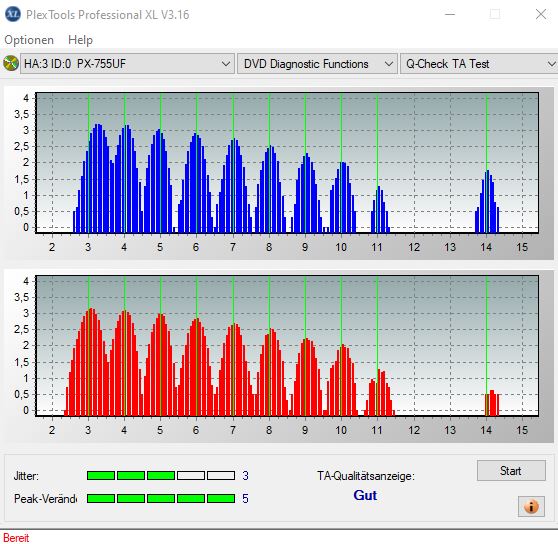

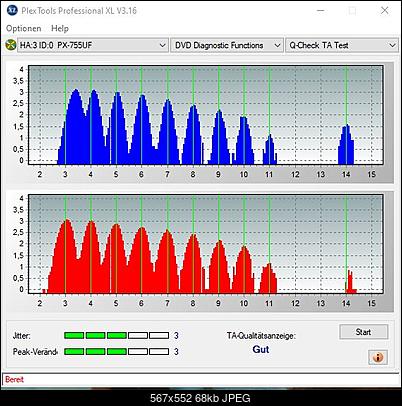

Here is the Q-Check:

[Kirby]

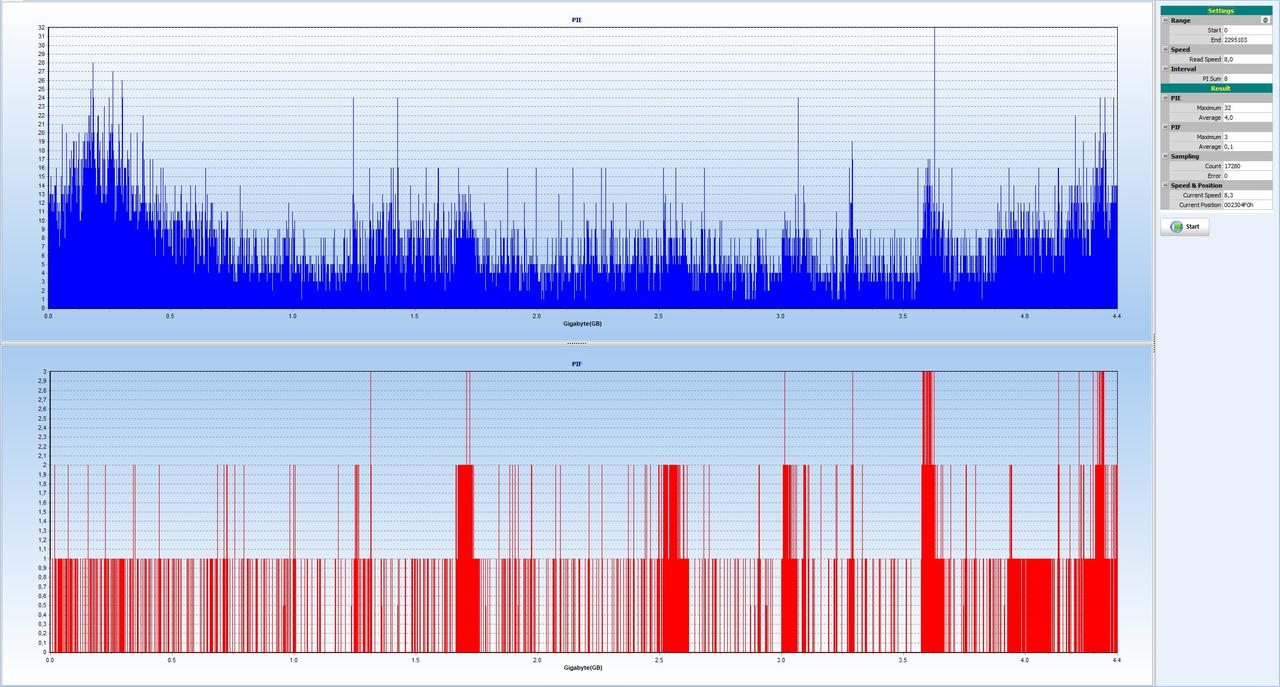

Surface Scan and BLER

For any Questions about the Burner or the Scans, write down here***8230;

Greetings
Kirby

Special thanks to "czary2mary" & "blackened2687" - for all your help here.

[jadburner]

Thank you for the tests, Kirby.

I have the same drive, and took some additional photos:

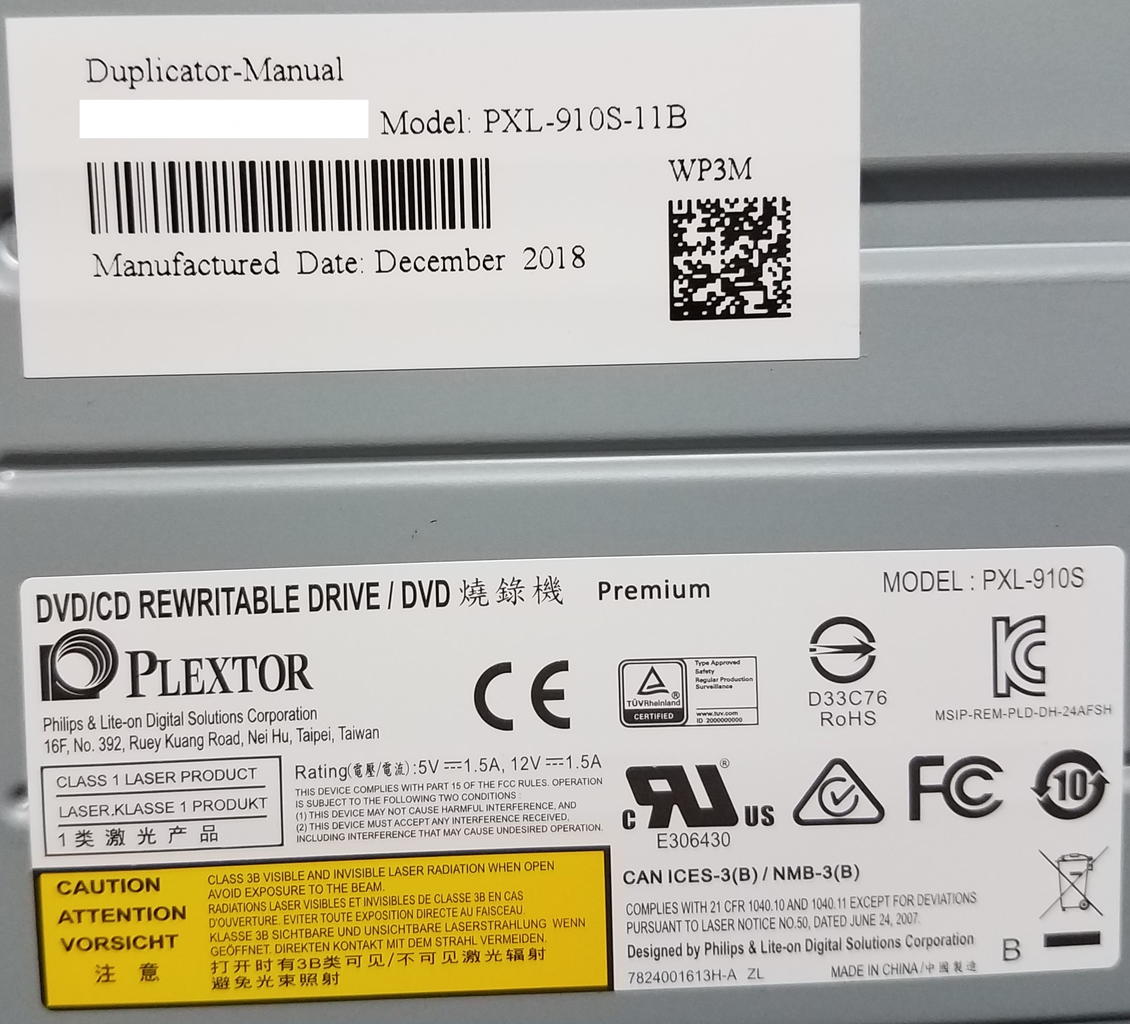

Label 1.jpg

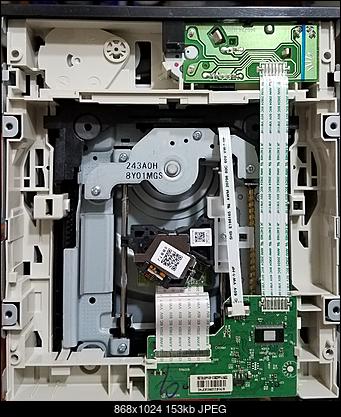

Inside 01.jpg

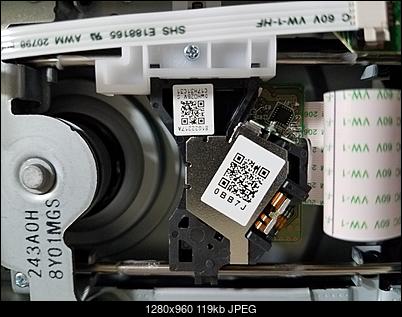

Inside 02.jpg

Inside 03.jpg

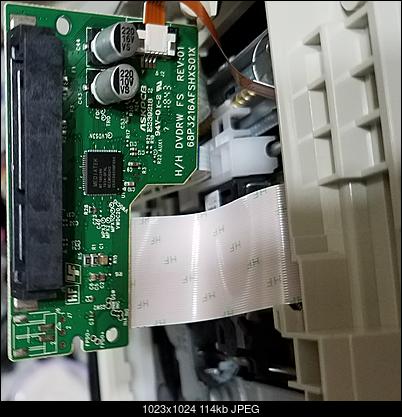

Inside 04.jpg

[czary2mary]

@Kirby \ @jadburner

Hardware design PLDS DH24AFSH PLUS identical to Plextor PX- 891SAF Plus \ Optiarc AD-5290 Plus \ PioData DVR-221DBK Plus \ LiteOn DH16AFSH Premium
