Stary 11.10.2026, 20:24   #1
Flowery
Zarejestrowany

Data rejestracji: 28.09.2026
Posty: 21
Flowery w tym momencie nie ma Reputacji dodatnich ani ujemnych <0  pkt>
It's great to have a tool available to anyone. Free of charge and even open source!

Thanks Matt for your continued stability, quality of life and feature updates!
Flowery jest online   Odpowiedz cytując ten post
Stary 11.10.2026, 21:01   #2
cashkey1
Stały bywalec ;)

Data rejestracji: 25.01.2025
Posty: 139
cashkey1 w tym momencie nie ma Reputacji dodatnich ani ujemnych <0  pkt>
And i DEFINATELY support your OpenSource and free firmware database buddy!!
Keep it flowing!!
the idea of getting my XD05 to be a XD08 shows that your on the right path!!
who would have even "Tinkered with that"
your free flasher has "Moved Mountains"
yahoooooooo!!!
cashkey1 jest offline   Odpowiedz cytując ten post
Stary 11.10.2026, 22:49   #3
Stingray
Stały bywalec ;)

Data rejestracji: 12.02.2024
Posty: 182
Stingray zaczyna zdobywać reputację <1 - 49 pkt>
As I expected, it is impossible to reflash the S05XLB to the 206/S06 firmware. Not that it is necessary, though; I compared the media lists and found that the list for the S05 (firmware 1.12) is more extensive than the one for the 206 (firmware 1.06).




[pioneer.flash.update]: Initial flash pass failed: [pioneer.transfer.transfer]: OEM Kernel write failed at offset 0x10000, length 4608 — the drive may now hold a partial firmware; re-flash the captured pre-flash backup to restore it: SCSI transport failure on \\.\CdRom6: E4000: 0x3b/0x02/0x00/0x00/0x00 (cdb=[3b, 07, fe, 01, 00, 00, 00, 12, 00, 00], direction=ToDevice, requested=4608, attempt=1)

..
Recovery could not finish
Recovery could not identify the selected drive; no firmware written: SCSI transport failure on \\.\CdRom6: E4000: 0x12/0xff (cdb=[12, 00, 00, 00, 24, 00], direction=FromDevice, requested=36, attempt=1)


but after switch off|on the drive - it has been recovered to S05XLB

Ostatnio zmieniany przez Stingray : 11.10.2026 o godz. 23:01
Stingray jest offline   Odpowiedz cytując ten post
Stary 11.10.2026, 23:08   #4
mattjackson
Stały bywalec ;)

Data rejestracji: 29.09.2026
Posty: 146
mattjackson zaczyna zdobywać reputację <1 - 49 pkt>
Oof you buried the lead at the bottom of the post. any more flash failures please say it has a happy ending earlier on lol




Ill analyze this scenario and see how to improve the matching logic further.
mattjackson jest offline   Odpowiedz cytując ten post
Stary 11.10.2026, 23:32   #5
Coopervid
Zarejestrowany

Avatar użytkownika Coopervid

Data rejestracji: 04.09.2024
Posty: 69
Coopervid w tym momencie nie ma Reputacji dodatnich ani ujemnych <0  pkt>
Hi Matt,

I appreciate your work. Believe me. But this forum is highly influenced by "burning disc believers".

Burning discs is outdated. You should store on HDD and save your drive for reading. Burning will shorten the lifetime of the laser.

Pioneer was just doing a marketing job over the last years. You can tell by flashing XD05 to XD06 worked. Then as well to XD08. Now think about it. XD08 is most likely a XD05 with most likely some value engineering between it. Making the drives less cost.

I have seen here in the forum that the best burns were with a 206. All newer were just "good enough" following the value engineering.

Then let's address the Pioneer utility that gives you options older drives didn't have. Again marketing. All the burning options turned out to be worse than the standard.

PureRead 3 / 4. Forget about it. If you want to rip audio use EAC ( Exact Audio Copy) and there are even better (older) drives to do that.

Silent audio mode. Who plays audio CDs from a computer? Most likely the fan is noisier than the drive. Audio freaks use standalone players which do a much better job.

Saving on disc. Yes, HDDs have become more expensive but only BdR25 can compete in that price range. BDR50 have an issue at the layer break most of the time. Uncompetitive and only programs like the new fork of TSMUXer can prevent issues at the layer break with "layer guard".

Believe me. I'm a great believer in "better safe than sorry". This forum has a lot of freaks who are computer savvy. Many other users are not. Therefore my warnings. Otherwise: Excellent job!
Coopervid jest offline   Odpowiedz cytując ten post
Stary 12.10.2026, 19:38   #6
misiozol
Moderator

Avatar użytkownika misiozol

Data rejestracji: 26.10.2008
Lokalizacja: Carnew
Posty: 6,966
misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>misiozol jest wybitnie uzdolniony i zna sie rzeczowo na sprawach <1500 - 1999 pkt>
Cytat:
Napisany przez Coopervid Podgląd Wiadomości
Hi Matt,

I appreciate your work. Believe me. But this forum is highly influenced by "burning disc believers".

Burning discs is outdated. You should store on HDD and save your drive for reading. Burning will shorten the lifetime of the laser.

Pioneer was just doing a marketing job over the last years. You can tell by flashing XD05 to XD06 worked. Then as well to XD08. Now think about it. XD08 is most likely a XD05 with most likely some value engineering between it. Making the drives less cost.

I have seen here in the forum that the best burns were with a 206. All newer were just "good enough" following the value engineering.

Then let's address the Pioneer utility that gives you options older drives didn't have. Again marketing. All the burning options turned out to be worse than the standard.

PureRead 3 / 4. Forget about it. If you want to rip audio use EAC ( Exact Audio Copy) and there are even better (older) drives to do that.

Silent audio mode. Who plays audio CDs from a computer? Most likely the fan is noisier than the drive. Audio freaks use standalone players which do a much better job.

Saving on disc. Yes, HDDs have become more expensive but only BdR25 can compete in that price range. BDR50 have an issue at the layer break most of the time. Uncompetitive and only programs like the new fork of TSMUXer can prevent issues at the layer break with "layer guard".

Believe me. I'm a great believer in "better safe than sorry". This forum has a lot of freaks who are computer savvy. Many other users are not. Therefore my warnings. Otherwise: Excellent job!
You concerns have been noted, now please leave them be
__________________
Reballing, BGA, Reflow, Service of all consoles and devices. Based in IRELAND for all your needs.
misiozol jest offline   Odpowiedz cytując ten post
Stary 14.10.2026, 00:34   #7
mattjackson
Stały bywalec ;)

Data rejestracji: 29.09.2026
Posty: 146
mattjackson zaczyna zdobywać reputację <1 - 49 pkt>
0.12.0 is coming out later today, no change for pioneer. Should just have better MediaTek support for backing up and flashing. Im feeling Pioneer is quite stable and just looking to get MediaTek equally so.

Im looking at the cross flash "family" logic as I have 1-2 that don't seem to fit so digging into those.
mattjackson jest offline   Odpowiedz cytując ten post
Stary 14.10.2026, 02:09   #8
mattjackson
Stały bywalec ;)

Data rejestracji: 29.09.2026
Posty: 146
mattjackson zaczyna zdobywać reputację <1 - 49 pkt>
So 2 known (correct me if there are more) matching hardware families that seem to be not flashable at this time:

S05XLB to 206/S06
207M to PR1ML


They match on hardware family but the issue seems to be that kernels are encoded differently. So the kernel on the drive expects the incoming kernel to be in format A but its actually in format B so it messes up.


I can already decode and re-encode these formats at will so I am going to try first looking at what format the kernel on the drive wants, then re-encoding the incoming to that format.


This should allow these to then be flashed. Again, as always, at your own risk <blah blah blah>


Ill keep you posted

Ostatnio zmieniany przez mattjackson : 14.10.2026 o godz. 03:19
mattjackson jest offline   Odpowiedz cytując ten post
Stary 14.10.2026, 07:49   #9
mattjackson
Stały bywalec ;)

Data rejestracji: 29.09.2026
Posty: 146
mattjackson zaczyna zdobywać reputację <1 - 49 pkt>
0.12.1 due tomorrow should fix cross flashing pioneer firmware within the same hardware family.

S05XLB to 206/S06 and 207M to PR1ML should then work in Recover mode. I put it there for now until testing proves its solid to be moved to flash mode. Just as a safety gate but its not that crazy whats being done so after some testing it will just be part of flash and happen auto behind the scenes like any other flash.
mattjackson jest offline   Odpowiedz cytując ten post
Stary 14.10.2026, 23:33   #10
Stingray
Stały bywalec ;)

Data rejestracji: 12.02.2024
Posty: 182
Stingray zaczyna zdobywać reputację <1 - 49 pkt>

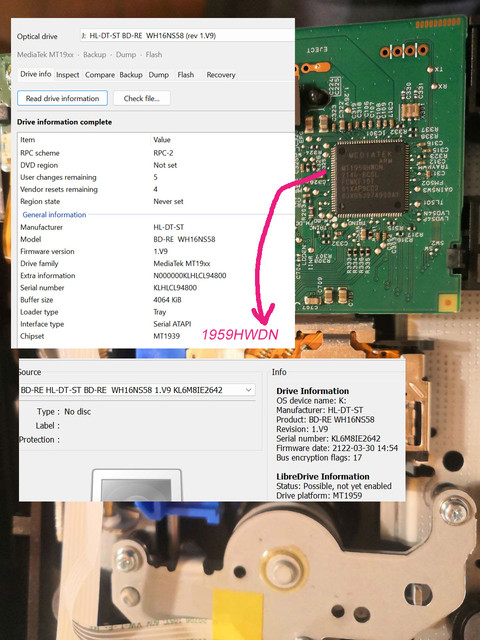

It's strange why does your program find 1939 here?
MT1959UWDN =1939
MT1959HWDN = 1959

Stingray jest offline   Odpowiedz cytując ten post
Stary 14.10.2026, 23:36   #11
mattjackson
Stały bywalec ;)

Data rejestracji: 29.09.2026
Posty: 146
mattjackson zaczyna zdobywać reputację <1 - 49 pkt>
Thats a good question Let me dig in

0.12.2 due today, found a regression in 0.12.1 the second i released it. typical. not harmful just not as useful.
mattjackson jest offline   Odpowiedz cytując ten post
Stary 14.10.2026, 23:55   #12
Stingray
Stały bywalec ;)

Data rejestracji: 12.02.2024
Posty: 182
Stingray zaczyna zdobywać reputację <1 - 49 pkt>
Cytat:
Napisany przez mattjackson Podgląd Wiadomości

0.12.2
thank you. but err log the same:

...[ 3.870s] SCSI execute: device="\\\\.\\CdRom2" cdb=[3c, 06, 00, 1f, 70, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 timeout_ms=30000
[ 3.875s] SCSI incoming data: reported=Some(4096) buffer_bytes=4096 inspected_bytes=4096 sha256=f47a8ec3e9aff2318d896942282ad4fe37d6391c829 14f54a5da8a37de1300c6 count_known=true status_ok=true
[ 3.875s] SCSI result: status=0x00 transferred=4096 sense=[00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00] elapsed_ms=5
[ 3.875s] SCSI request: device=\\.\CdRom2 cdb=[3c, 06, 00, 1f, 80, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 attempt=1 strict=false timeout_ms=30000
[ 3.875s] SCSI execute: device="\\\\.\\CdRom2" cdb=[3c, 06, 00, 1f, 80, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 timeout_ms=30000
[ 3.879s] SCSI incoming data: reported=Some(4096) buffer_bytes=4096 inspected_bytes=4096 sha256=5e4c78746fd3d4d452e997c199cf05e64bfbf388823 f989c4c4aa4d19cb8f1e1 count_known=true status_ok=true
[ 3.879s] SCSI result: status=0x00 transferred=4096 sense=[00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00] elapsed_ms=3
[ 3.879s] SCSI request: device=\\.\CdRom2 cdb=[3c, 06, 00, 1f, 90, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 attempt=1 strict=false timeout_ms=30000
[ 3.879s] SCSI execute: device="\\\\.\\CdRom2" cdb=[3c, 06, 00, 1f, 90, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 timeout_ms=30000
[ 3.882s] SCSI incoming data: reported=Some(4096) buffer_bytes=4096 inspected_bytes=4096 sha256=9e5a57f5f6567951bfc6c8165d41e20b1bc665943a6 9406a744530bfe1701a14 count_known=true status_ok=true
[ 3.882s] SCSI result: status=0x00 transferred=4096 sense=[00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00] elapsed_ms=3
[ 3.882s] SCSI request: device=\\.\CdRom2 cdb=[3c, 06, 00, 1f, a0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 attempt=1 strict=false timeout_ms=30000
[ 3.882s] SCSI execute: device="\\\\.\\CdRom2" cdb=[3c, 06, 00, 1f, a0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 timeout_ms=30000
[ 3.886s] SCSI incoming data: reported=Some(4096) buffer_bytes=4096 inspected_bytes=4096 sha256=ab102825e15b21c975d0eebcadd0a0b4b1608646c85 354b02c03333e9aca3e3d count_known=true status_ok=true
[ 3.886s] SCSI result: status=0x00 transferred=4096 sense=[00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00] elapsed_ms=3
[ 3.886s] Progress { label: "reading drive memory", done: 2076672, total: 2097152 }
[ 3.886s] SCSI request: device=\\.\CdRom2 cdb=[3c, 06, 00, 1f, b0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 attempt=1 strict=false timeout_ms=30000
[ 3.886s] SCSI execute: device="\\\\.\\CdRom2" cdb=[3c, 06, 00, 1f, b0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 timeout_ms=30000
[ 3.889s] SCSI incoming data: reported=Some(4096) buffer_bytes=4096 inspected_bytes=4096 sha256=7554b71897ef574e3ff3f5124f2d38a48baa1671d21 7d54bfc9d60785b53ec11 count_known=true status_ok=true
[ 3.889s] SCSI result: status=0x00 transferred=4096 sense=[00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00] elapsed_ms=3
[ 3.889s] SCSI request: device=\\.\CdRom2 cdb=[3c, 06, 00, 1f, c0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 attempt=1 strict=false timeout_ms=30000
[ 3.889s] SCSI execute: device="\\\\.\\CdRom2" cdb=[3c, 06, 00, 1f, c0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 timeout_ms=30000
[ 3.893s] SCSI incoming data: reported=Some(4096) buffer_bytes=4096 inspected_bytes=4096 sha256=8a153d497e50c8a4f4f96df3175279db1d266b08c9e d7668df9e9fbe996bb970 count_known=true status_ok=true
[ 3.893s] SCSI result: status=0x00 transferred=4096 sense=[00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00] elapsed_ms=3
[ 3.893s] SCSI request: device=\\.\CdRom2 cdb=[3c, 06, 00, 1f, d0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 attempt=1 strict=false timeout_ms=30000
[ 3.893s] SCSI execute: device="\\\\.\\CdRom2" cdb=[3c, 06, 00, 1f, d0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 timeout_ms=30000
[ 3.898s] SCSI incoming data: reported=Some(4096) buffer_bytes=4096 inspected_bytes=4096 sha256=a1456cb0d372e6ffbb24f889bc42cea052a76e00a03 98c2bf845275d60f23d8d count_known=true status_ok=true
[ 3.898s] SCSI result: status=0x00 transferred=4096 sense=[00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00] elapsed_ms=5
[ 3.898s] SCSI request: device=\\.\CdRom2 cdb=[3c, 06, 00, 1f, e0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 attempt=1 strict=false timeout_ms=30000
[ 3.898s] SCSI execute: device="\\\\.\\CdRom2" cdb=[3c, 06, 00, 1f, e0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 timeout_ms=30000
[ 3.904s] SCSI incoming data: reported=Some(4096) buffer_bytes=4096 inspected_bytes=4096 sha256=f47a8ec3e9aff2318d896942282ad4fe37d6391c829 14f54a5da8a37de1300c6 count_known=true status_ok=true
[ 3.904s] SCSI result: status=0x00 transferred=4096 sense=[00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00] elapsed_ms=5
[ 3.904s] SCSI request: device=\\.\CdRom2 cdb=[3c, 06, 00, 1f, f0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 attempt=1 strict=false timeout_ms=30000
[ 3.904s] SCSI execute: device="\\\\.\\CdRom2" cdb=[3c, 06, 00, 1f, f0, 00, 00, 10, 00, 00] direction=FromDevice requested=4096 timeout_ms=30000
[ 3.909s] SCSI incoming data: reported=Some(4096) buffer_bytes=4096 inspected_bytes=4096 sha256=f47a8ec3e9aff2318d896942282ad4fe37d6391c829 14f54a5da8a37de1300c6 count_known=true status_ok=true
[ 3.909s] SCSI result: status=0x00 transferred=4096 sense=[00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00, 00] elapsed_ms=5
[ 3.909s] Progress { label: "reading drive memory", done: 2097152, total: 2097152 }
[ 3.910s] RESULT: error: backup needs every firmware byte, but read 65536 of 2097152; unreadable ranges [
(
0x0,
0x1f0000,
),
]. `dump` saves what the drive returned
Stingray jest offline   Odpowiedz cytując ten post
Stary 15.10.2026, 00:05   #13
Oinker
Stały bywalec ;)

Data rejestracji: 08.11.2022
Lokalizacja: Niemcy
Posty: 105
Oinker zaczyna zdobywać reputację <1 - 49 pkt>
Is 1.V9 available anywhere? And is it recommended? It it downgradable to e.g. 1.V1 (encryption?)?
Oinker jest offline   Odpowiedz cytując ten post
Stary 15.10.2026, 00:17   #14
Stingray
Stały bywalec ;)

Data rejestracji: 12.02.2024
Posty: 182
Stingray zaczyna zdobywać reputację <1 - 49 pkt>
Cytat:
Napisany przez Oinker Podgląd Wiadomości
Is 1.V9 available anywhere? And is it recommended? It it downgradable to e.g. 1.V1 (encryption?)?
as far as I remember I found this FW on this forum here Vinpower WH16NS58 1.V8 does not support disc quality check??!!!! Please help!. I do not know about it downgradable or not.
Stingray jest offline   Odpowiedz cytując ten post
Stary 15.10.2026, 00:12   #15
DavyCrockett
DavyCrockett

Data rejestracji: 27.09.2026
Lokalizacja: USA
Posty: 4
DavyCrockett w tym momencie nie ma Reputacji dodatnich ani ujemnych <0  pkt>
Some LG drives have the mt1959 chip physically inside in them but report as mt1939. Trust the report in makemkv that says 1939 and do not flash!!!
DavyCrockett jest online   Odpowiedz cytując ten post
